Brake Proportioning/Combination Valve: Service and Repair

DUAL PROPORTIONING VALVE

Removal and Installation

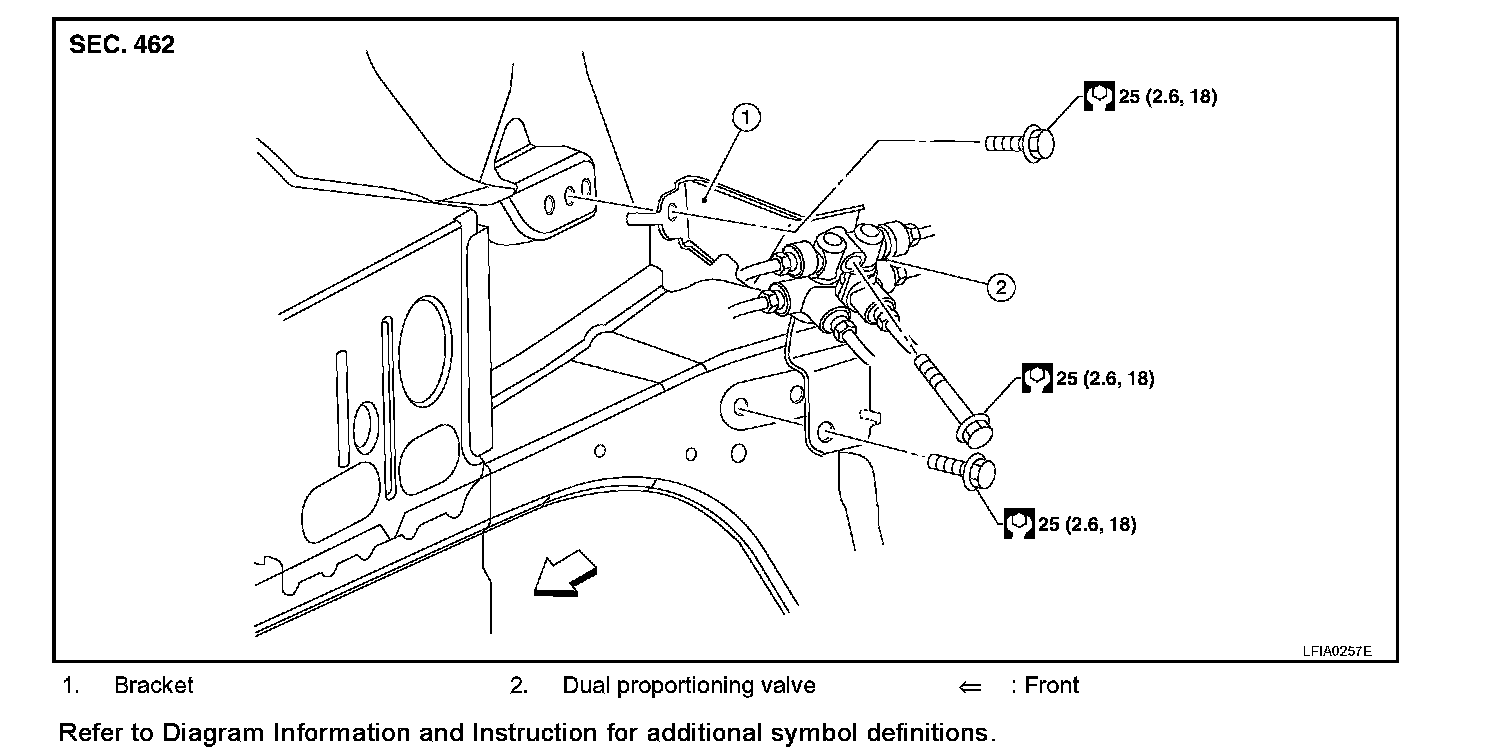

Exploded View BR-14:

REMOVAL
1. Disconnect brake lines from dual proportioning valve.
^ Mark brake lines for installation.
2. Remove dual proportioning valve bolt and dual proportioning valve.
3. Remove two bolts and bracket.

INSTALLATION
Installation is in the reverse order of removal.
^ When installing brake lines to the dual proportioning valve, tighten to specifications.
