Front

Front Brake Tube and Hose
REMOVAL





1. Drain brake fluid.
2. Using a flare nut wrench, remove brake tube from brake hose.
3. Remove union bolt, and remove brake hose from caliper assembly.
4. Remove lock plate, and remove brake hose from vehicle.

INSTALLATION

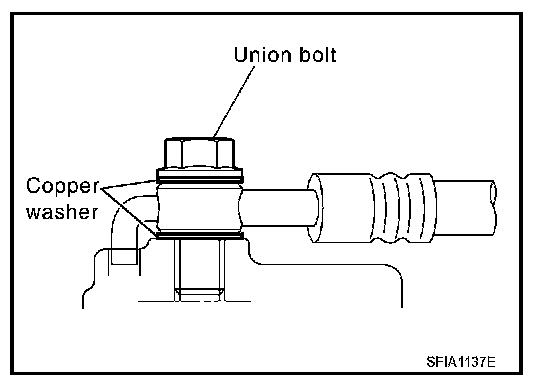

1. Assemble union bolt and copper washers to brake hose.





2. Position the L-shape metal fitting of the brake hose to the brake caliper assembly positioning hole.
3. Tighten union bolt to the specified torque.

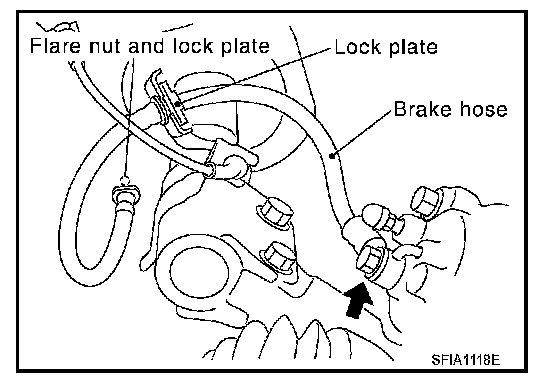

4. Connect brake hose to brake tube on vehicle, and temporarily tighten flare nut by hand as much as possible.
5. Secure it with lock plate.
6. Tighten flare nut to the specified torque with a flare nut torque wrench.
7. Install brake hose to vehicle, and tighten nuts to the specified torque.
8. Bleed air from brake system.
