Brake Shoe: Specifications

Brake Shoe

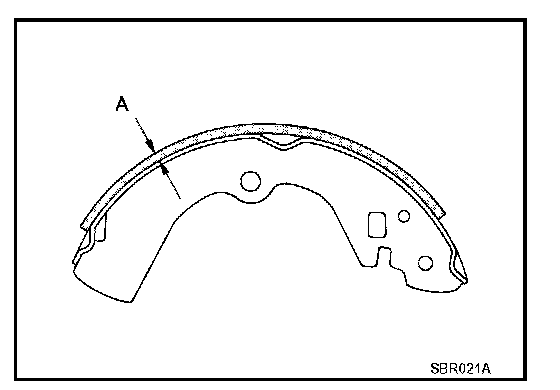

Standard thickness (A) 4.0 mm (0.157 in)
Repair limit thickness (A) 1.5 mm (0.059 in)
