Rear

DISC ROTOR INSPECTION

Visual Inspection
Check surface of the disc rotor for uneven wear, cracks, and serious damage. If any non-standard condition is detected, replace applicable part.

Runout Inspection
1. Using wheel nuts, fix disc rotor to the wheel hub in two or more positions.
2. Inspect runout using a dial gauge [At a point 10 mm (0.39 in)].

CAUTION: Before measuring, make sure the axle end play is 0 mm (0 in).

3. If runout is outside the limit, find the minimum runout point by shifting mounting positions of the disc rotor and wheel hub by one hole.

Thickness Inspection

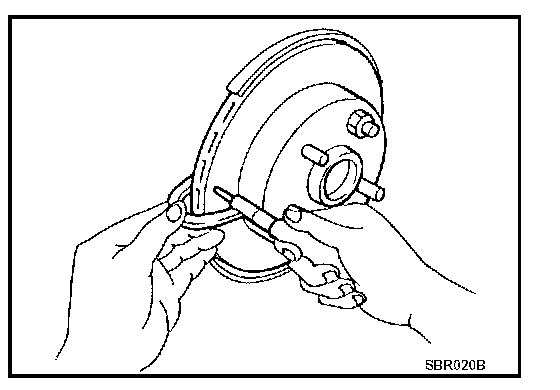

Using a micrometer, check thickness of the disc rotor. If thickness is not within specification, replace disc rotor.
