Rear

REAR DISC BRAKE

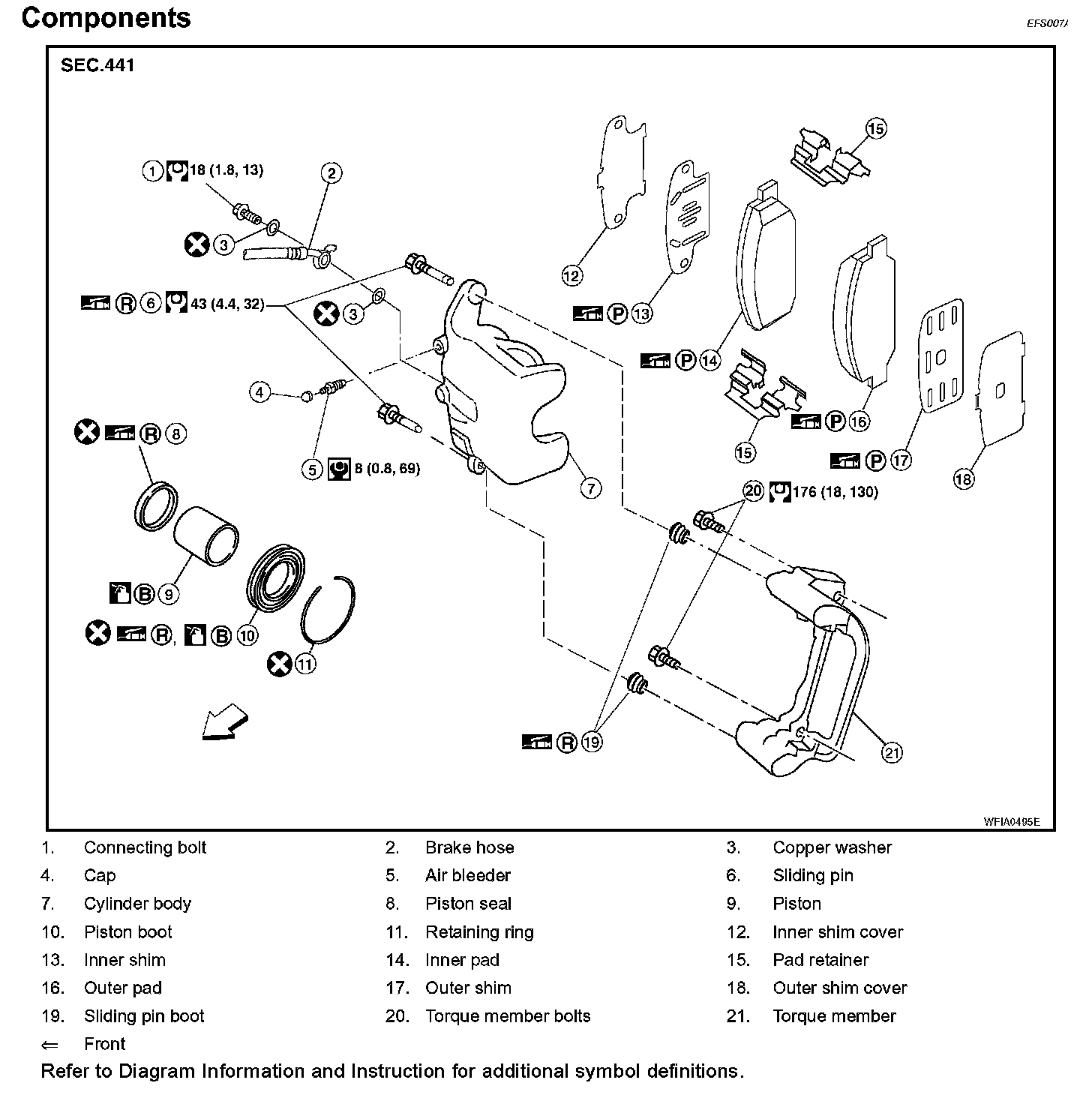

Exploded View BR-29:

Removal and Installation of Brake Pad
REMOVAL
1. Remove master cylinder reservoir cap.
2. Remove tires from vehicle with power tool.
3. Remove bottom sliding pin bolt.

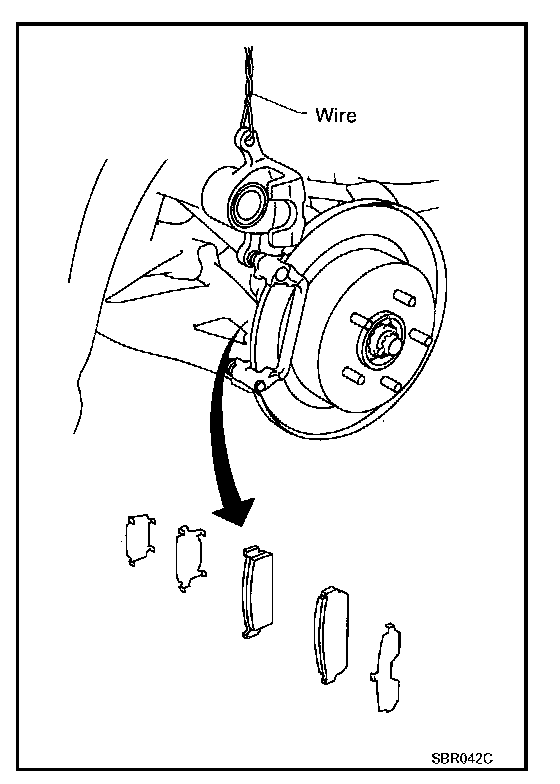

4. Hang cylinder body with a wire, and remove pads, pad retainers, shims from torque member.

INSTALLATION
1. Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease between pad plate and shim, shim and shim cover, and shim cover and piston.
2. Attach the inner shim and shim cover to the inner pad, and the outer shim and outer shim cover to the outer pad.
3. Attach the pad retainer and pad to the torque member.
4. Push the piston in so that the pad is firmly attached and attach the cylinder body to the torque member.

NOTE: Using a disc brake piston tool (commercial service tool), makes it easier to push in the piston.

CAUTION: By pushing in the piston, the brake fluid returns to the master cylinder reservoir tank. Watch the level of the surface of the reservoir tank.

5. Install the sliding pin bolt and tighten to the specified torque. Refer to Exploded View BR-29.
6. Inspect brake fluid level, then install master cylinder reservoir cap.
7. Check brake for drag.
8. Attach the tires to the vehicle.

CAUTION: Burnish the brake contact surfaces when refinishing or replacing brake rotors, after replacing pads or linings, or if a soft pedal occurs at very low mileage.
