Brake Pedal Assy: Service and Repair

BRAKE PEDAL

Removal and Installation

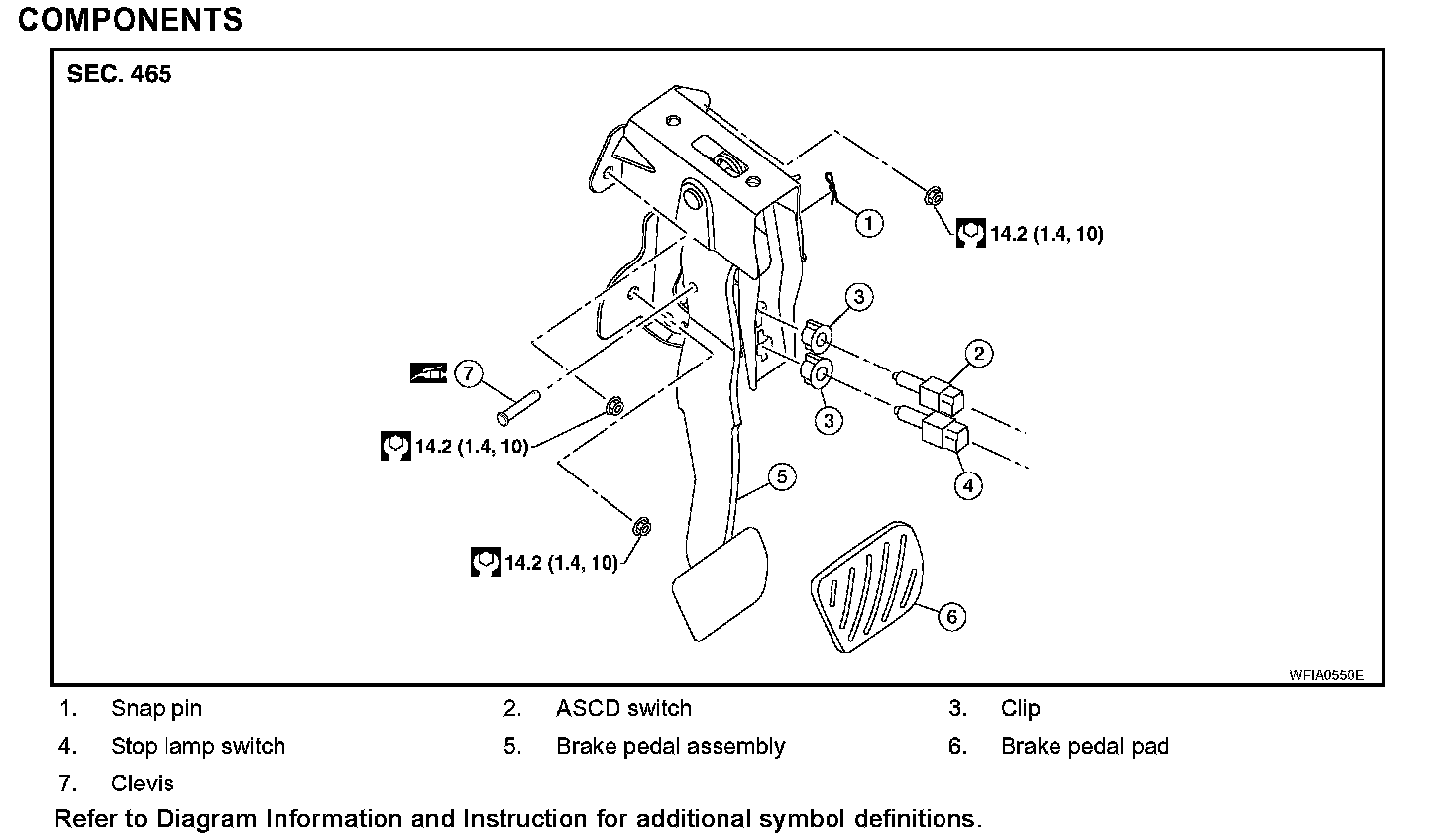

Exploded View BR-7:

REMOVAL





1. Disconnect accelerator pedal position sensor harness connector.
2. Remove stop lamp switch and ASCD switch (if equipped) from brake pedal assembly.

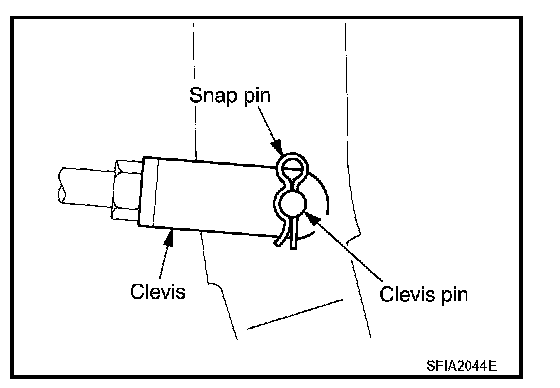

3. Remove snap pin and clevis pin from clevis of brake booster.
4. Remove nuts from brake pedal bracket, and remove brake pedal assembly from vehicle.
5. Remove accelerator pedal from brake pedal assembly.

INSPECTION AFTER REMOVAL
^ Check brake pedal for bend, damage, and cracks on the welded parts.
^ Replace brake pedal assembly if any non-standard condition is detected.

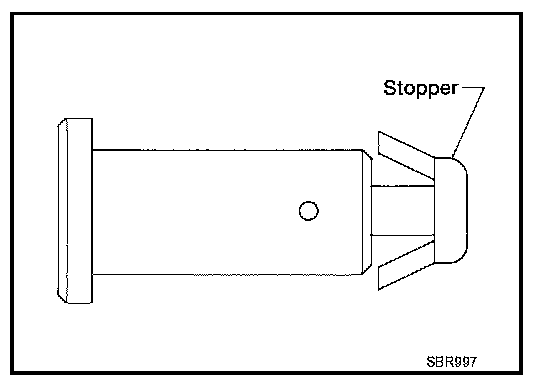

^ Check clevis pin and plastic stopper for damage and deformation. Replace clevis pin as necessary.

INSTALLATION
Installation is in the reverse order of the removal.
^ After installing brake pedal assembly to vehicle, adjust brake pedal.
^ After installing accelerator pedal, check accelerator pedal.
