Active Test

ACTIVE TEST

CAUTION:
^ Do not perform active test while driving.
^ Make sure to completely bleed air from the brake system.
^ The ABS and brake warning lamps turn on during the active test.

Solenoid Valve Operation Chart

Solenoid Valve Operation Chart:

NOTE:
^ If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
^ "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
^ After "TEST IS STOPPED" is displayed, to perform test again, reselect item to be tested.

ABS Motor

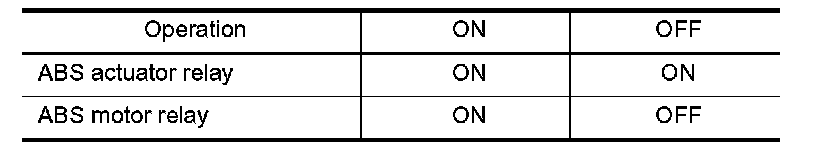

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in table.





NOTE:
^ If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
^ "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
