Pinout Values and Diagnostic Parameters

Control Unit Input/Output Signal Standard

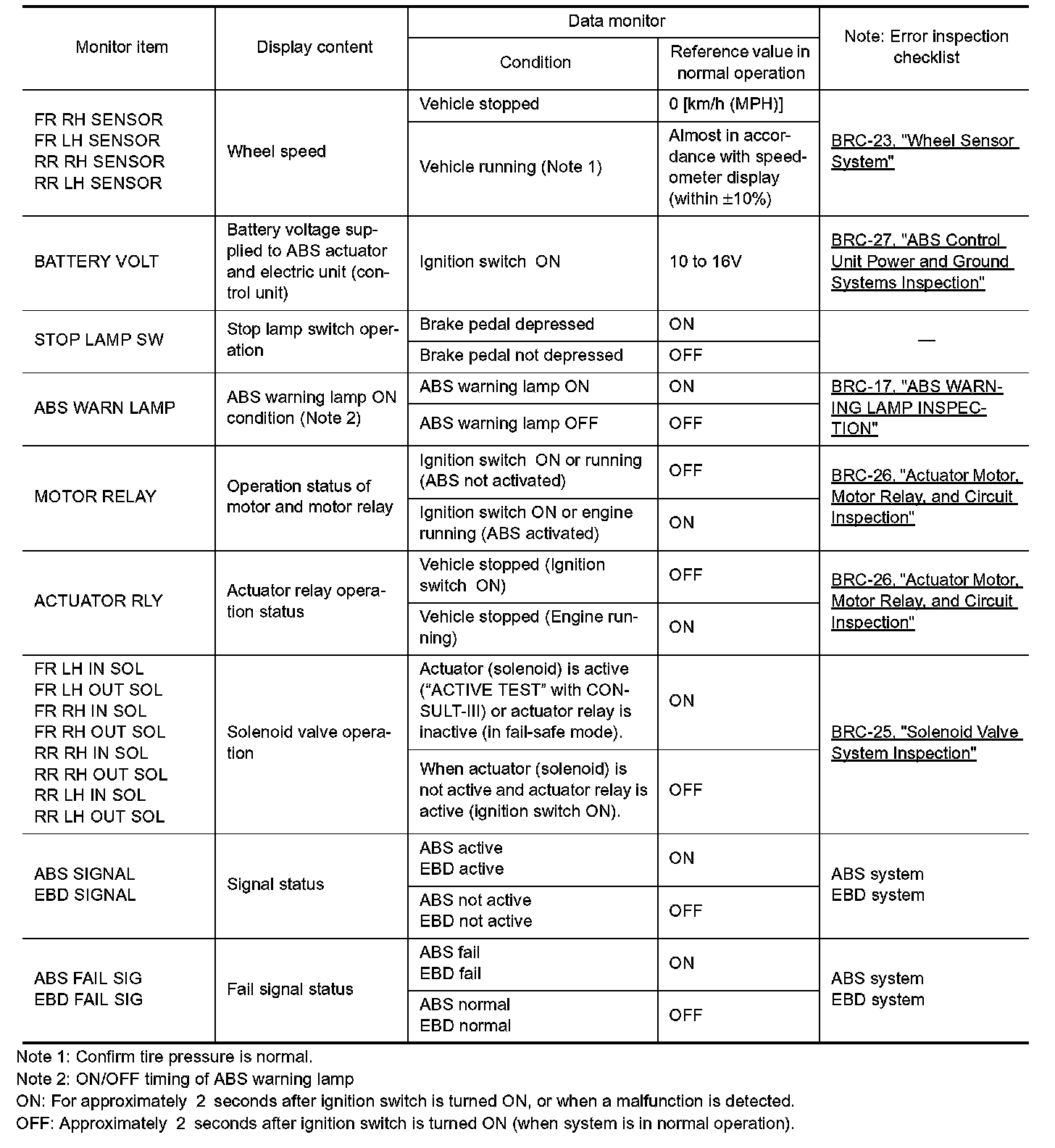

REFERENCE VALUE FROM CONSULT-III

CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short circuited.
