Spoiler: Service and Repair

REAR AIR SPOILER

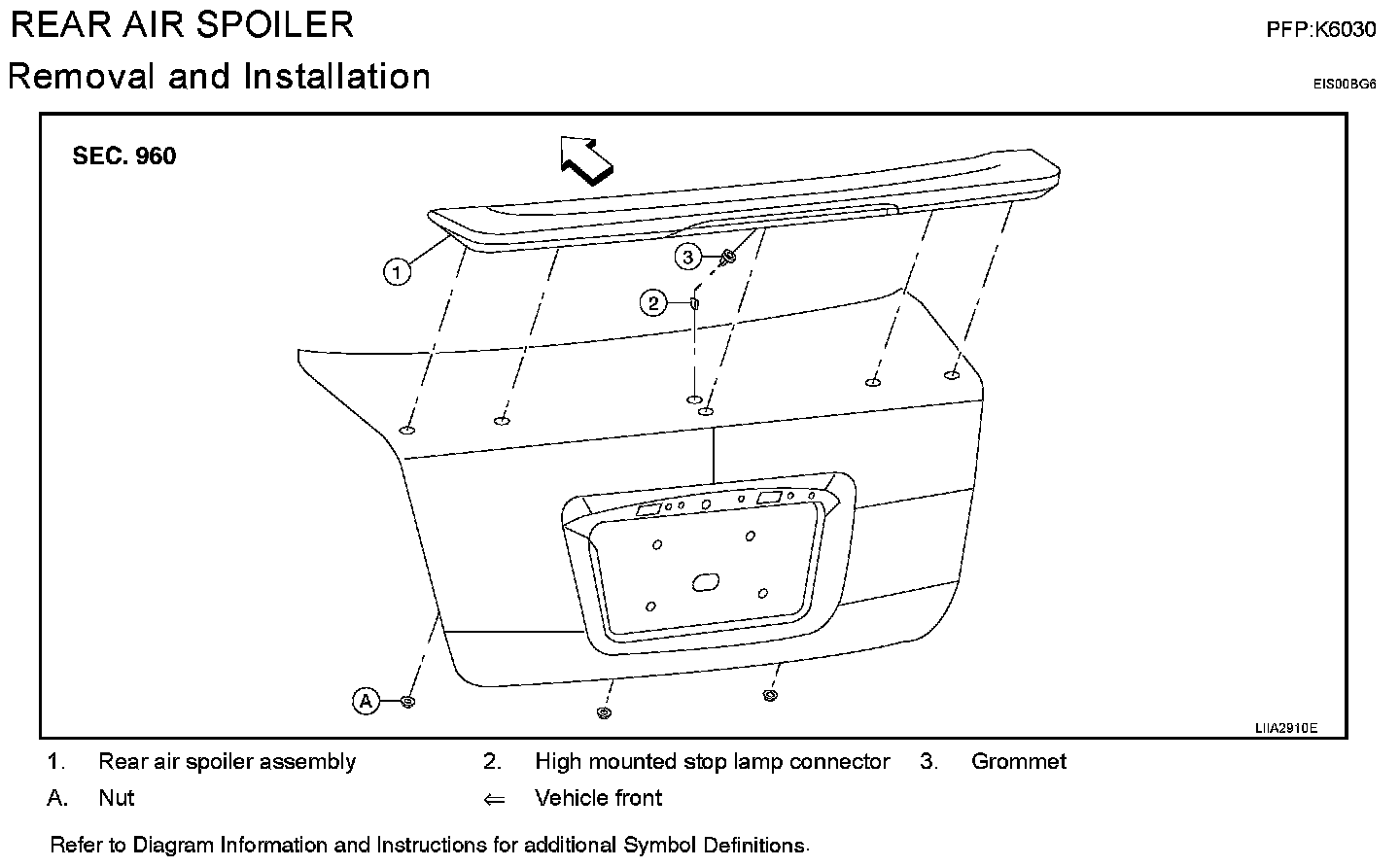

Exploded View EI-25:

Removal and Installation

REMOVAL
1. Remove trunk lid finisher (if equipped). Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER".
2. Disconnect high mounted stop lamp connector.
3. Remove the rear air spoiler nuts.then using a trim stick carefully release lift the rear air spoiler from the gaskets.
4. Using a trim stick, carefully pry upward to release the foam tape (gasket) from trunk lid surface.

CAUTION: Use care not to damage painted surfaces during removal of, or releasing adhesive backed foam tapes.

5. Release the high mounted stop lamp connector and grommet from trunk lid, then remove rear air spoiler.

INSTALLATION
Installation is in the reverse order of removal.

NOTE:
- Before installing rear air spoiler, clean the surface where it will be mounted with isopropyl alcohol or equivalent to degrease the surface.
- Before installing, be sure there are no gaps or waves in the foam tape (gasket) where the surfaces meet.
- During installation, be sure grommet of high mounted stop lamp harness is fully seated into trunk lid opening prior to final rear air spoiler placement.
