Mud Flap: Service and Repair

MUDGUARD

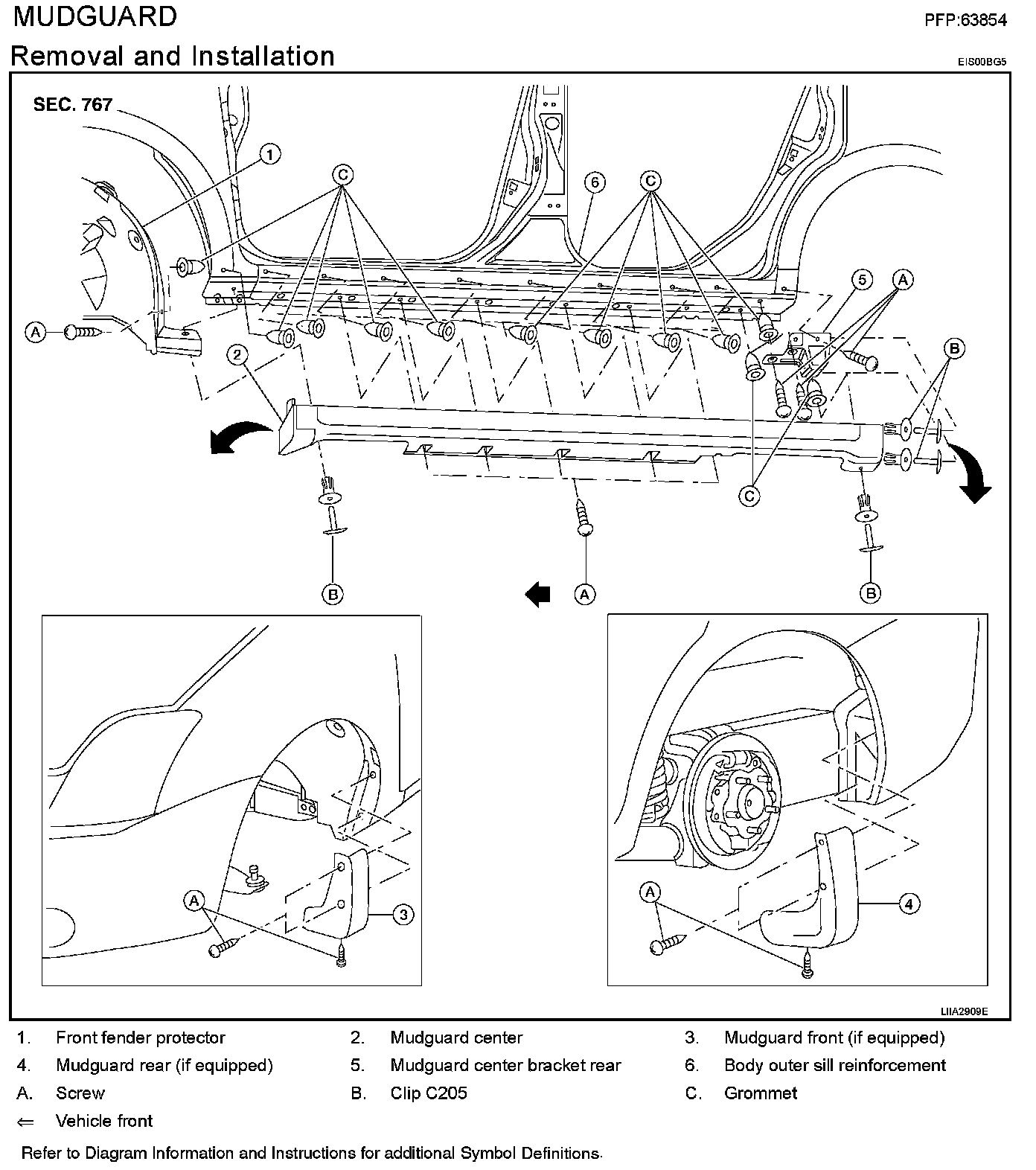

Exploded View EI-23:

Removal and Installation

REMOVAL
1. Remove the screws and mudguard front (if equipped).
2. Remove the screws and mudguard rear (if equipped).
3. Remove the clips and screws, then remove mudguard center from body outer sill reinforcement.
4. Remove the screws and mudguard center bracket rear.

INSTALLATION
Installation is in the reverse order of removal.
