Disassembly and Assembly

Disassembly and Assembly

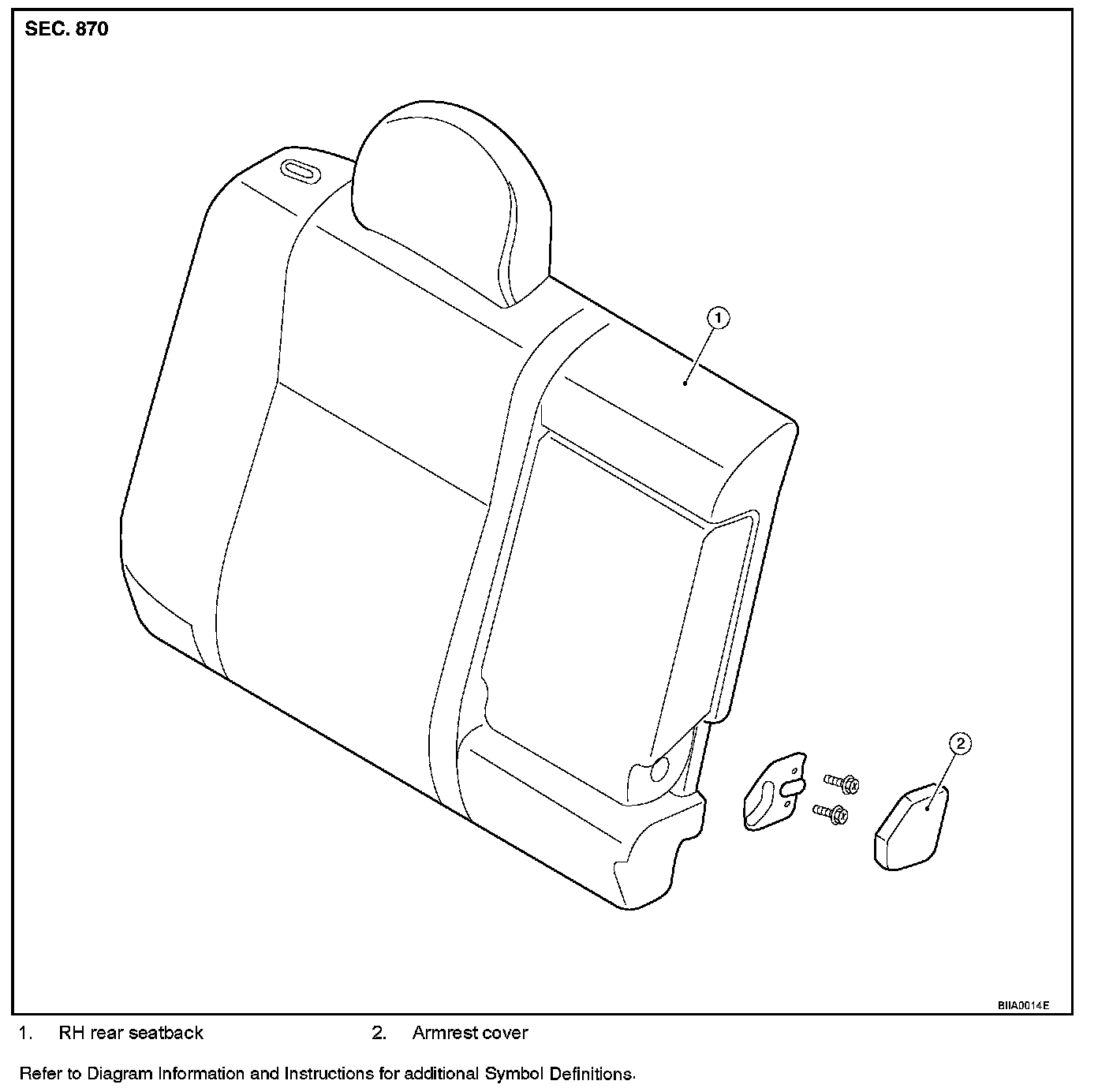

Exploded View SE-20:

60:40 SPLIT FOLD DOWN SEAT ARMREST

Disassembly of Armrest
1. Fold up the backside of the seatback and then remove the armrest cover.
2. Remove the armrest from the seatback.

Assembly of Armrest
Assembly in the reverse order of disassembly.
