Removal and Installation

REAR SEAT

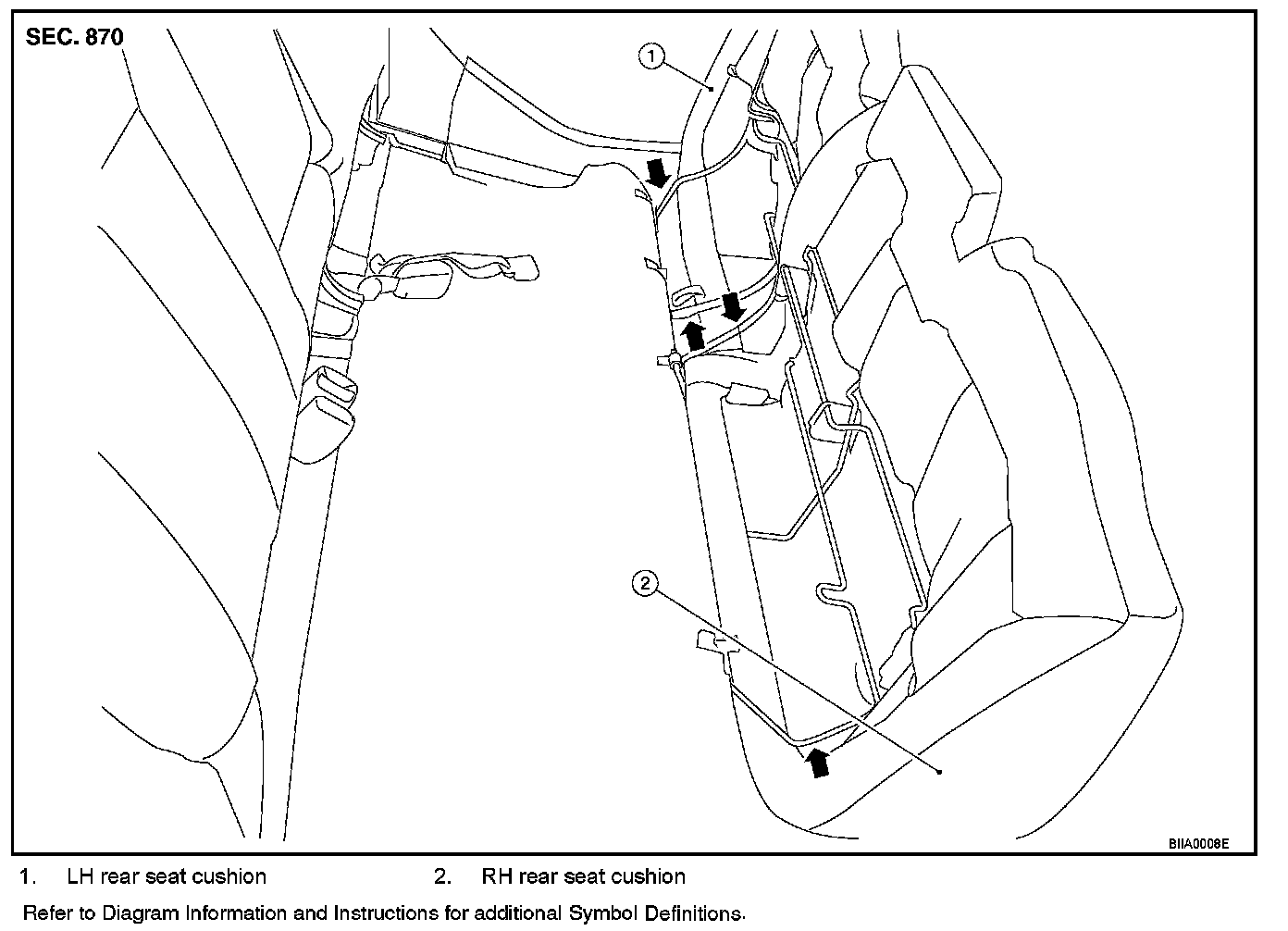

Exploded View SE-17:

60:40 SPLIT FOLD DOWN SEAT CUSHION

Removal
1. Lift up on the front of the left and right seat cushions and fold forward toward the front of the vehicle.
2. Push the cushion wires inward to disengage from the hinge brackets and remove the seat cushion.

Installation
Installation is the reverse order of removal.
