Disassembly and Assembly

Disassembly and Assembly

Disassembly of Seatback Trim and Pad
1. Remove the headrest.

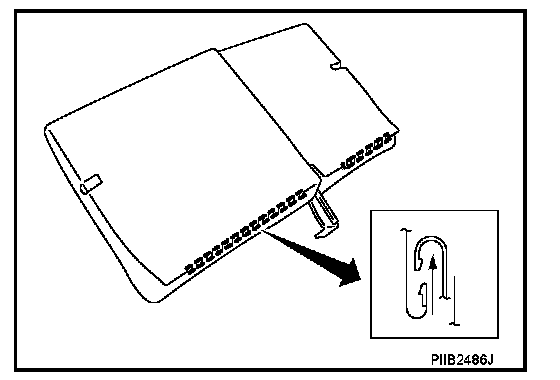

2. Remove the retainer under the back of seatback.




4. Remove the headrest holder.
5. To remove armrest, refer to "Disassembly of Armrest".
6. Remove the seatback trim.
7. Remove the seatback pad from the seatback frame.

Assembly of Seatback Trim and Pad
Assembly is the reverse order of disassembly. Be careful of the following one point.

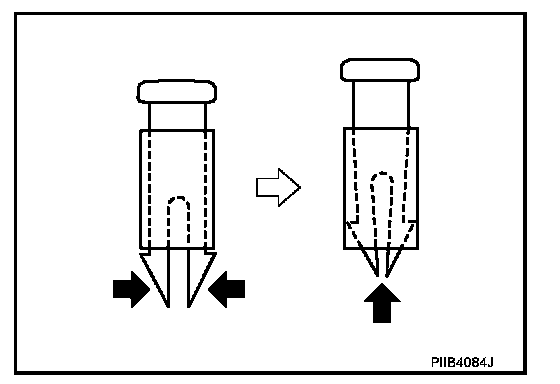

- Before installing headrest holder, check its orientation (front/rear and right/left).
