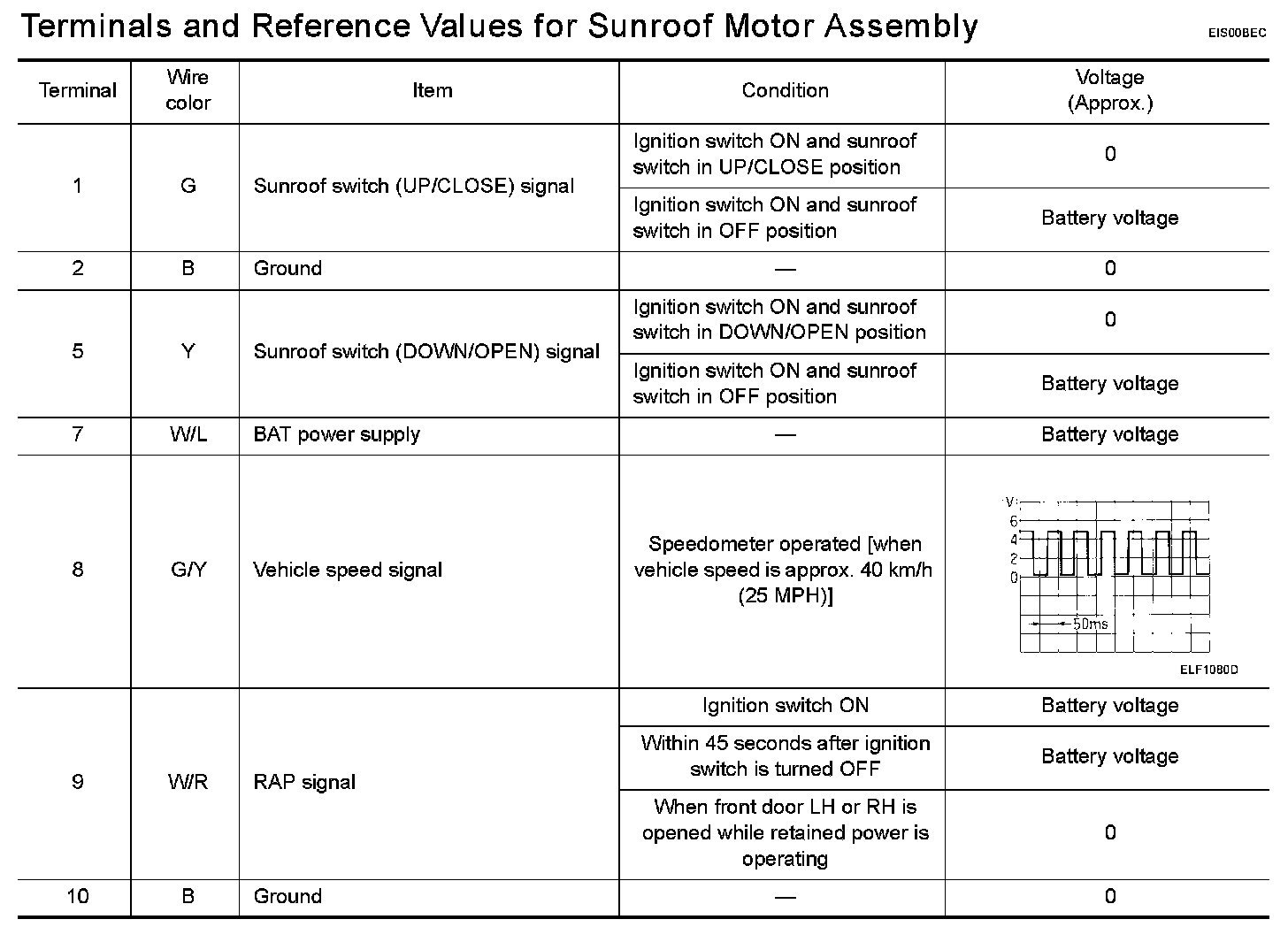

Terminals and Reference Values For Sunroof Motor Assembly

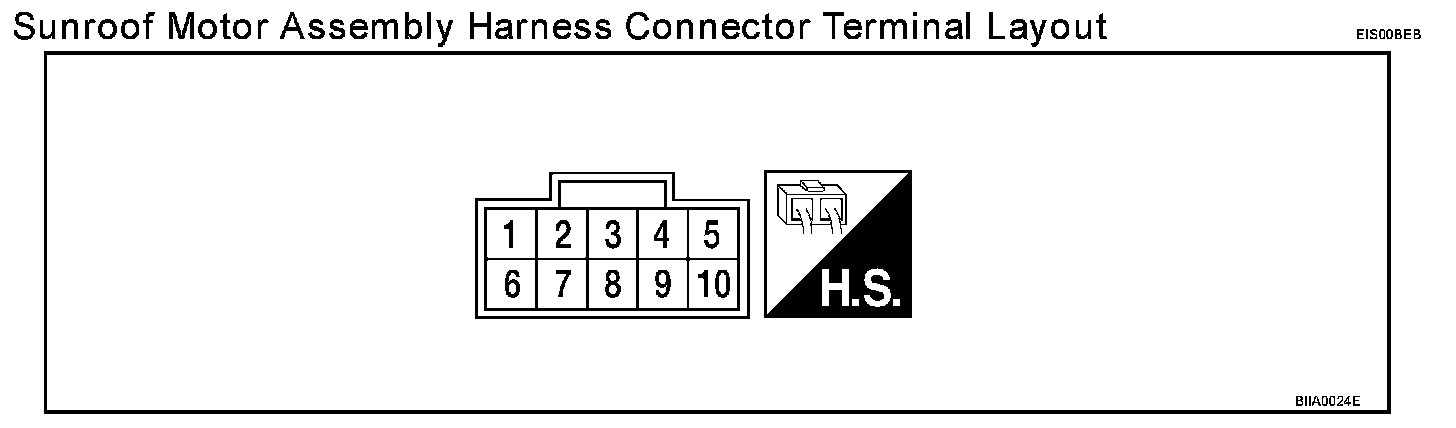

Terminals And Reference Values For Sunroof Motor Assembly:
