Drain Hoses

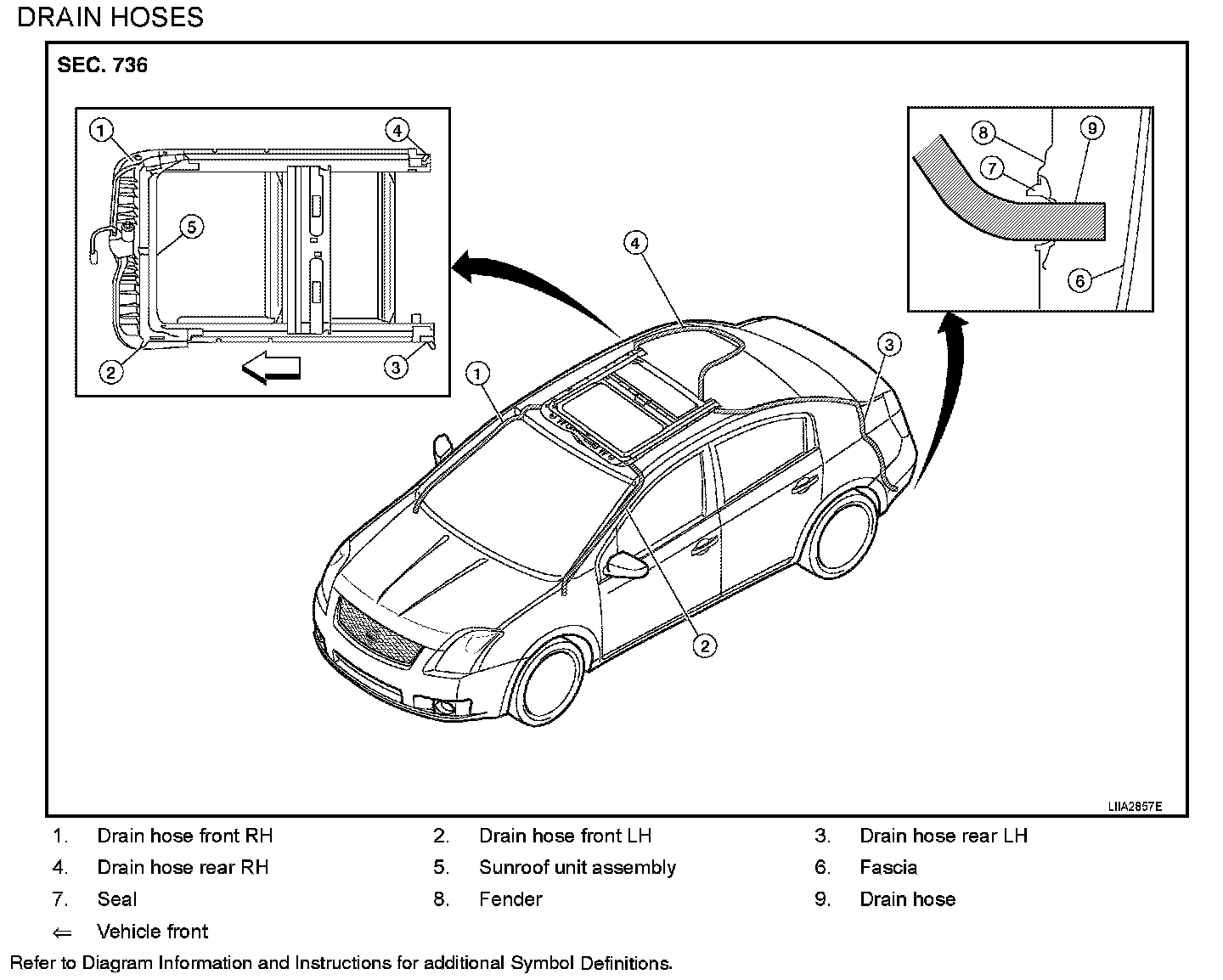

Exploded View RF-29:

DRAIN HOSES

1. Remove headlining. Refer to "HEADLINING".
2. Visually check drain hoses for:
- Proper connection at sunroof unit assembly.
- Damage, pinch, cracks, deterioration.
- Proper fastening and routing on body panels.
- Drain hose rear RH/LH extends 22.5 ± 5.0 mm beyond seal.

3. Pour water through drain hoses to determine watertight performance.

If a damaged or leaking portion in any drain hose is found, replace entire drain hose as an assembly.
