Sunroof / Moonroof Panel: Service and Repair
GLASS LIDRemoval
1. Open the sunshade fully and close the glass lid.

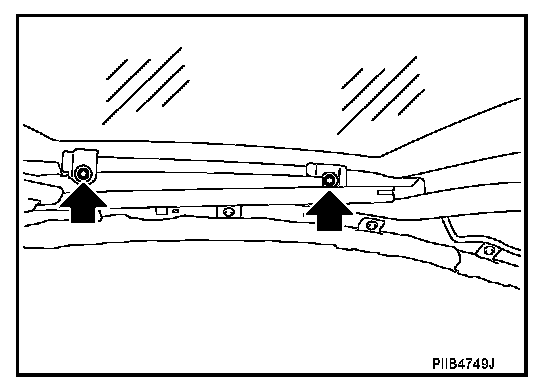

2. Remove glass lid bolts, then remove glass lid.
Installation
1. Position the glass lid on sunroof unit assembly.
2. Partially install glass lid bolts. Tighten left front bolt first, then right rear to prevent uneven torque while tightening remaining bolts.
3. After installation, check sunroof operation and glass lid assembly alignment. Refer to "Fitting Adjustment".
