Sunroof / Moonroof Motor: Service and Repair

SUNROOF MOTOR ASSEMBLY

Removal
1. Close the glass lid.
2. Remove headlining. Refer to "HEADLINING".

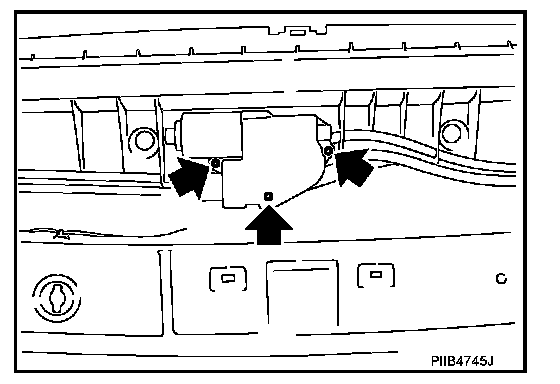

3. Remove sunroof motor assembly bolts.
4. Disconnect harness connector from sunroof motor assembly, then remove sunroof motor assembly.

CAUTION:
- When removing the sunroof motor assembly, be sure that the sunroof lid is in the fully closed position.
- Do not operate the removed sunroof motor assembly as a single unit.

Installation

CAUTION:
- Before installing the sunroof motor assembly, be sure the link assembly is in the symmetrical and fully closed position.
- Align the link notch with the hole of the guide track (fully closed: RH and LH).

1. Place the sunroof motor assembly flat onto the sunroof unit assembly surface.
2. Laterally move the assembly little by little so that the gear is completely engaged into the wire and there is no gap between the sunroof unit assembly and sunroof motor assembly.
3. Install the sunroof motor assembly bolts, then connect the harness connector.
4. After installing, perform the initialization procedure. Refer to RF-11,"INITIALIZATION PROCEDURE". Description and Operation
