Removal and Installation

DOOR MIRROR

Exploded View GW-71:

Removal and Installation

CAUTION: Be careful not to damage the mirror body.

REMOVAL
1. Remove the front door finisher. Refer to "FRONT DOOR".

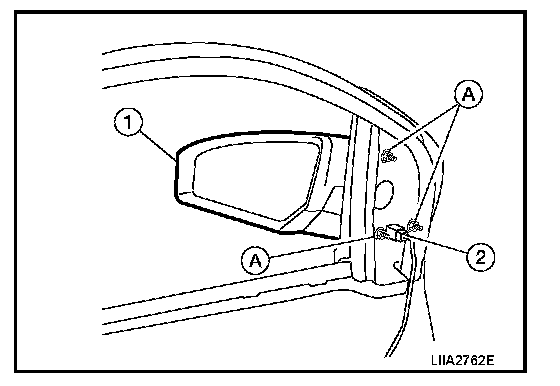

2. Disconnect the door mirror connector (2), remove the door mirror nuts (A), and remove the door mirror assembly (1).

INSTALLATION
Installation is in the reverse order of removal.
