Disassembly and Assembly

DOOR MIRROR

Disassembly and Assembly

DISASSEMBLY




1. Turn the mirror glass surface upward.
2. Apply a protective tape A to the housing.

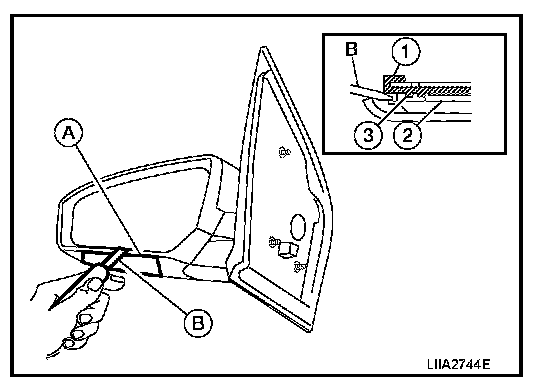

3. Insert a suitable tool B into the concave gap between mirror holder (1) and power unit (2). Push up tabs (3) (two locations) on mirror holder to disengage lower part of mirror holder, and remove mirror body assembly.

NOTE: When pushing up the tabs (3), do not forcefully push up only one concave position but try to push up two concave positions.

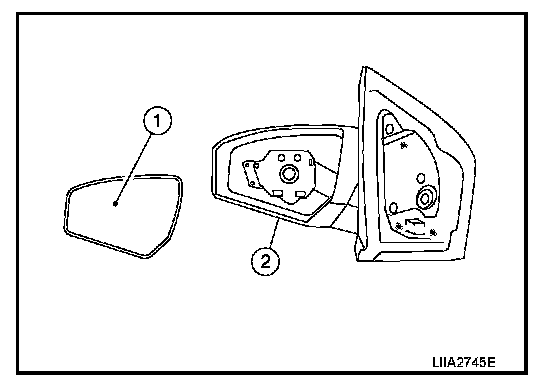

4. Remove the mirror body (1) from the mirror housing assembly (2)

NOTE: When removing the wire connectors from the back the mirror glass, notice the location of the wire connectors to the terminals. Pull in the wires in the direction of the terminals to remove the wires.

ASSEMBLY
1. Warm the lower tabs with a dryer or equivalent.

NOTE: Warm the lower tabs sufficiently before installing the mirror body. The tabs may be broken if it is cold. Be especially careful in the colder weather.

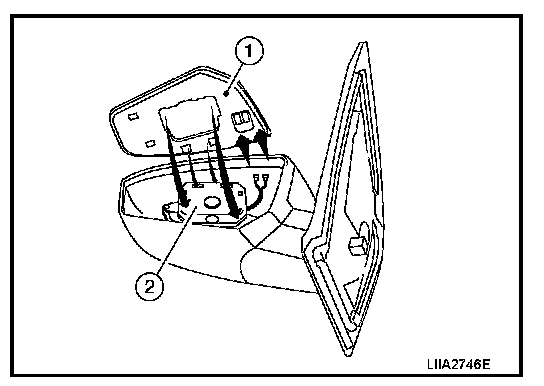

2. Engage upper tabs of mirror body (1) with power unit (2). Then, press lower part of mirror body (1) down until the lower part snaps to allow engagement of lower tabs.

NOTE: After installation, visually check that the lower tabs are securely engaged when viewed from the bottom of mirror surface.

3. Insert the wire harness terminals into the two terminals.

NOTE: Make sure to insert the harness terminals into the correct connector. Do not confuse the locations.
