Passenger Select Unlock Relay Circuit Check (With Intelligent Key)

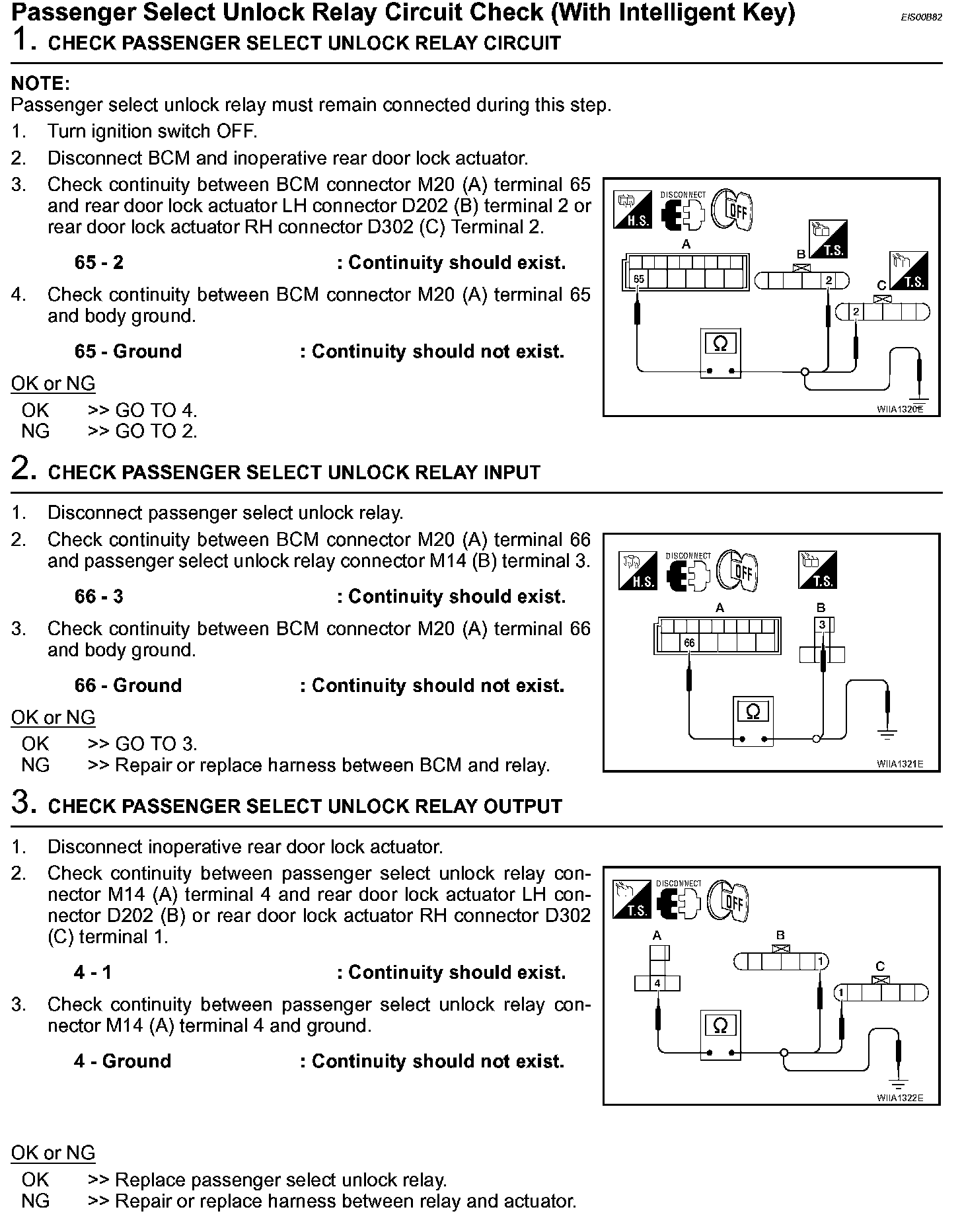

Passenger Select Unlock Relay Circuit Check (With Intelligent Key) (Steps 1 - 3):

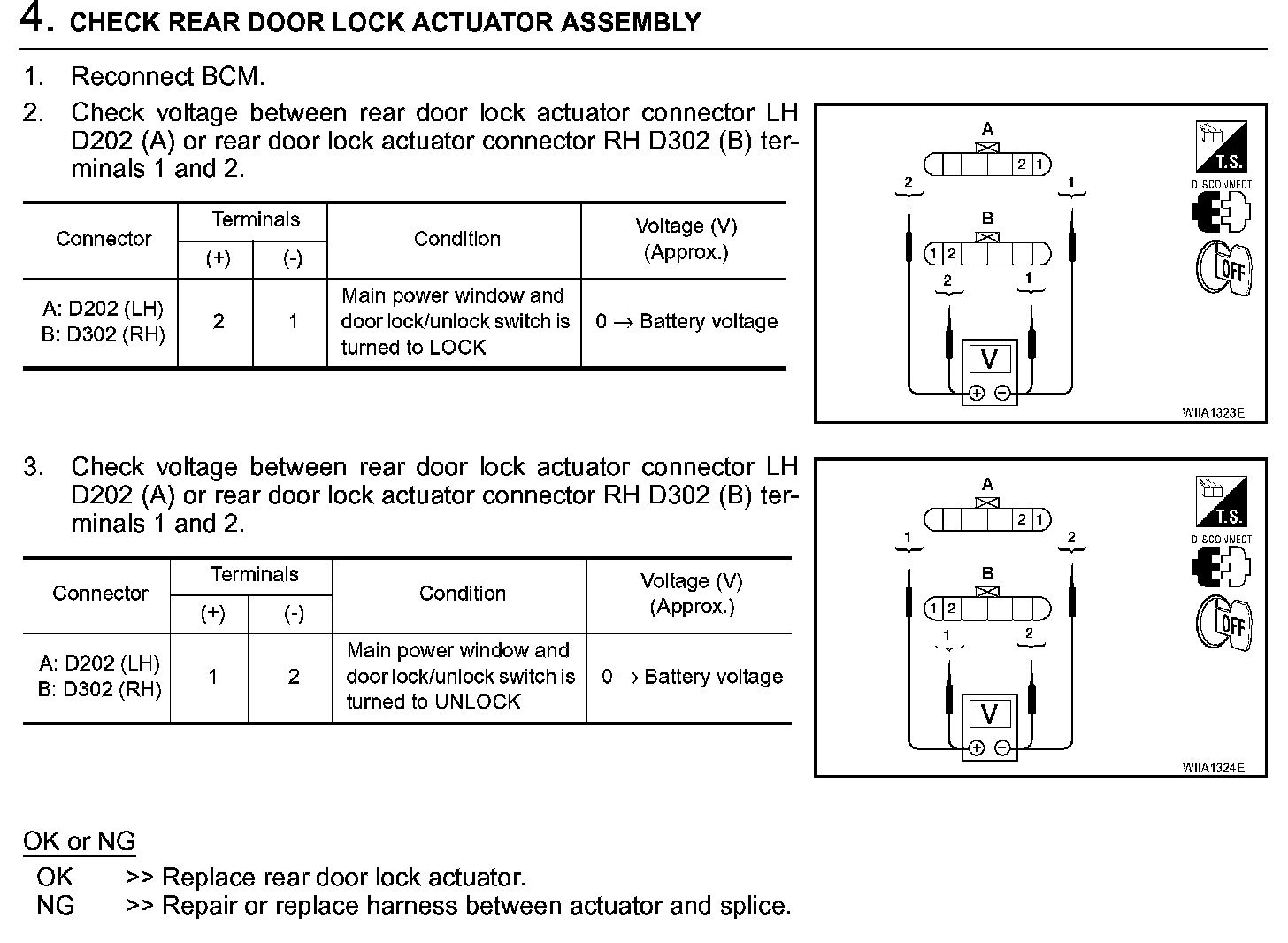

Passenger Select Unlock Relay Circuit Check (With Intelligent Key) (Step 4):
