Key Switch (Insert) Check

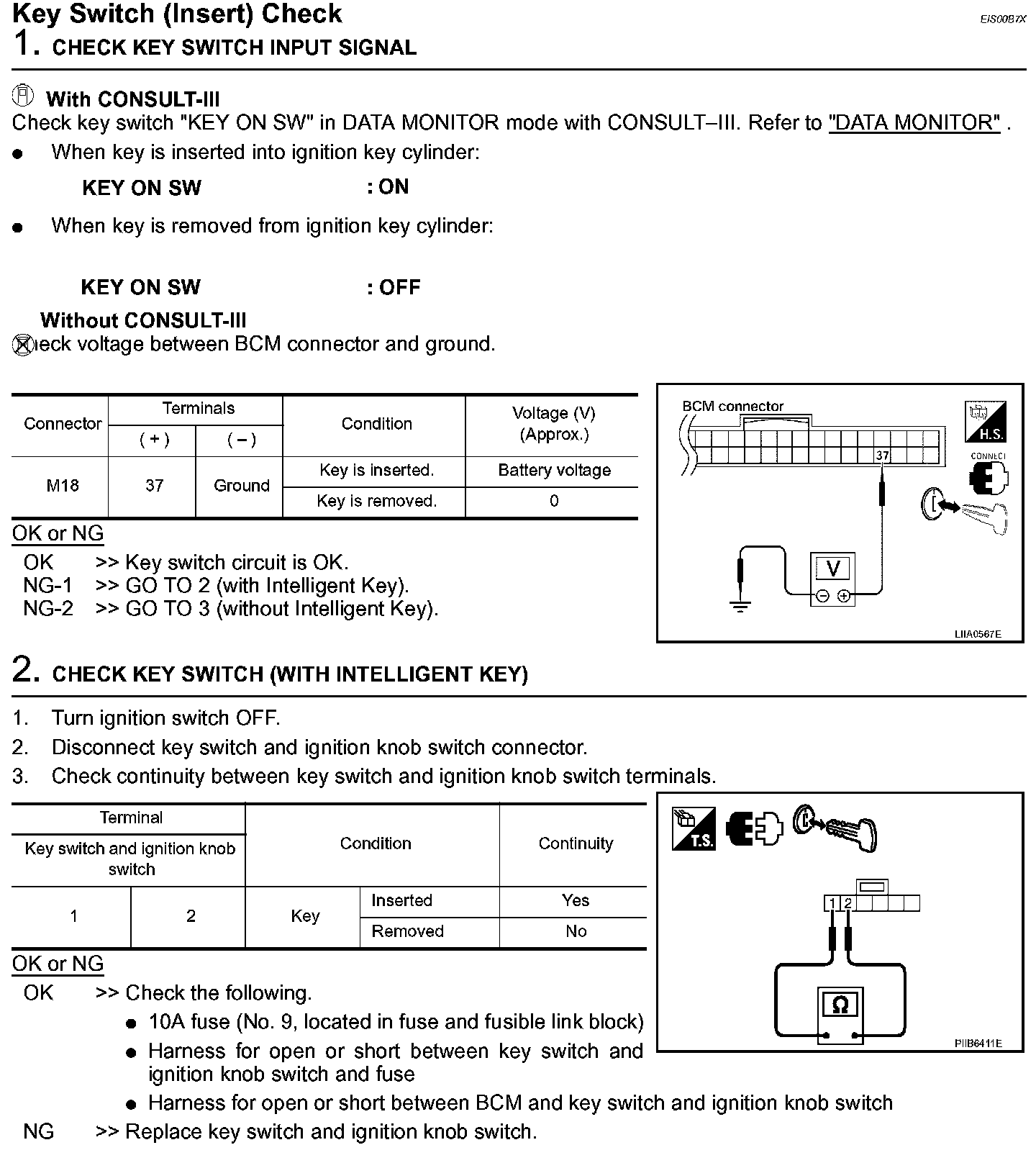

Key Switch (Insert) Check (Steps 1 - 2):

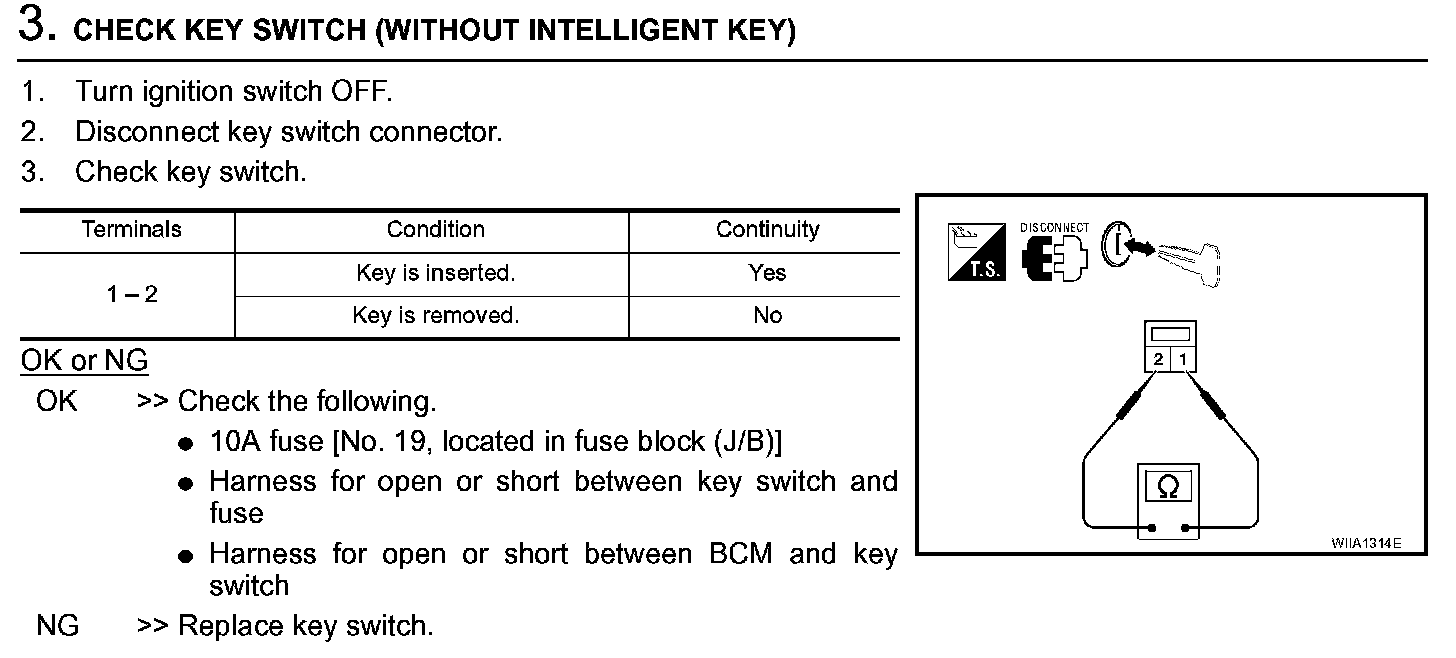

Key Switch (Insert) Check (Step 3):
