Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Component Tests and General Diagnostics >> Front Door Lock Assembly LH (Actuator) Check

Front Door Lock Assembly LH (Actuator) Check

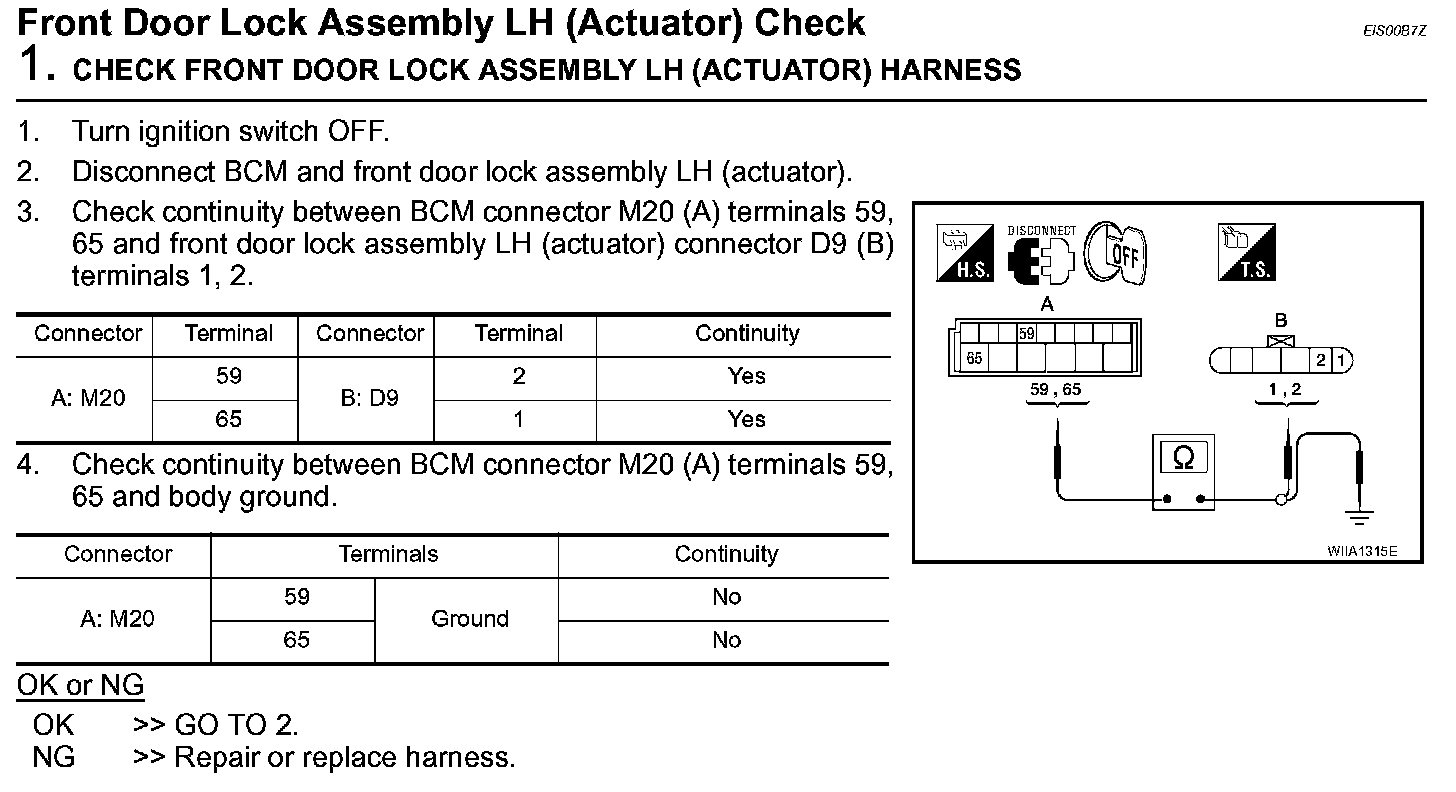

Front Door Lock Assembly LH (Actuator) Check (Step 1):

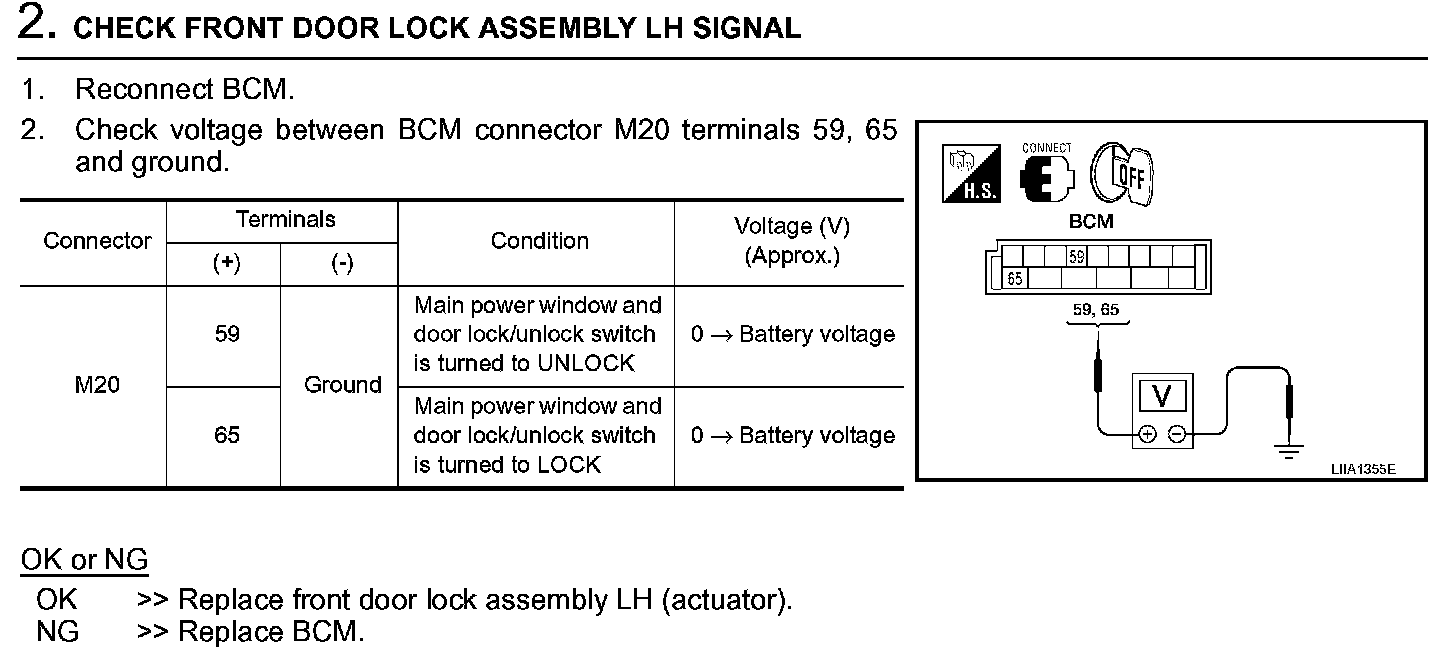

Front Door Lock Assembly LH (Actuator) Check (Step 2):
