Front Door Key Cylinder Switch LH Check

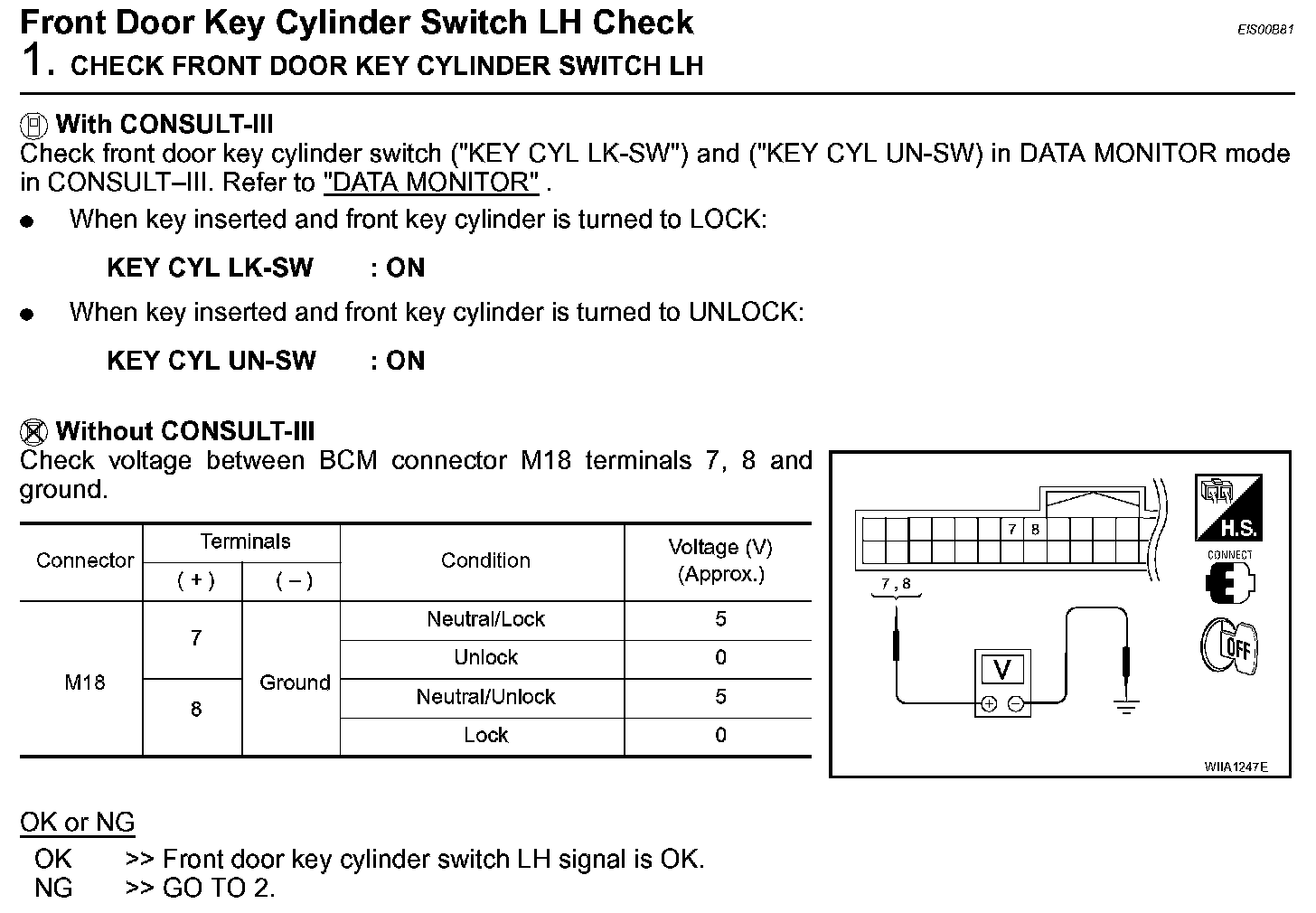

Front Door Key Cylinder Switch LH Check (Step 1):

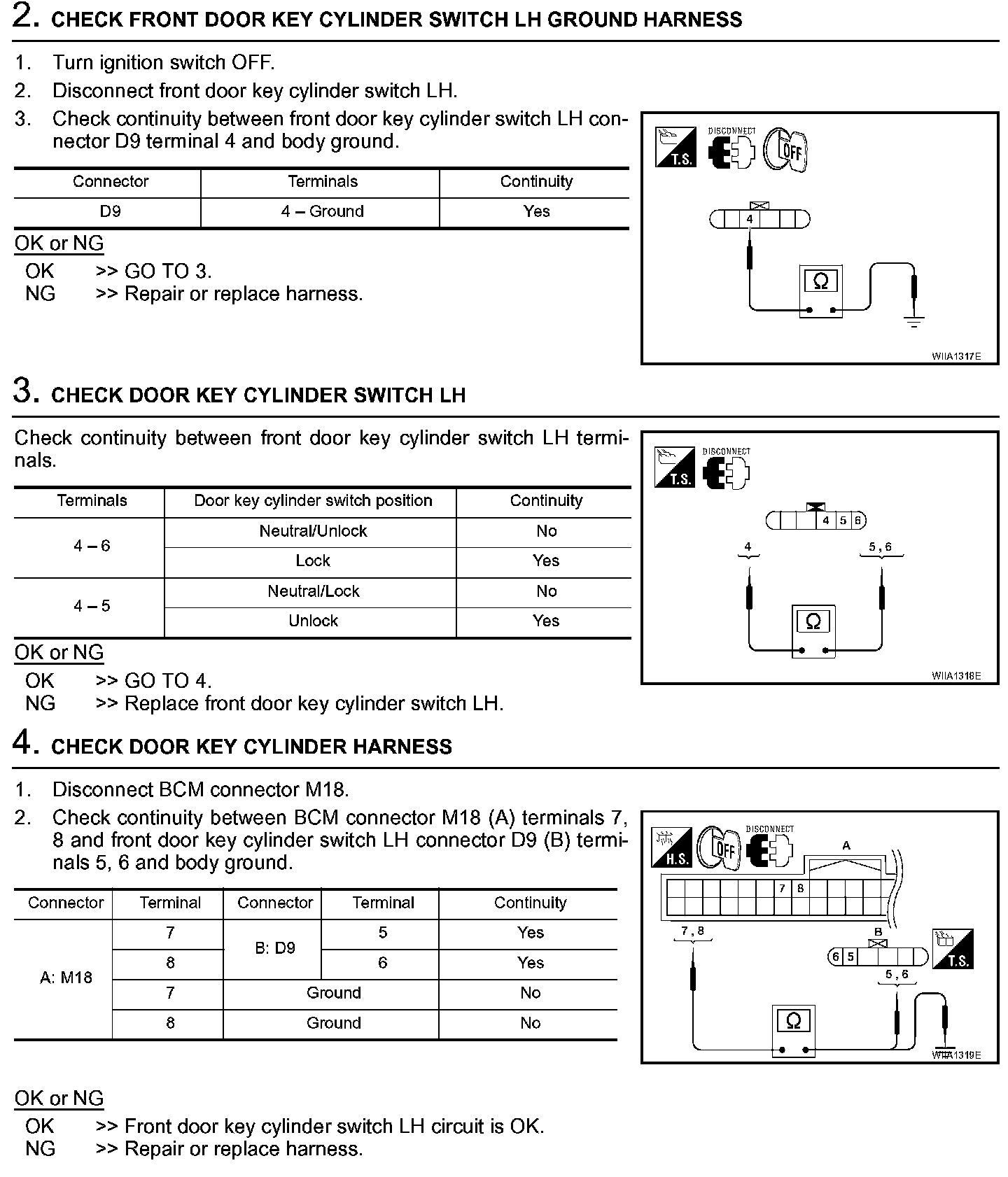

Front Door Key Cylinder Switch LH Check (Steps 2 - 4):
