FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2007
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Door Lock Actuator Check (Front RH and Rear LH/RH)
Door Lock Actuator Check (Front RH and Rear LH/RH)

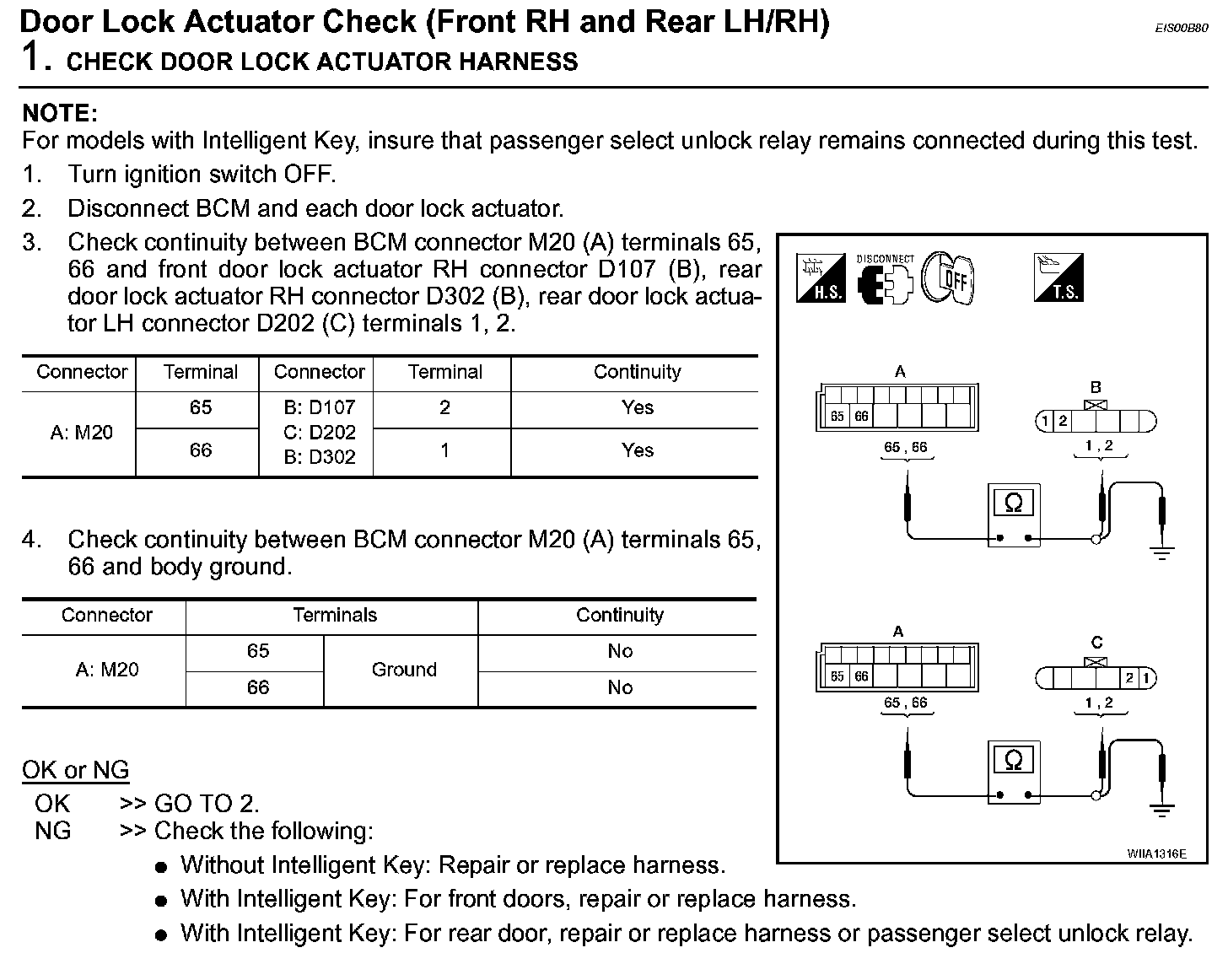

Door Lock Actuator Check (Front RH And Rear LH/RH) (Step 1):

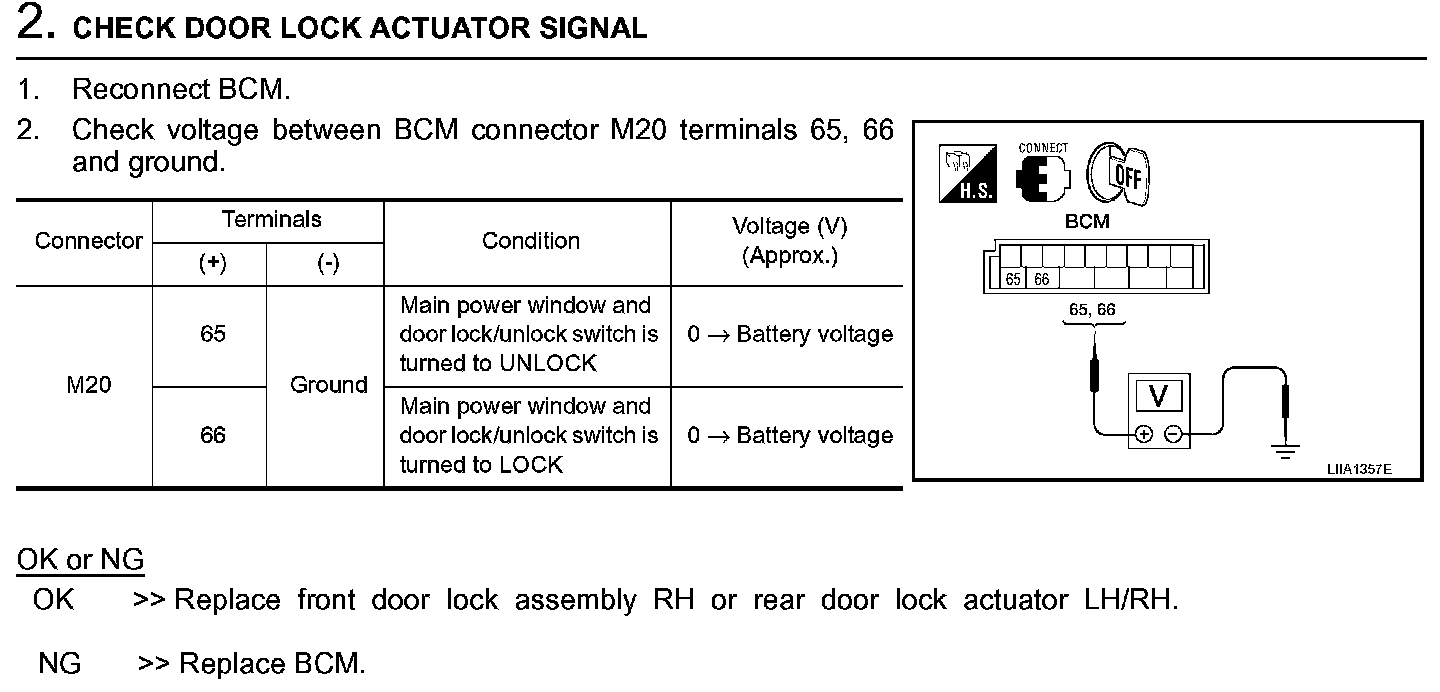

Door Lock Actuator Check (Front RH And Rear LH/RH) (Step 2):
