BL-D/LOCK

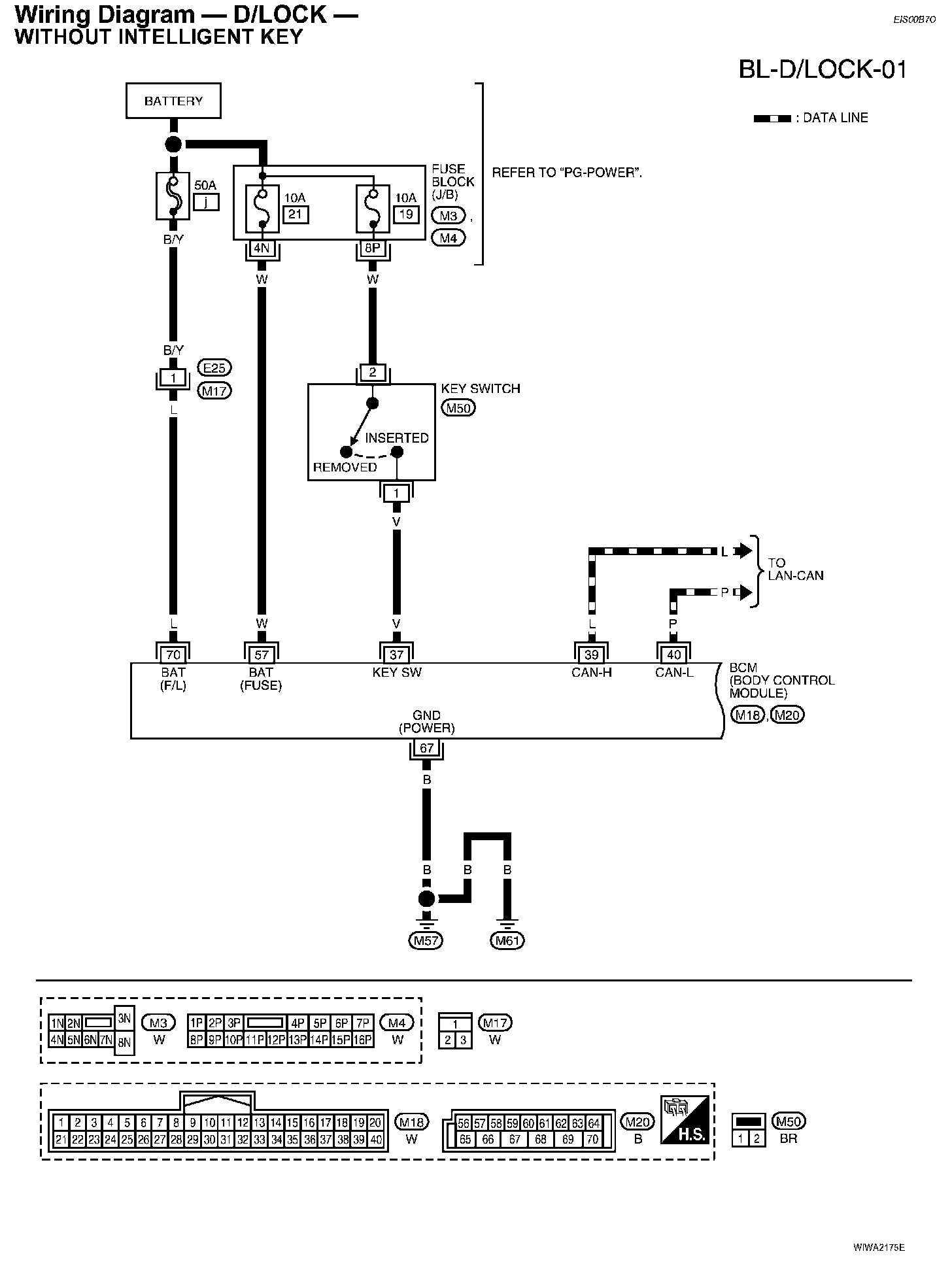

BL-D/LOCK-01:

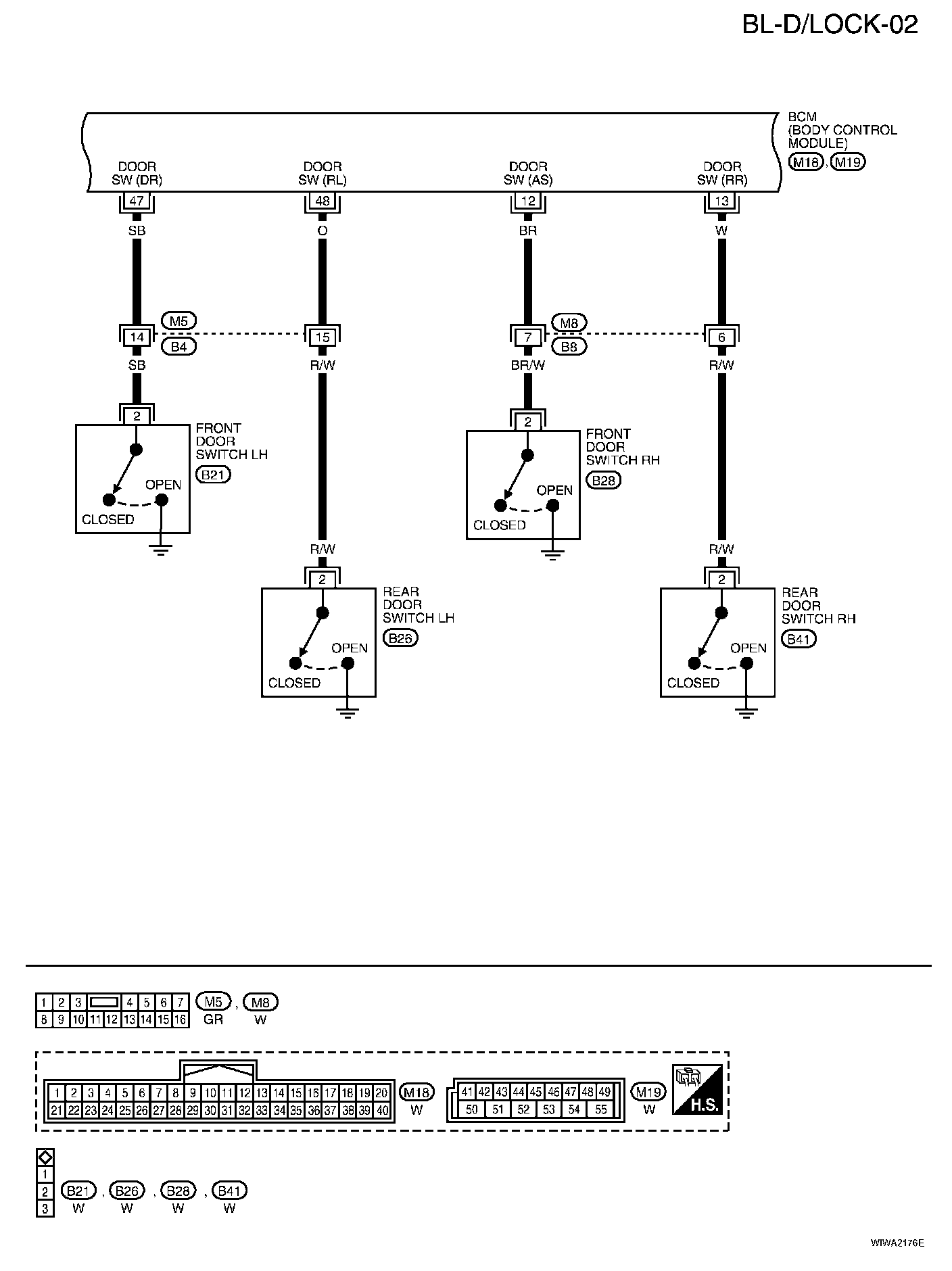

BL-D/LOCK-02:

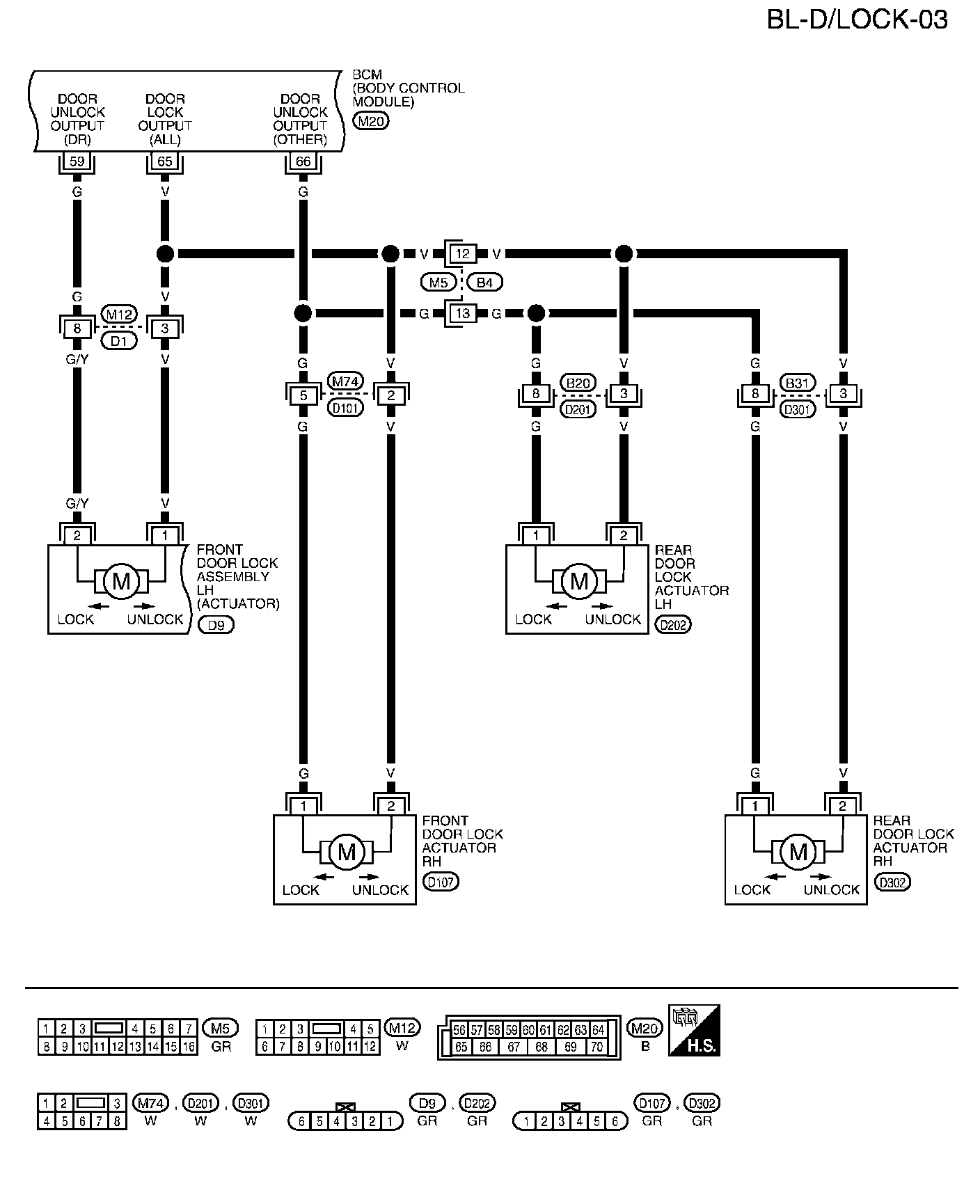

BL-D/LOCK-03:

BL-D/LOCK-04:

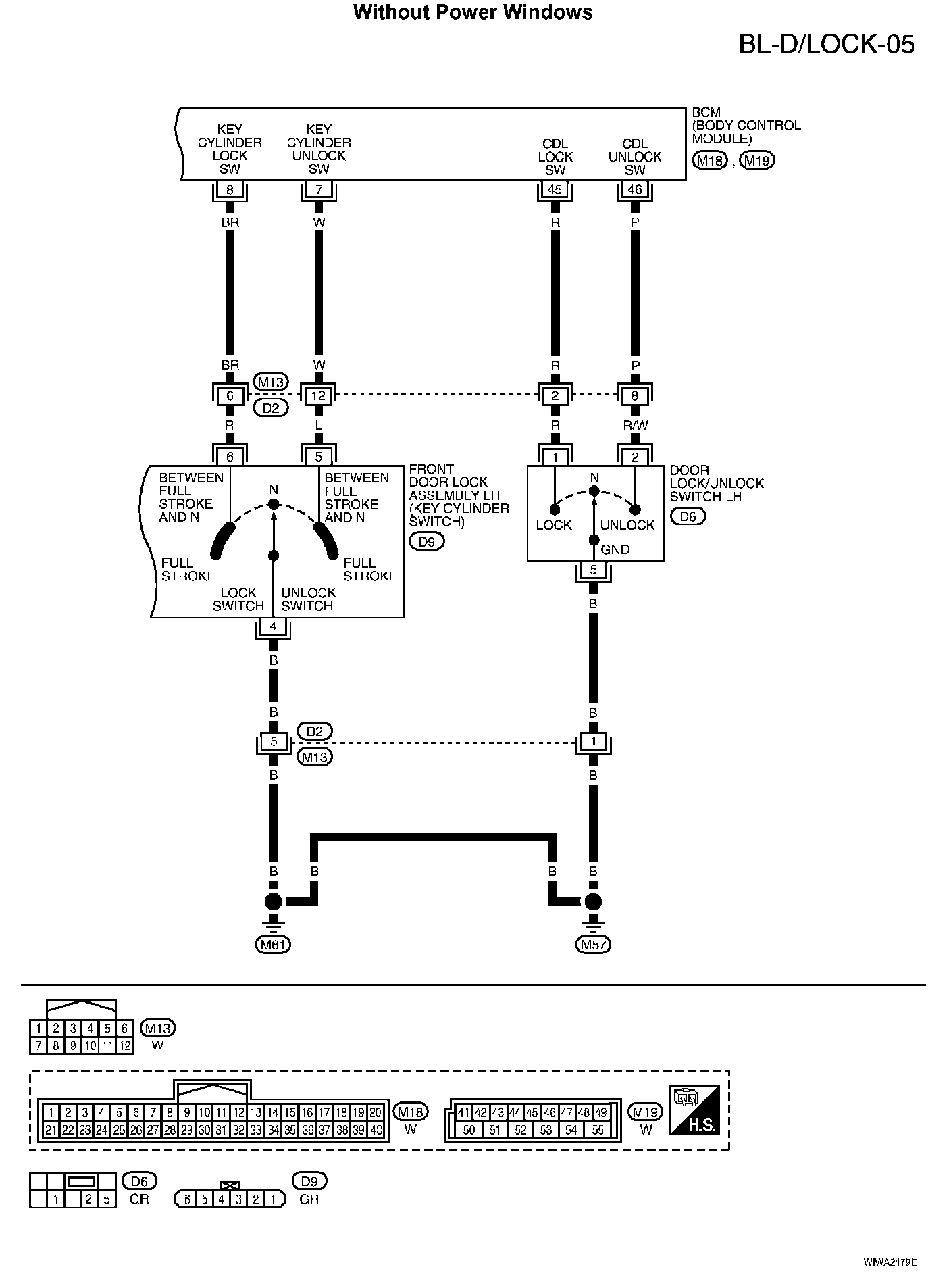

BL-D/LOCK-05:

WITHOUT INTELLIGENT KEY

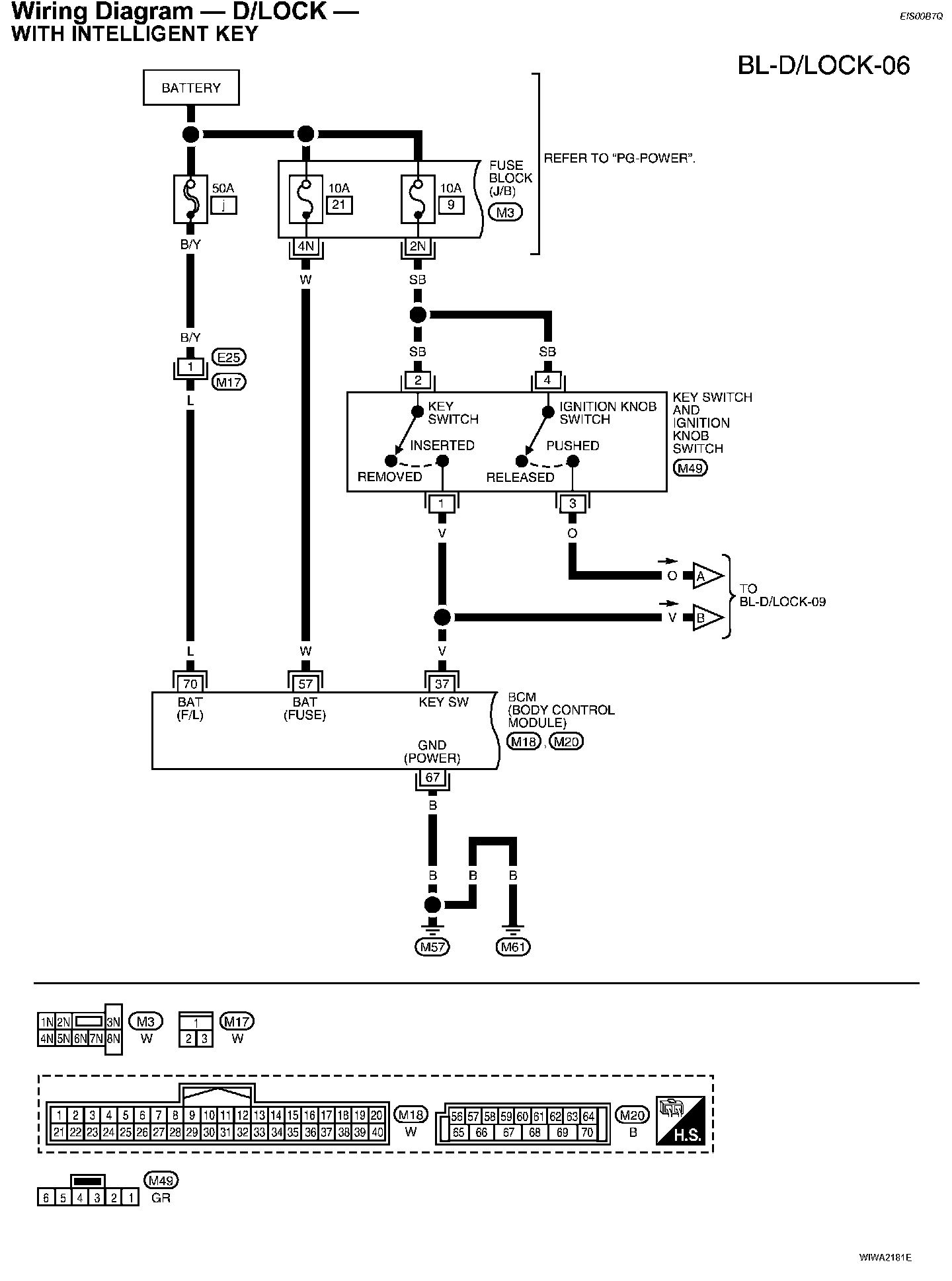

BL-D/LOCK-06:

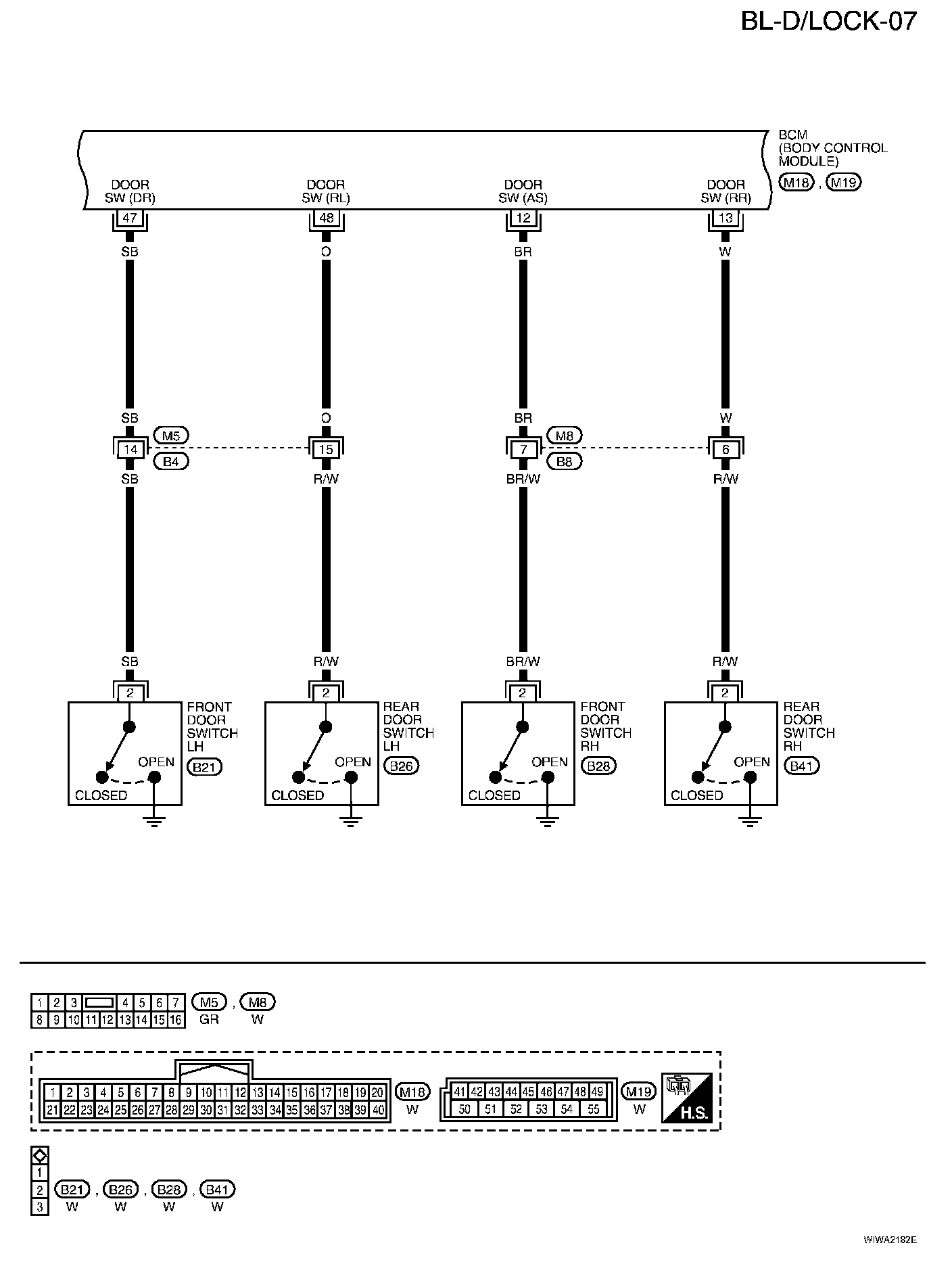

BL-D/LOCK-07:

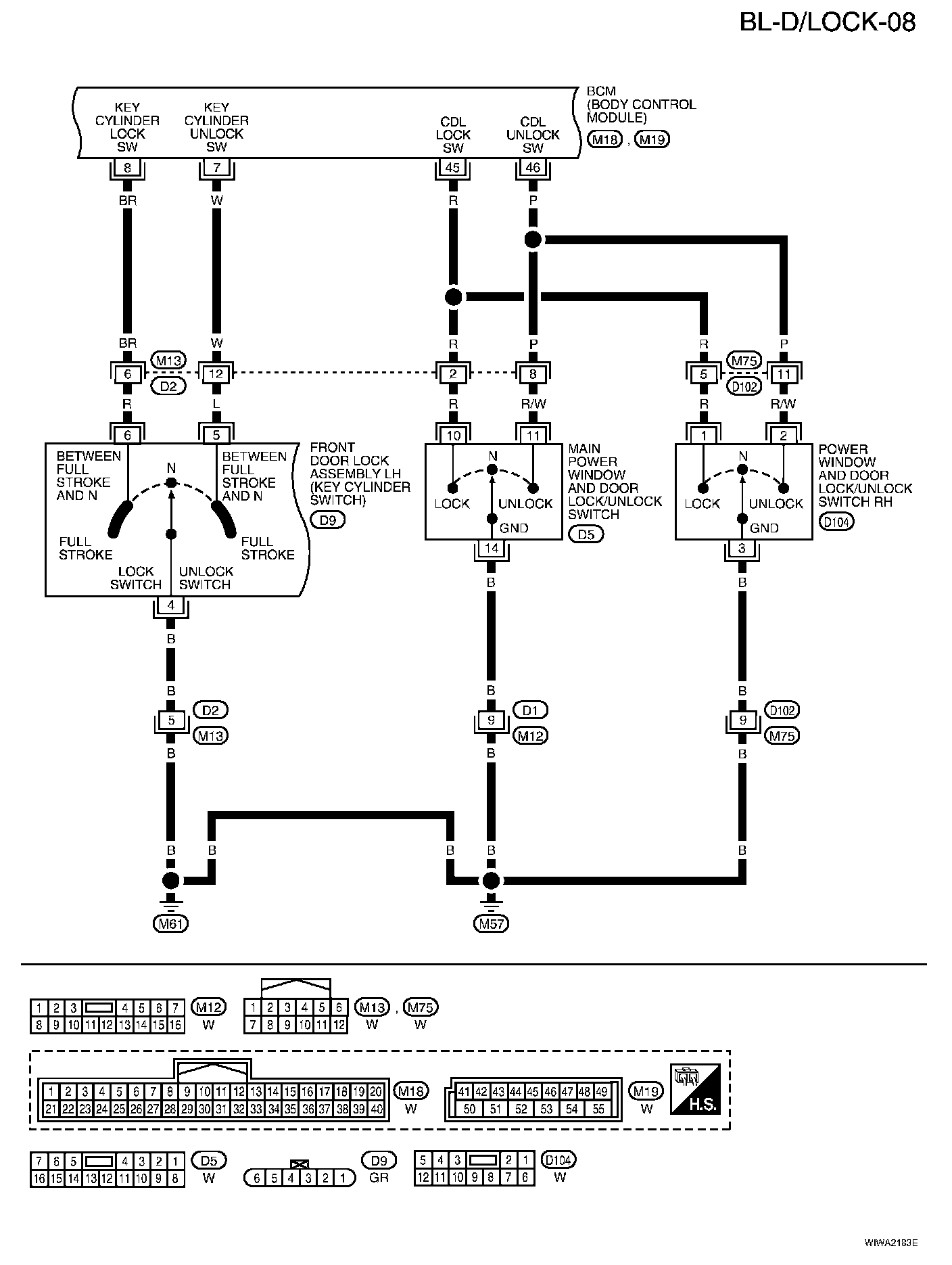

BL-D/LOCK-08:

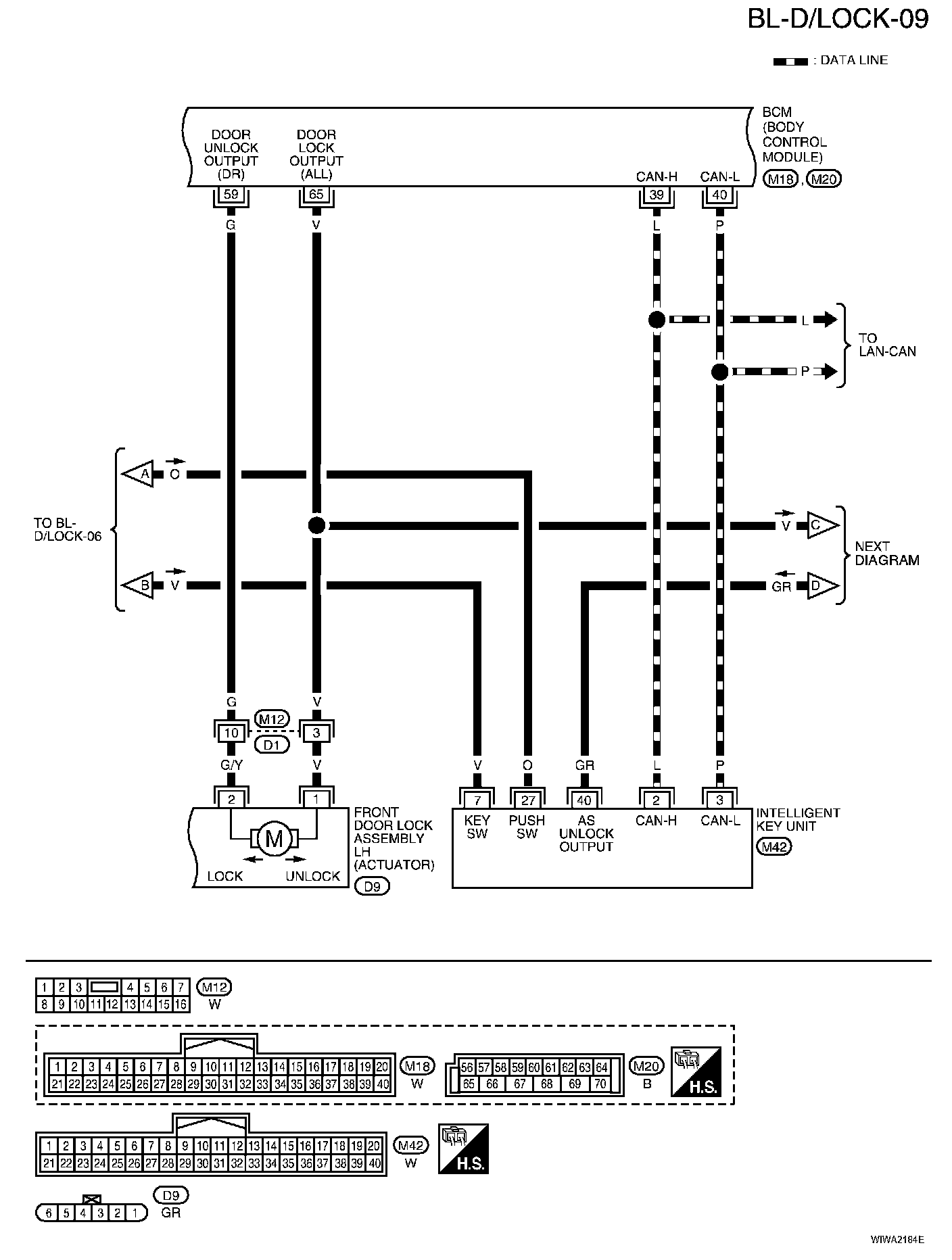

BL-D/LOCK-09:

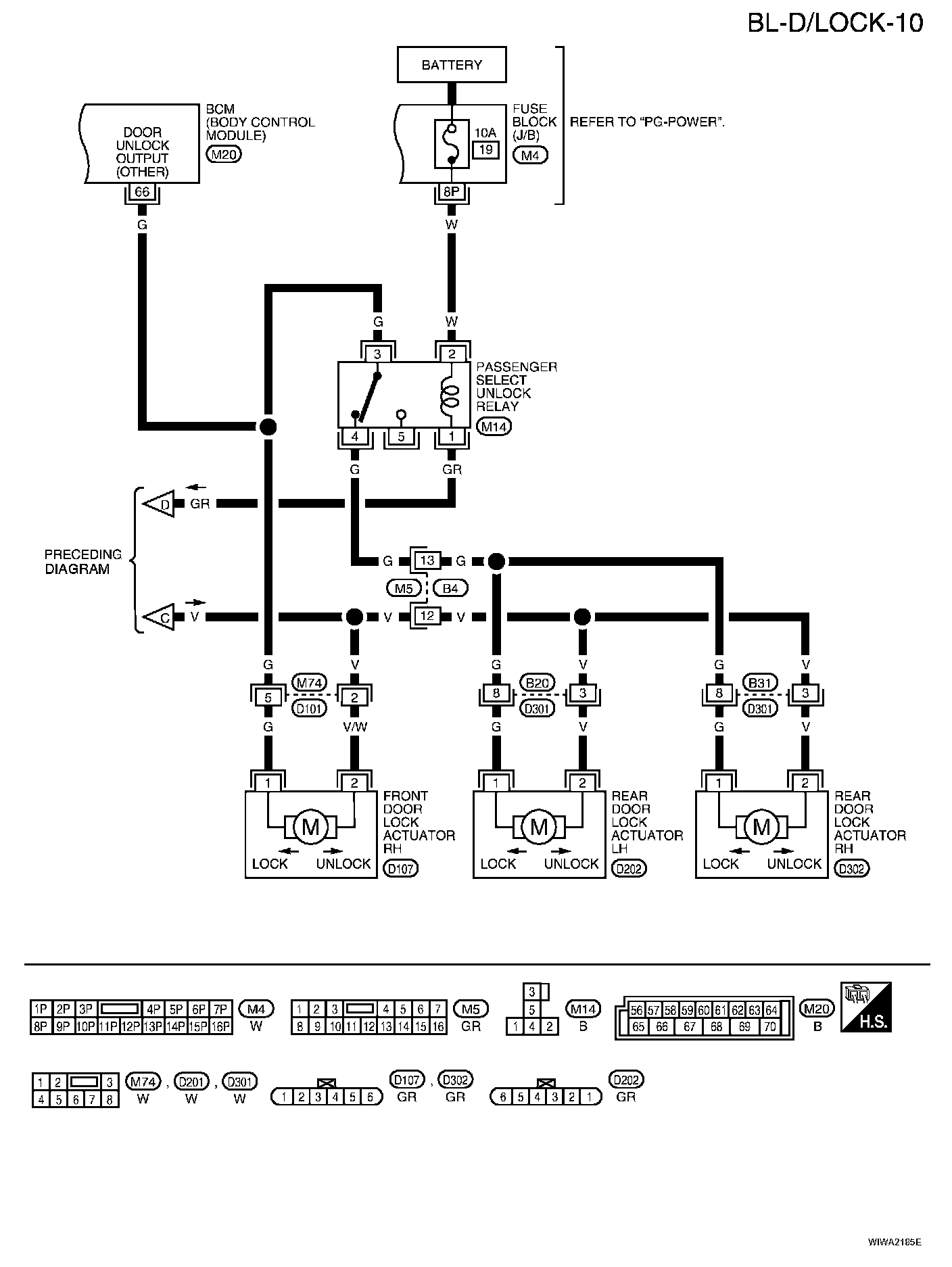

BL-D/LOCK-10:

WITH INTELLIGENT KEY


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
