Remote Keyless Entry Receiver Check

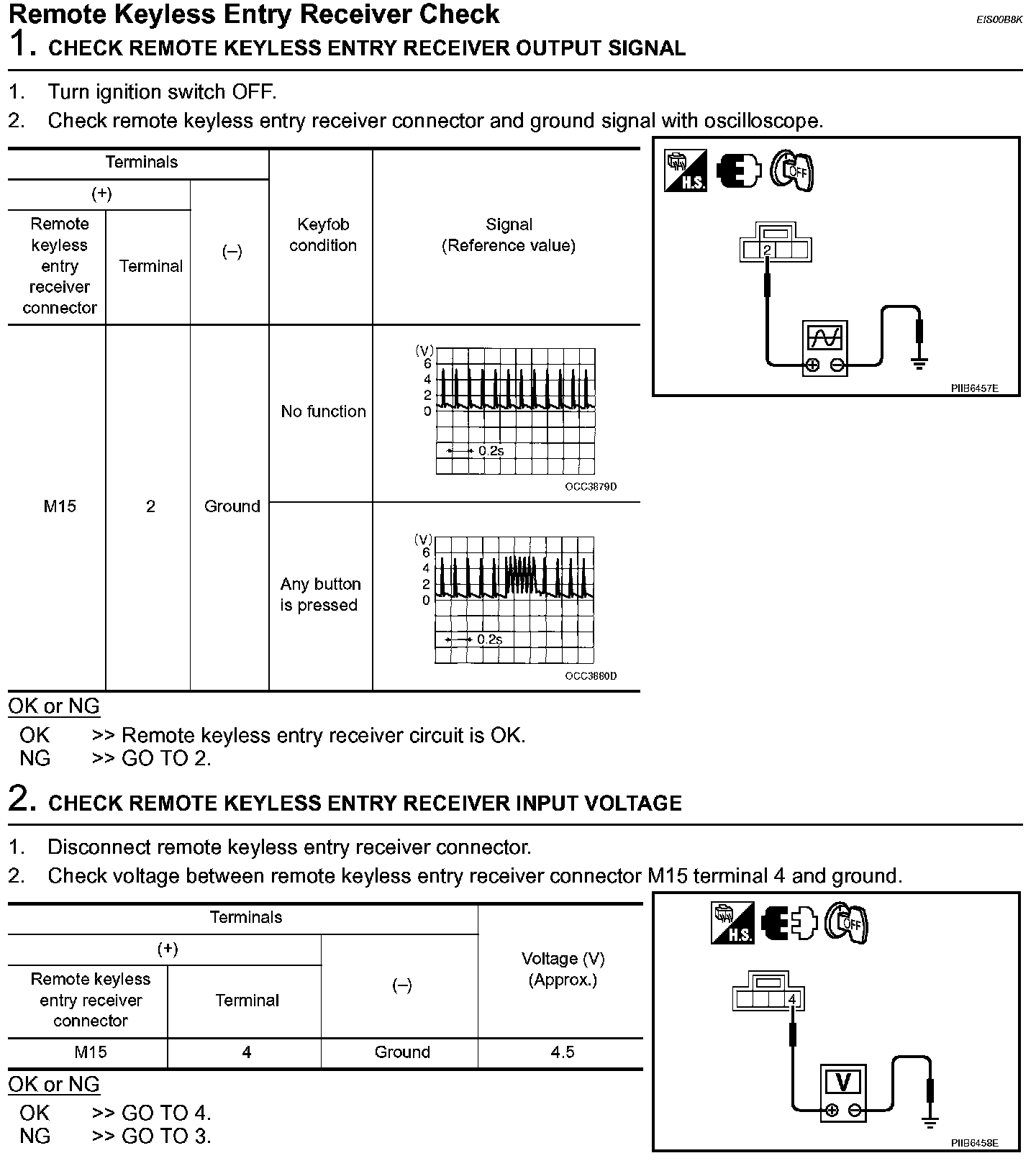

Remote Keyless Entry Receiver Check (Steps 1 - 2):

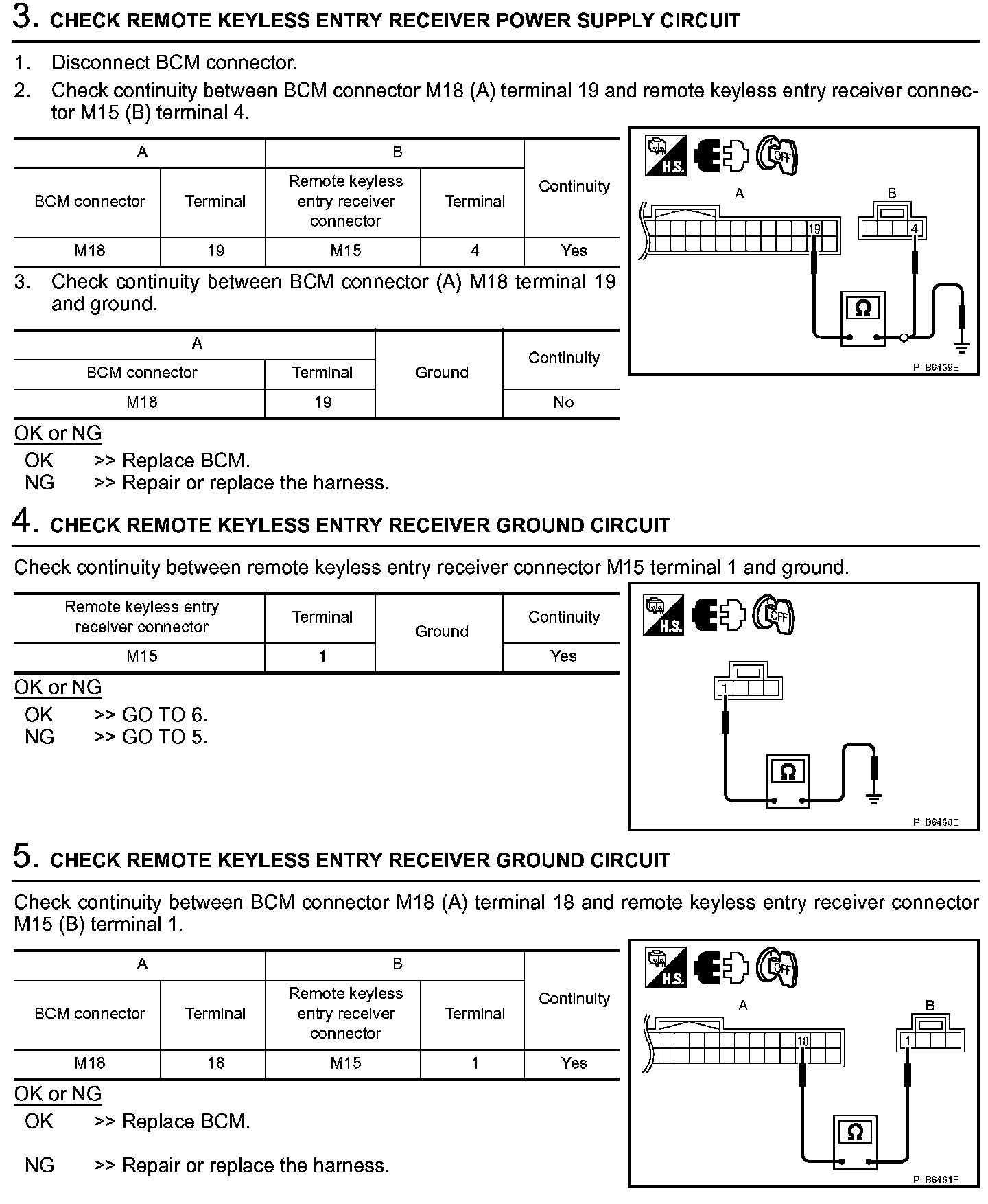

Remote Keyless Entry Receiver Check (Steps 3 - 5):

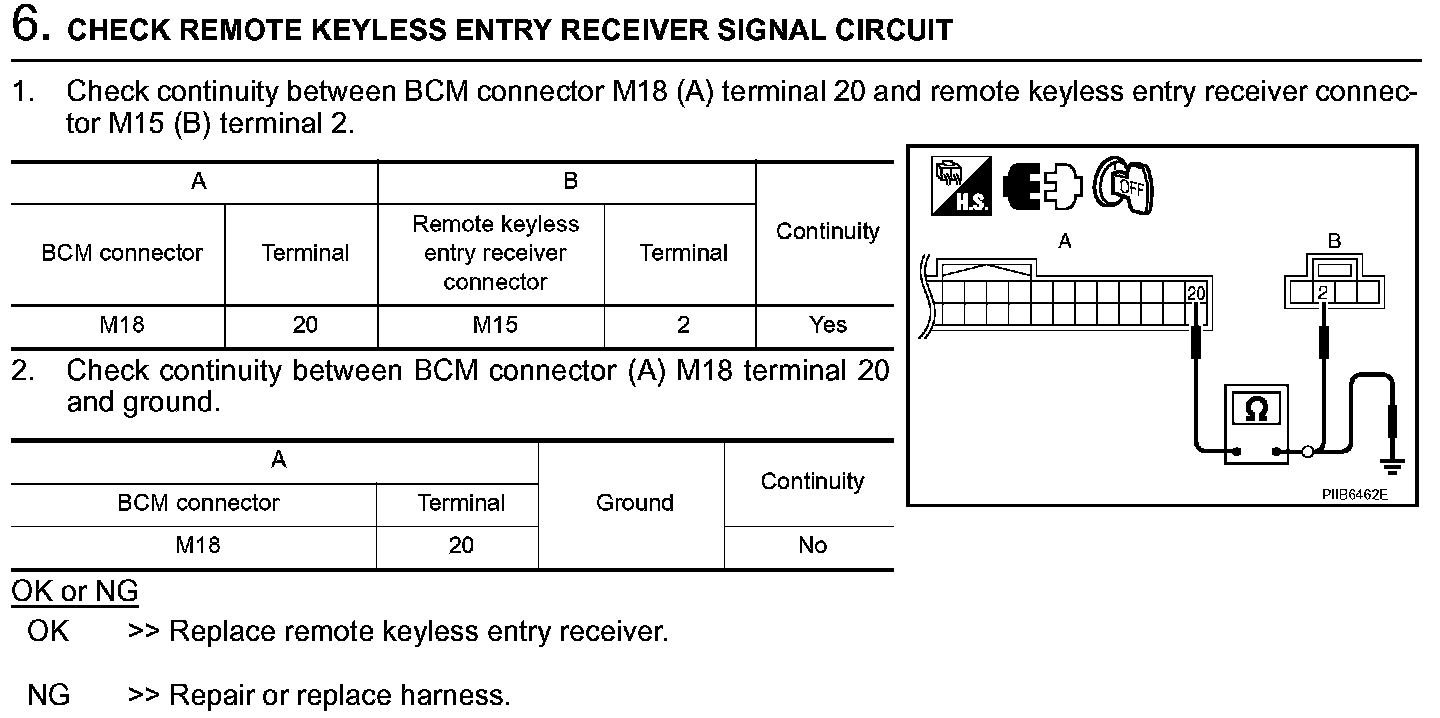

Remote Keyless Entry Receiver Check (Step 6):
