Trunk Opener Request Switch Check
Trunk Opener Request Switch Check

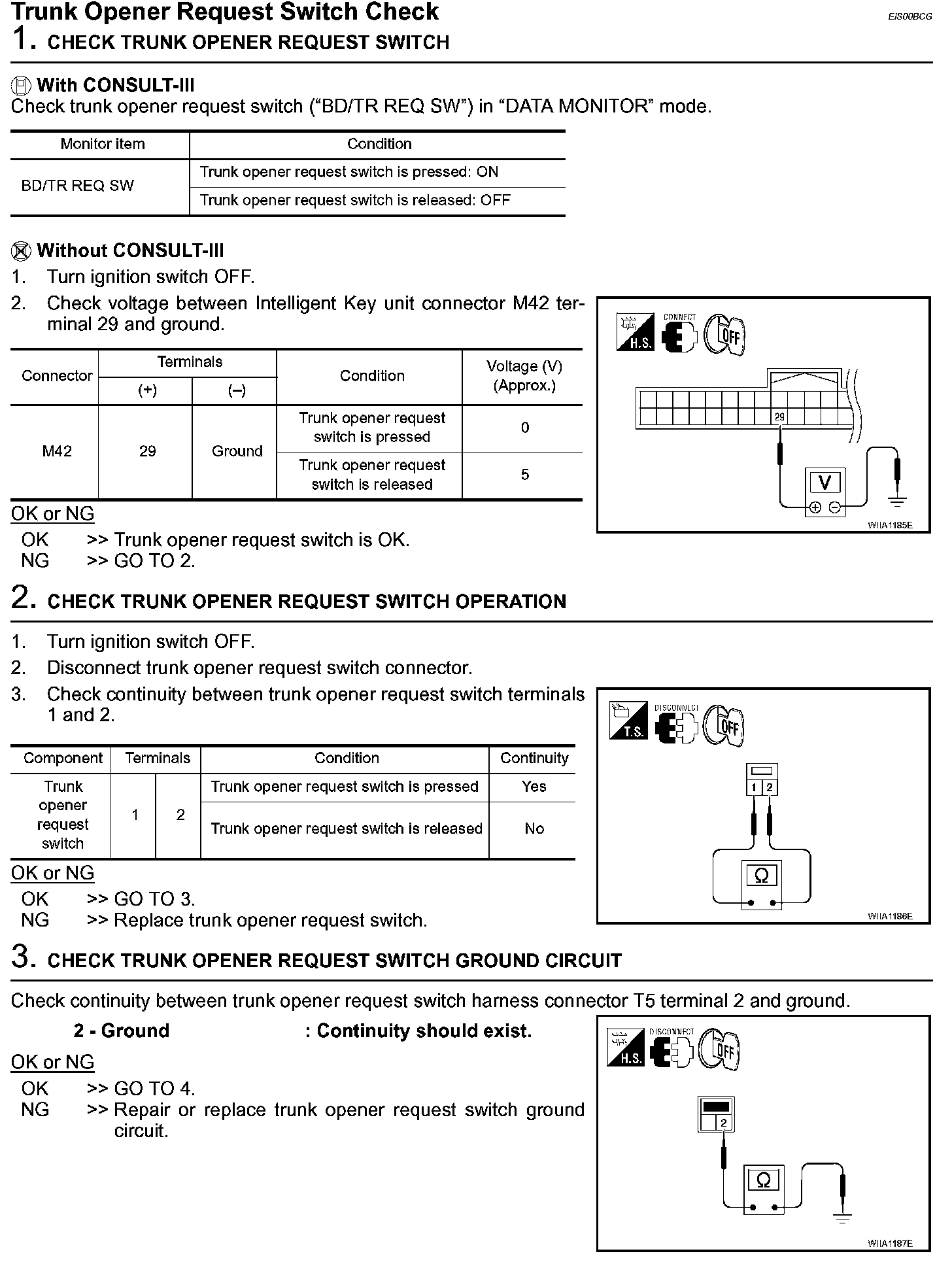

Trunk Opener Request Switch Check (Steps 1 - 3):

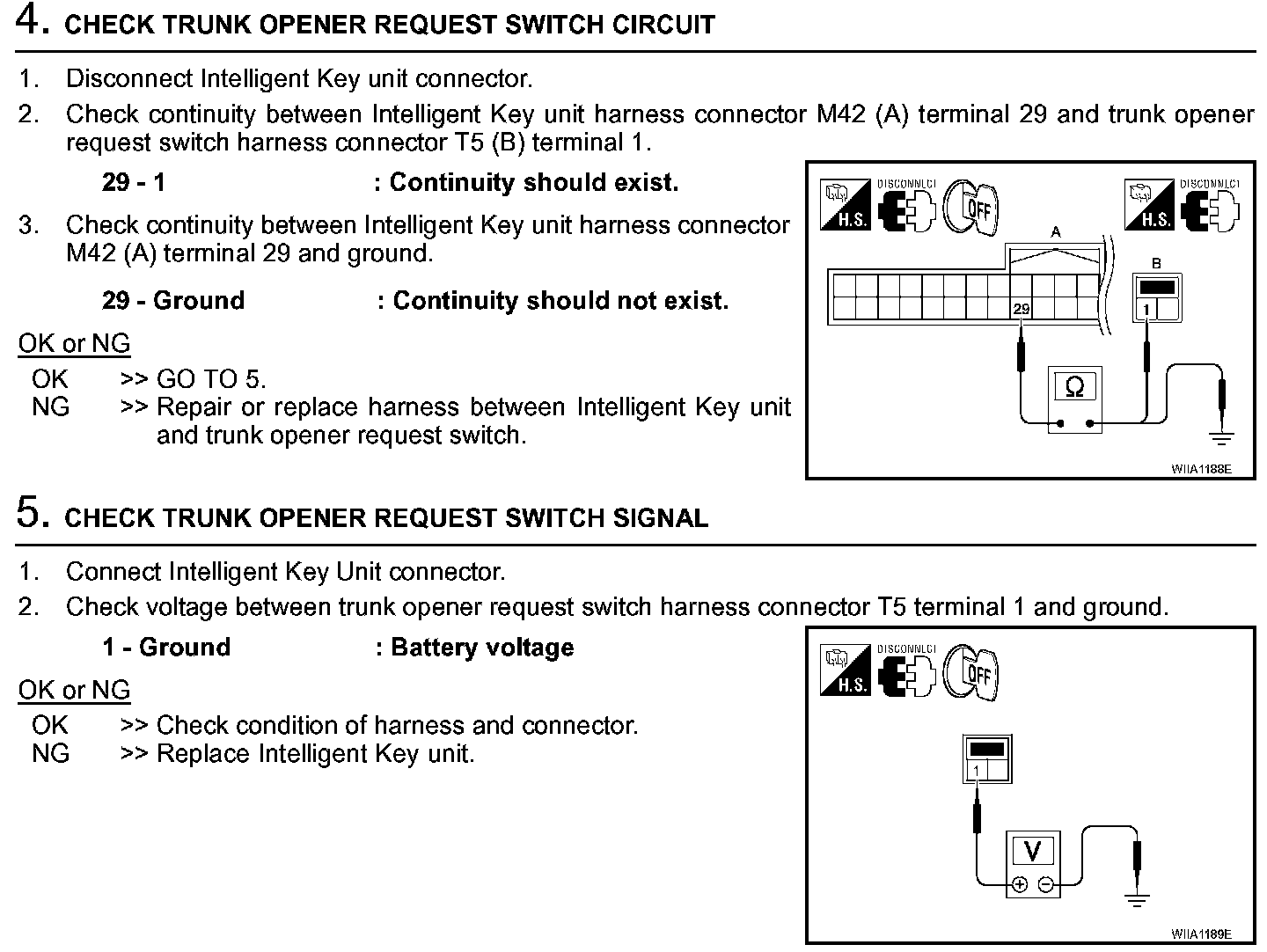

Trunk Opener Request Switch Check (Steps 4 - 5):
