Rear Shelf: Service and Repair

REAR PARCEL SHELF FINISHER

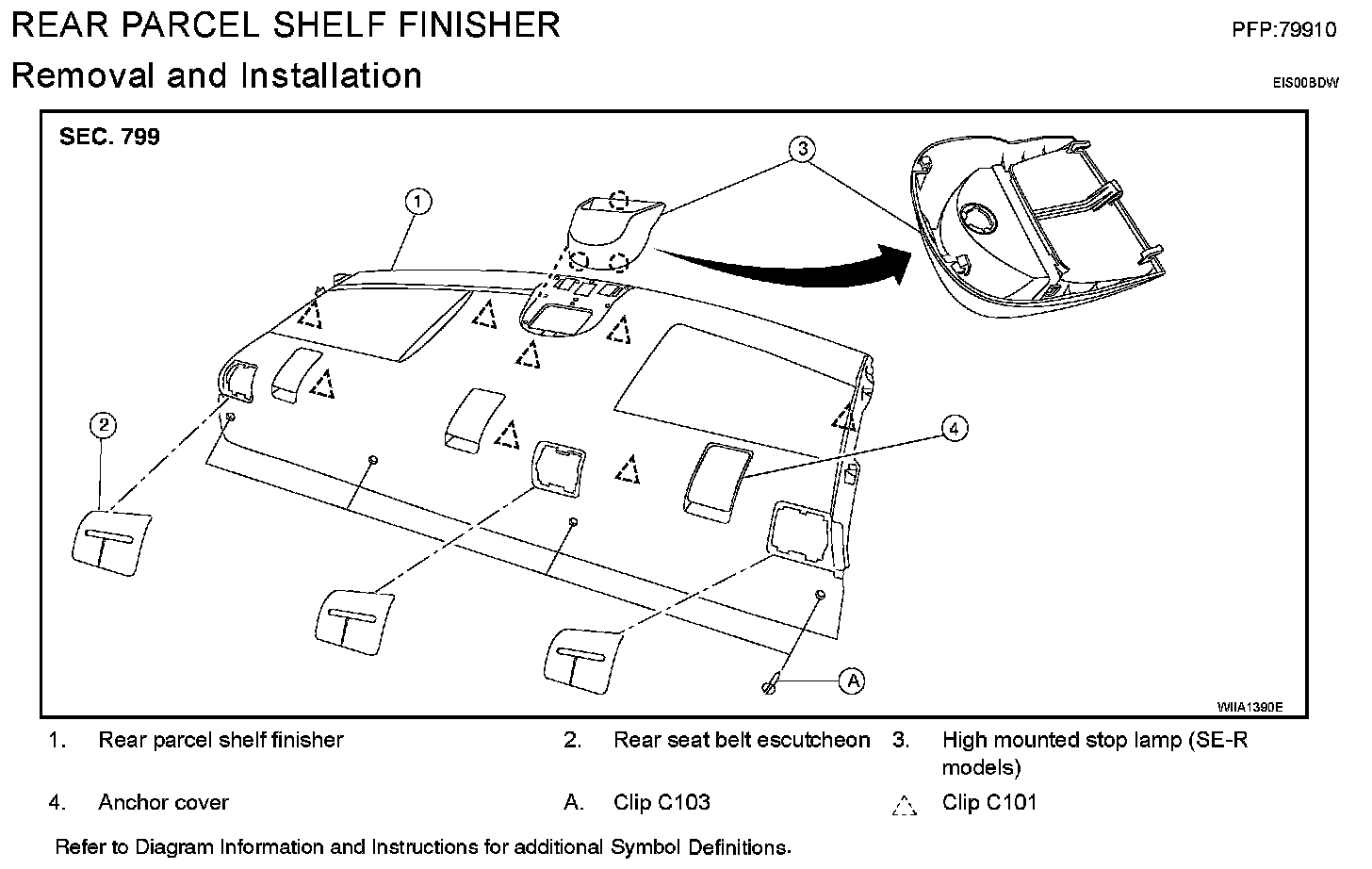

Exploded View EI-36:

Removal and Installation

REMOVAL
1. Fold rear seat cushion and seat back into forward most position.
2. Remove rear seat belt lower anchor bolts.
3. Release the tabs and remove the rear seat belt escutcheon RH/LH/Center.
4. Remove rear kicking plate lower RH/LH, rear kicking plate upper RH/LH, and rear pillar finisher. Refer to "BODY SIDE TRIM".
5. For SE-R models:
1. Release the clips and remove the high mounted stop lamp from the rear parcel shelf finisher.
2. Rotate lamp and remove, then remove high mounted stop lamp.

6. Remove the clips and rear parcel shelf finisher.

INSTALLATION
Installation is in the reverse order of removal.
