Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Component Tests and General Diagnostics >> Check Trunk Opener Request Switch Circuit (With Intelligent Key)

Check Trunk Opener Request Switch Circuit (With Intelligent Key)

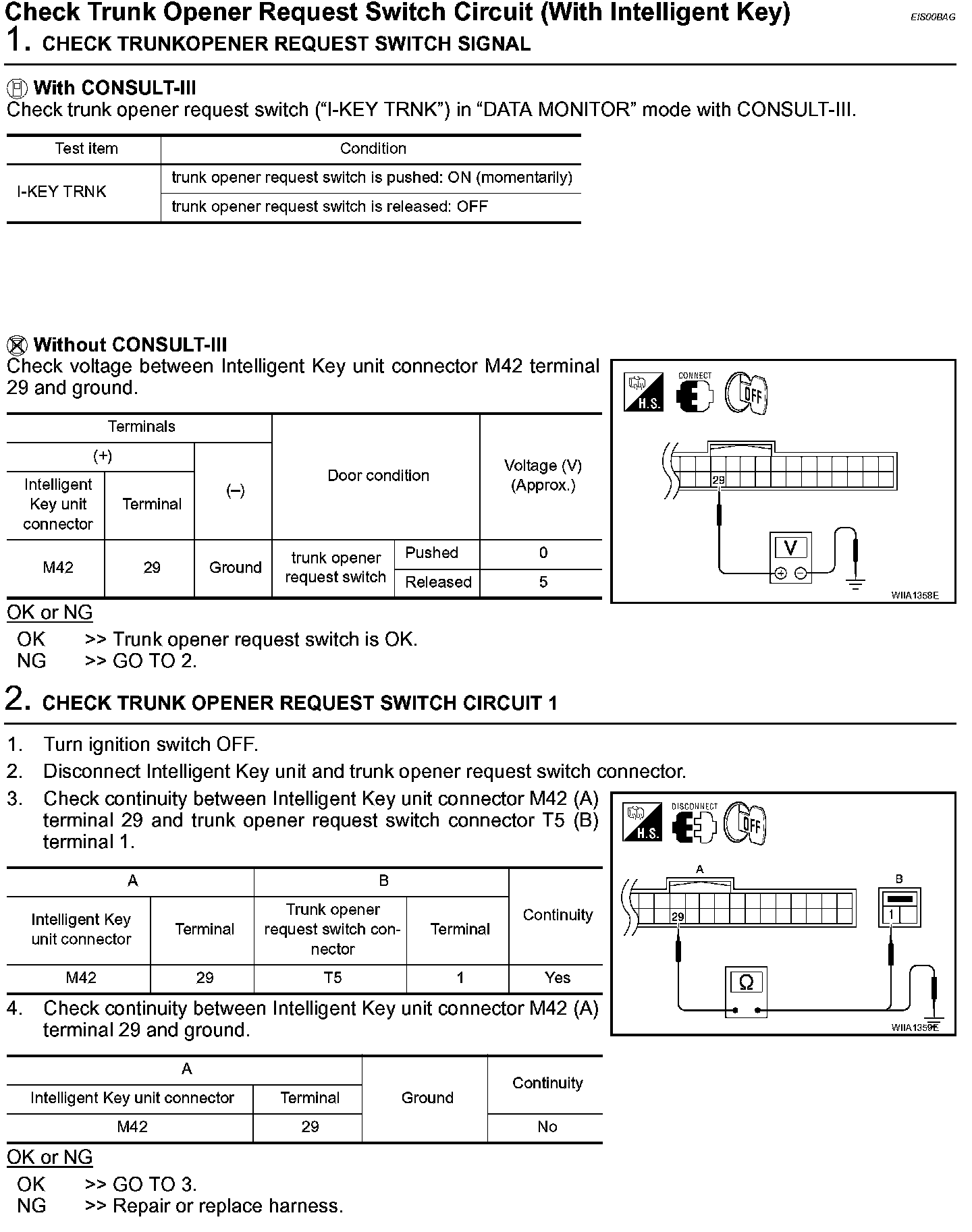

Check Trunk Opener Request Switch Circuit (With Intelligent Key) (Steps 1 - 2):

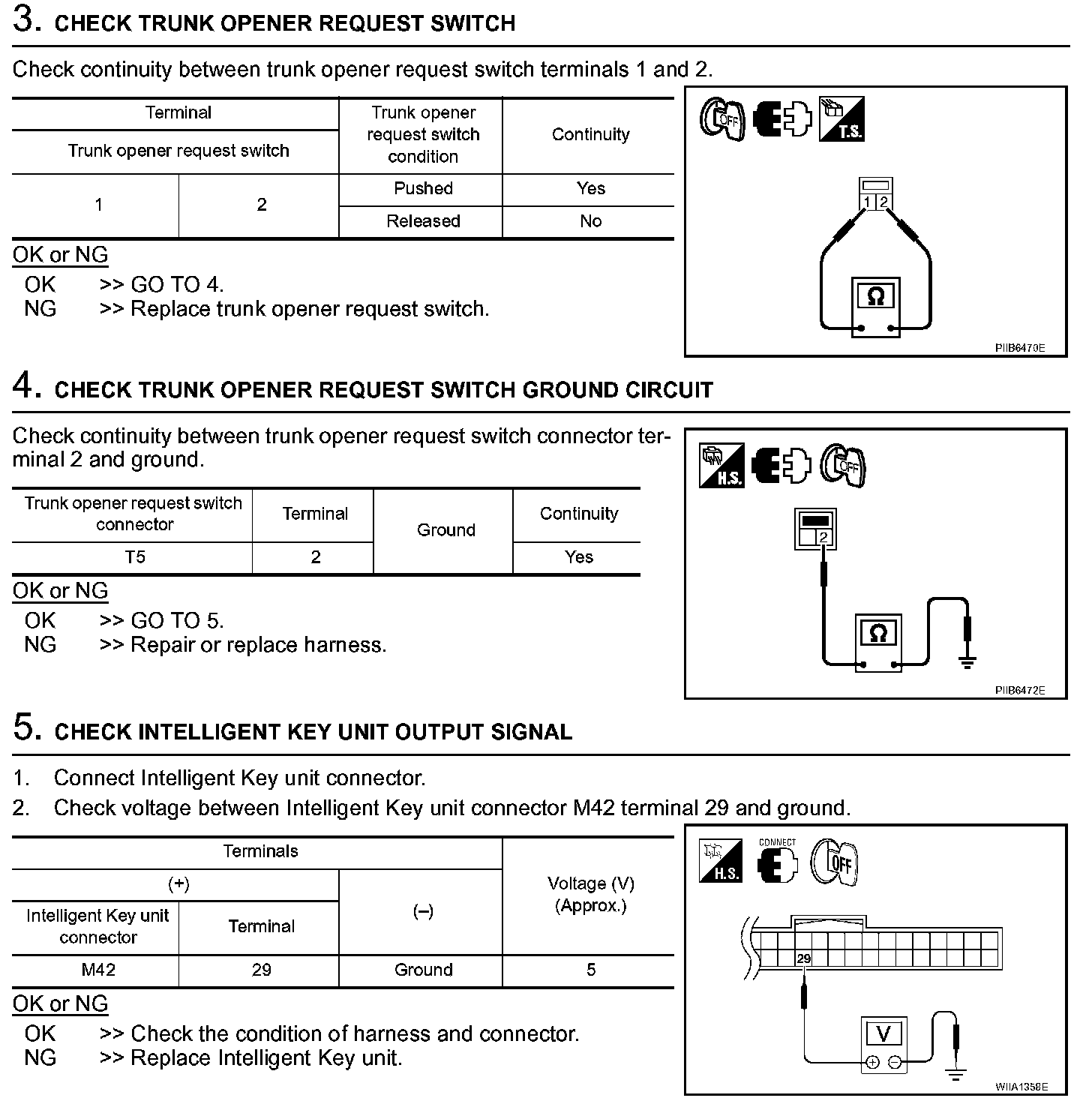

Check Trunk Opener Request Switch Circuit (With Intelligent Key) (Steps 3 - 5):
