Trunk / Liftgate: Service and Repair

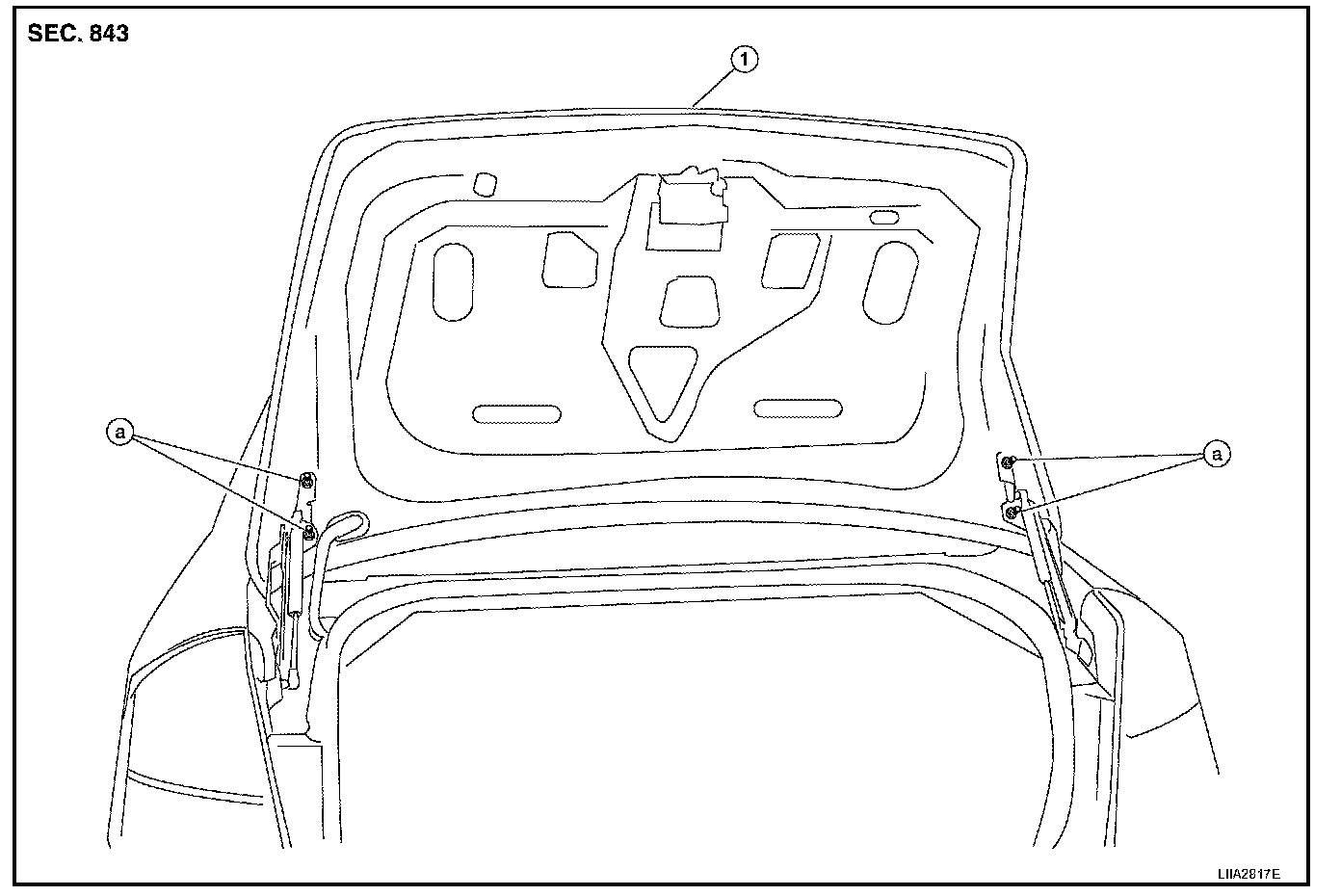

Trunk Lid Assembly

REMOVAL
1. Remove the trunk lid finisher.
2. Remove the trunk lid wire harness.




3. Remove the nuts (a) and the trunk lid assembly (1).

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: After installing, apply touch-up paint (body color) to the head of the hinge nuts.
