Fuel Door: Service and Repair

FUEL FILLER LID OPENER

Removal
1. Remove trunk side finisher (RH).

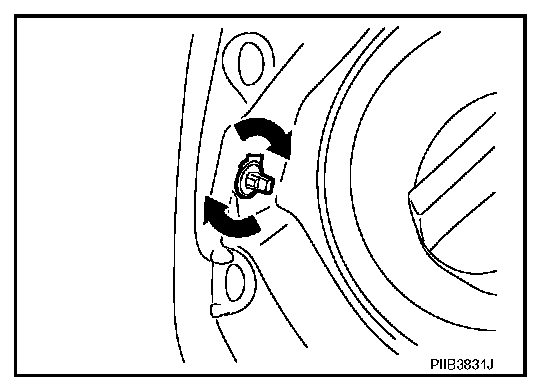

2. Remove fuel filler lock.
3. Remove rear seat cushion assembly.
4. Remove front kicking plate and rear kicking plate. Refer to "BODY SIDE TRIM".
5. Remove the trunk and fuel lid opener control cover.

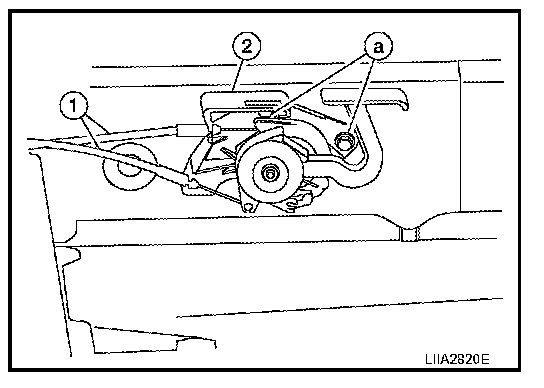

6. Remove the bolts (a), disconnect the cables (1), and remove the trunk and fuel lid opener control (2).

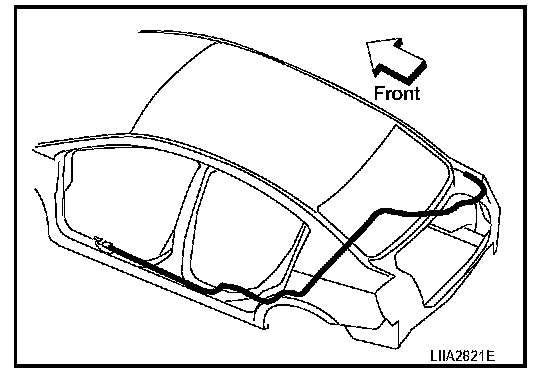

7. Remove fuel filler lid opener cable and clips from the vehicle.

Installation
Installation is in the reverse order of removal.
