Front Door Panel: Service and Repair

DOOR FINISHER

Removal and Installation

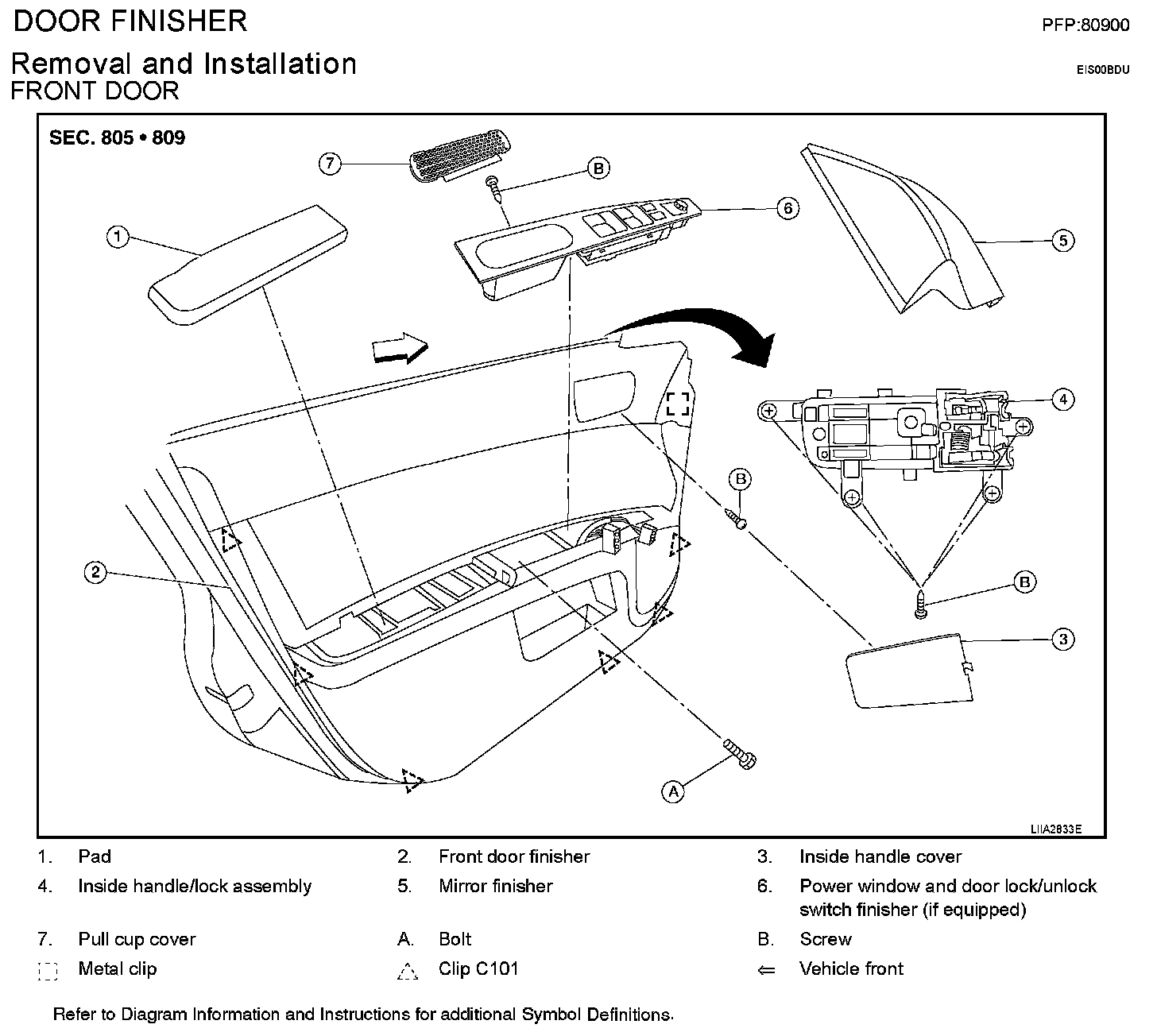

Exploded View EI-29:

FRONT DOOR

Removal
1. Open front door and front door window.
2. Disconnect the negative battery cable.
3. Release the inside handle cover pawls and remove, then remove the screw.
4. Release the pull cup cover pawls and remove, then remove the screw.
5. Insert a suitable tool into back edge of front door power window and door lock/unlock switch finisher. Gently pry upward to release the clips and remove the finisher.
- If equipped, insert a suitable tool between door finisher and manual door window crank handle to release clip, then remove handle.

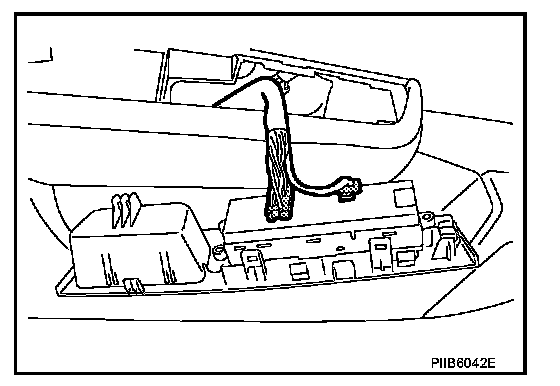

6. Disconnect front door power window and door lock/unlock switch harness connector (if equipped).
7. Remove the front door finisher bolt.

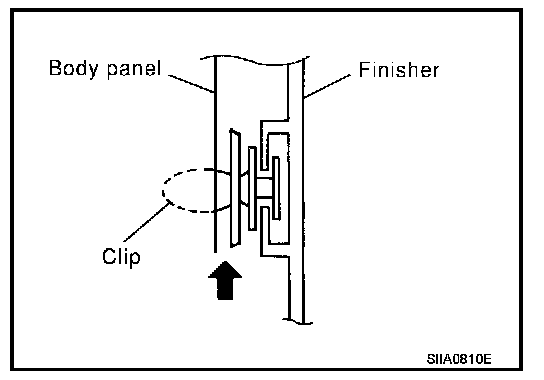

8. Release the clips and lift front door finisher upward to remove it from door body panel.

Installation
Installation is in the reverse order of removal.
