Cowl Moulding / Trim: Service and Repair

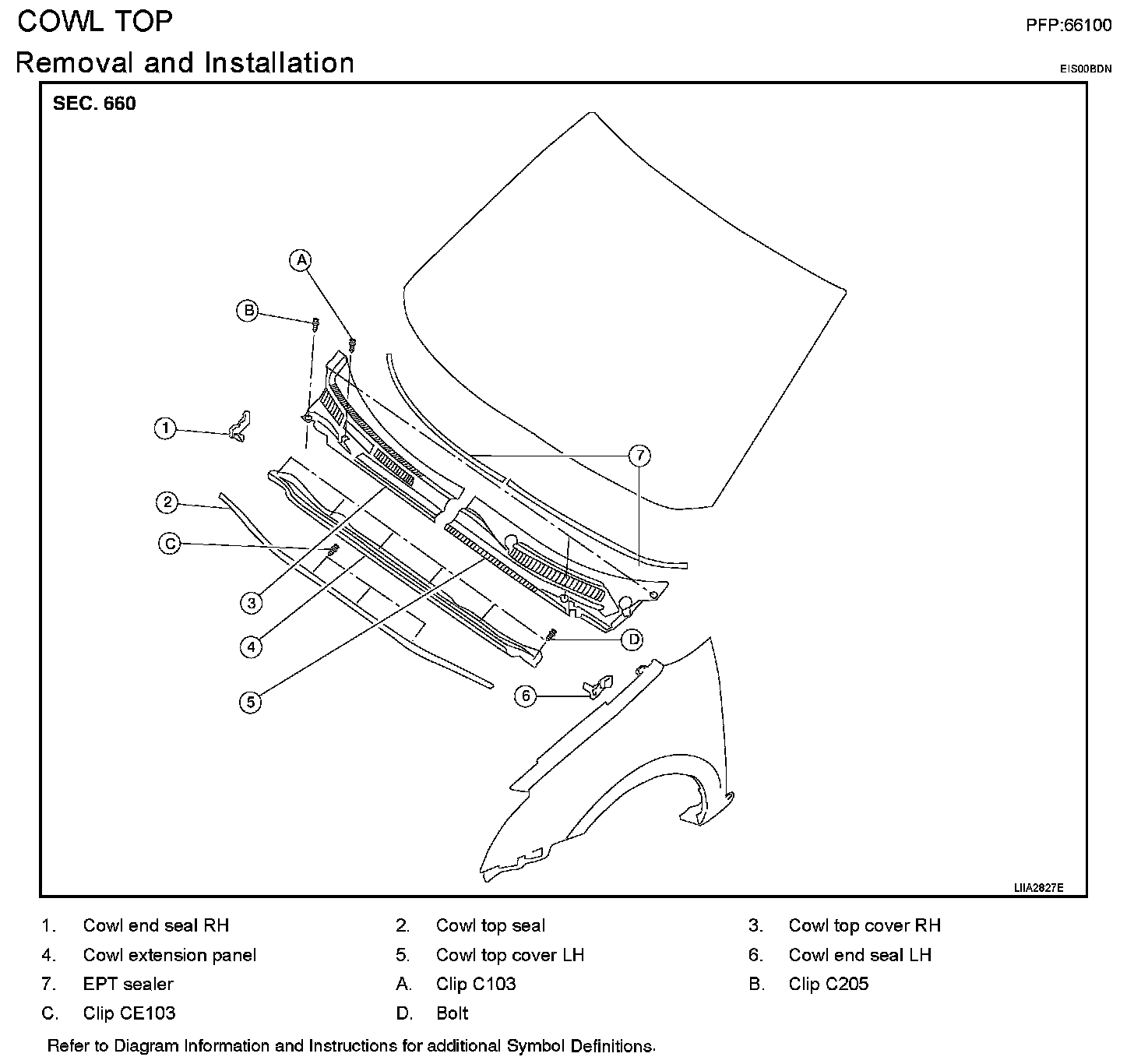

COWL TOPExploded View EI-19:
Removal and Installation
REMOVAL
1. Remove front wiper arm RH/LH.
2. Disconnect washer tube.
3. Release the clips and remove cowl top seal.
4. Remove the clips and cowl top cover RH/LH.

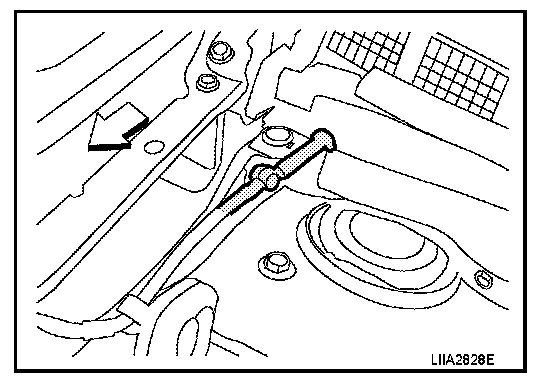

5. Disconnect and remove the front wiper motor and linkage assembly.

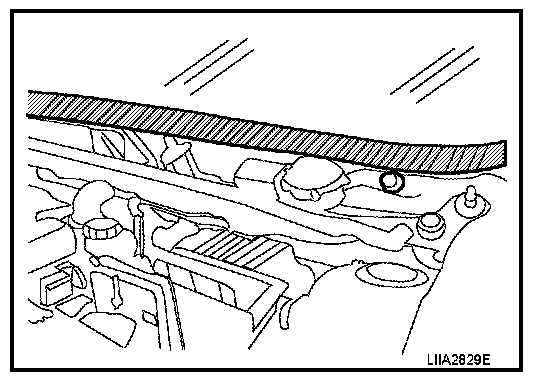

CAUTION: To avoid damage, make sure to cover the lower edge of windshield with suitable protection material.
6. Remove the bolts and cowl extension panel.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
- For wiper arm RH/LH installation and adjustment, Wiper Arm
- Always replace EPT sealer and double-faced adhesive tape when installing cowl top cover.
