Pinout Values and Diagnostic Parameters

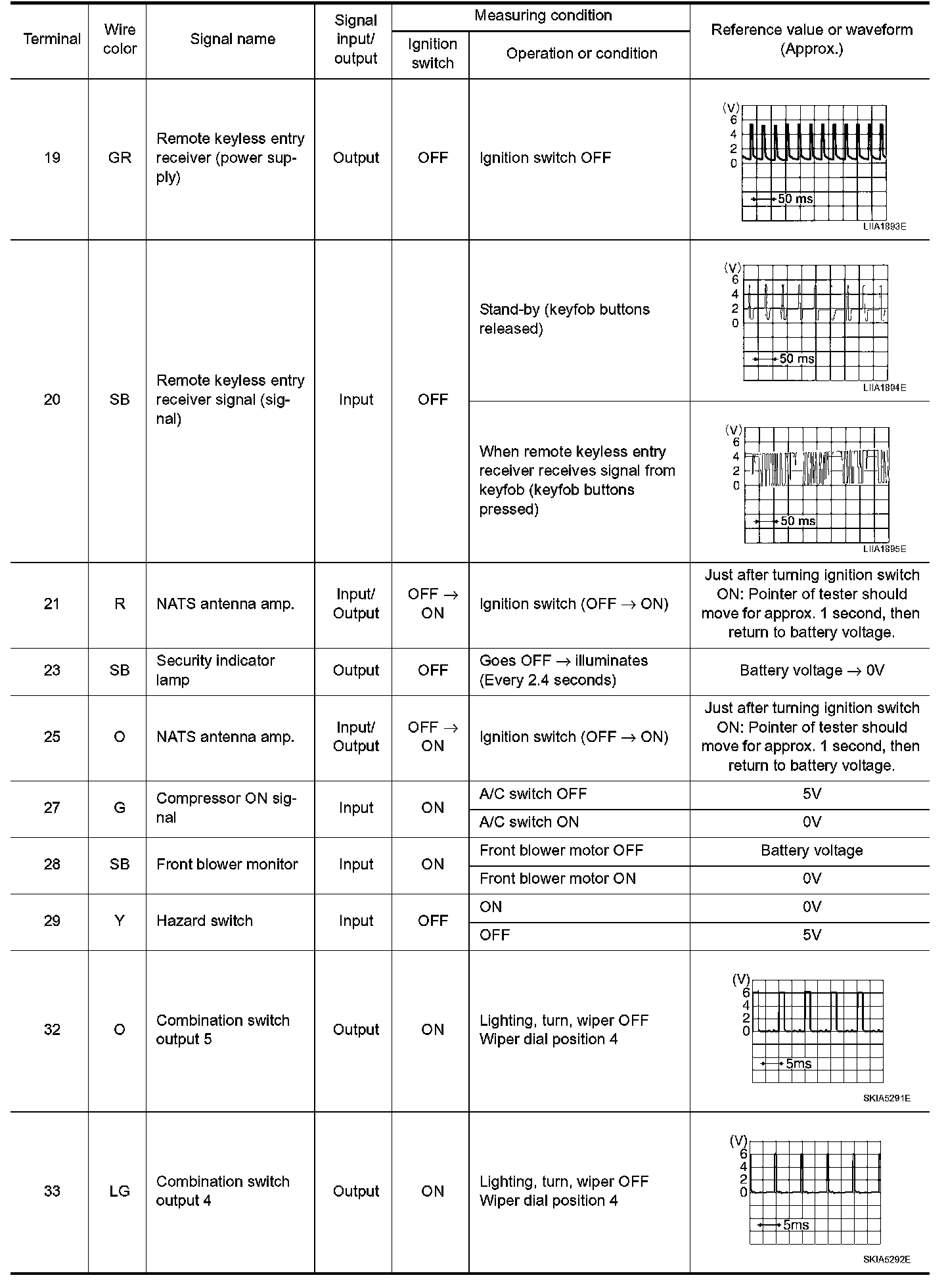

Terminals And Reference Values For BCM (Part 1):

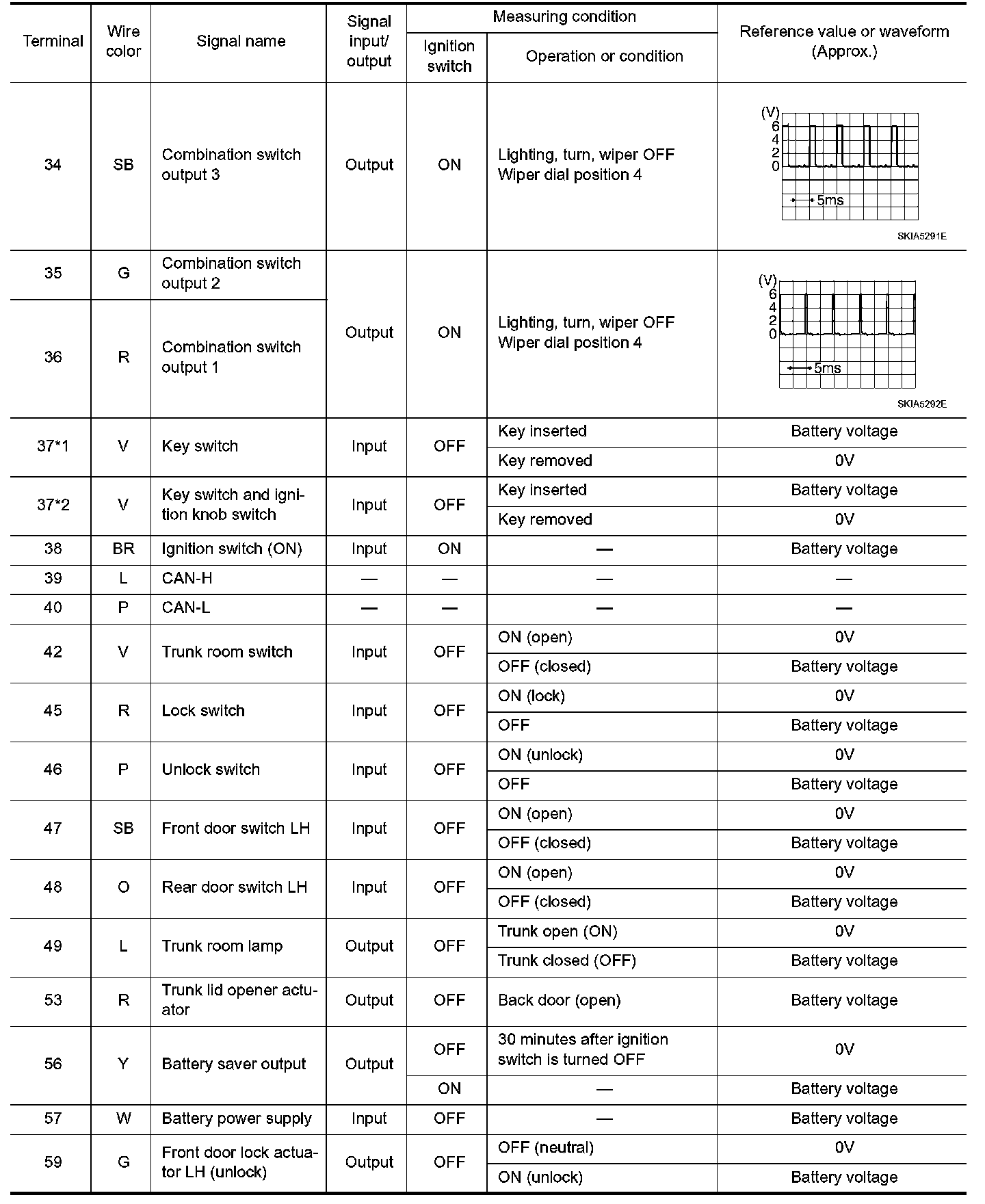

Terminals And Reference Values For BCM (Part 2):



Terminals And Reference Values For BCM (Part 3):

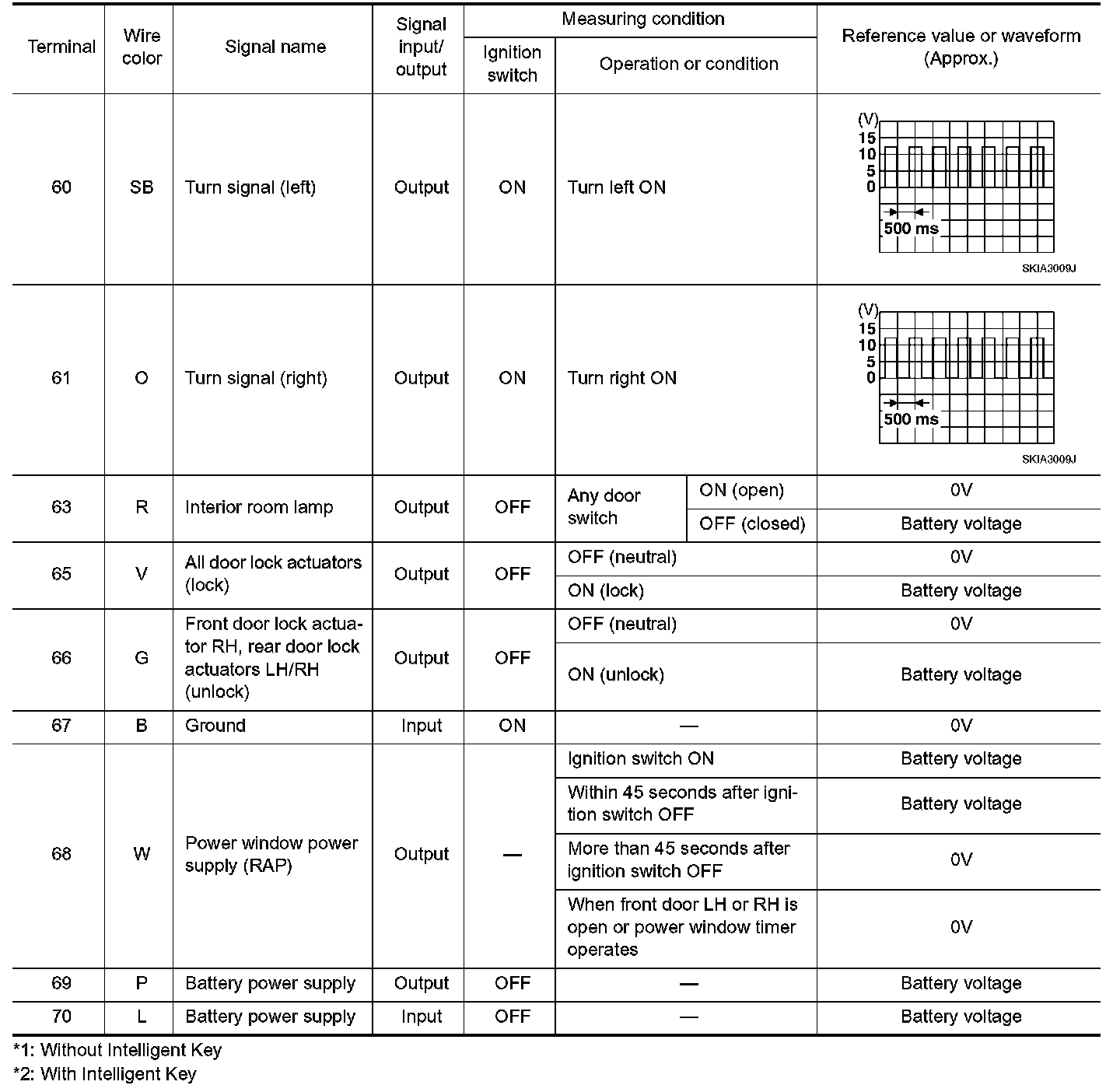

Terminals And Reference Values For BCM (Part 4):
