BCM Power Supply and Ground Circuit Check
BCM Power Supply and Ground Circuit Check

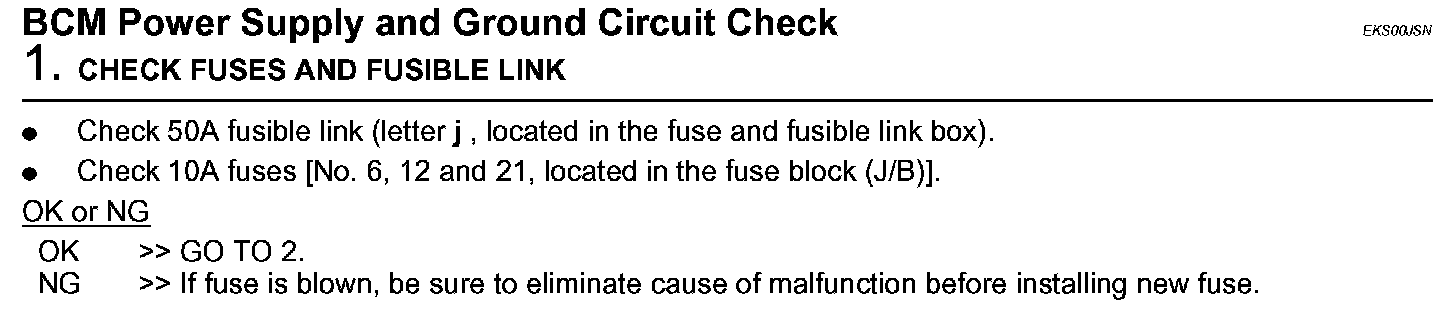

BCM Power Supply And Ground Circuit Check (Step 1):

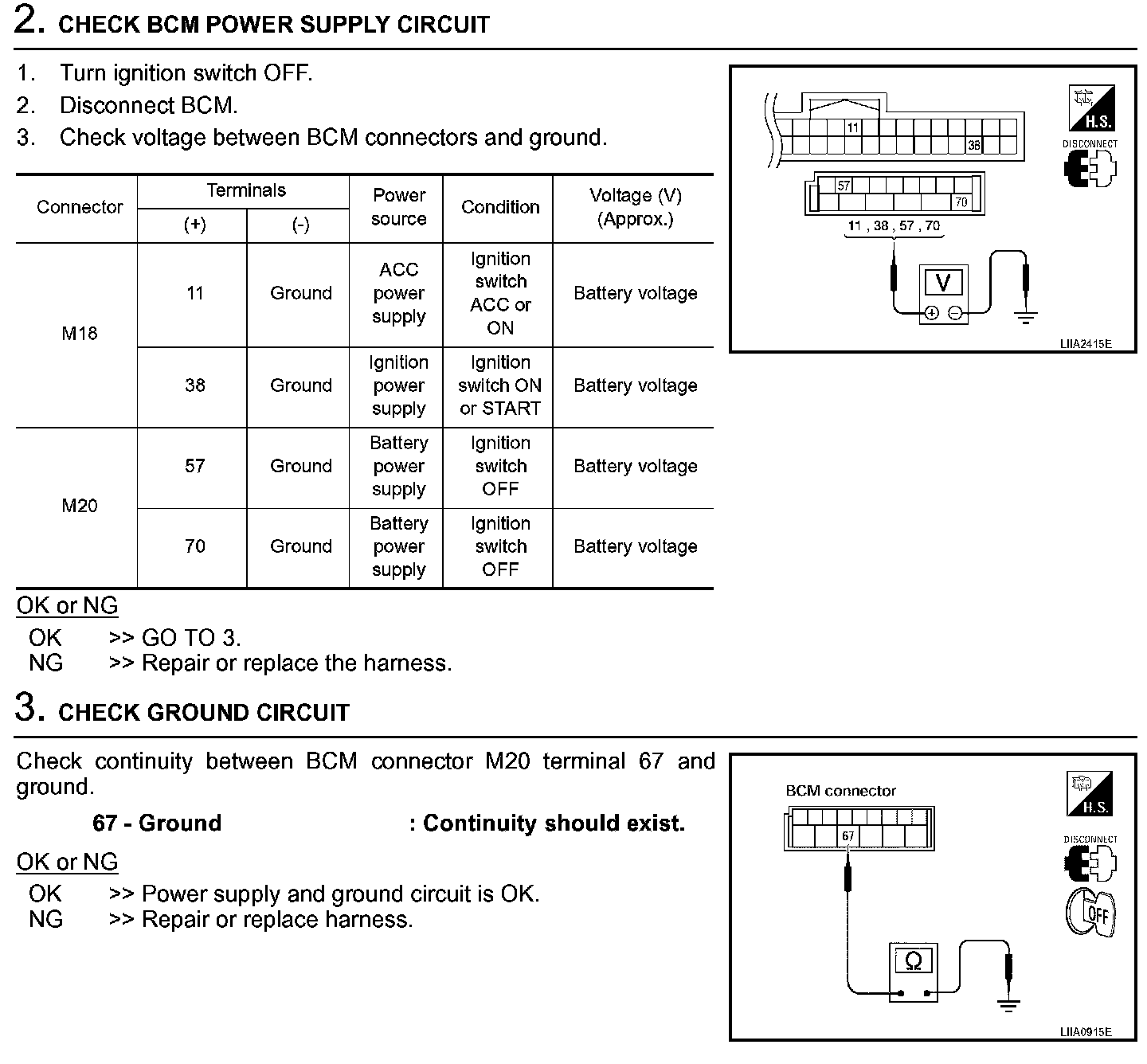

BCM Power Supply And Ground Circuit Check (Steps 2 - 3):
