Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Sound Is Not Heard From Front Door Speaker or Front Tweeter (Base and Mid System)

Sound Is Not Heard From Front Door Speaker or Front Tweeter (Base and Mid System)

Sound Is Not Heard From Front Door Speaker Or Front Tweeter (Base And Mid System) (Step 1):

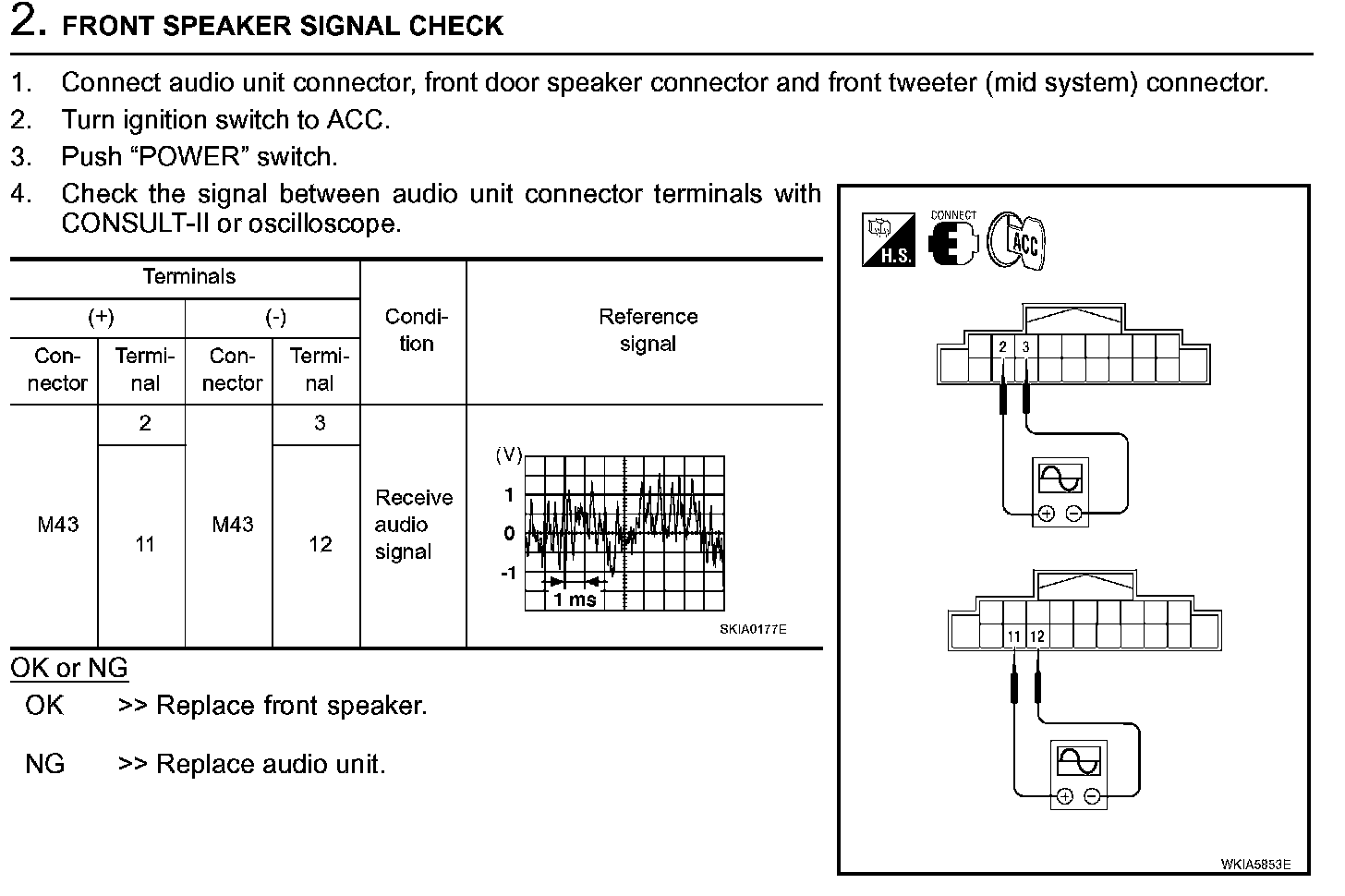

Sound Is Not Heard From Front Door Speaker Or Front Tweeter (Base And Mid System) (Step 2):
