Terminals and Reference Values For Audio Unit (Mid System)

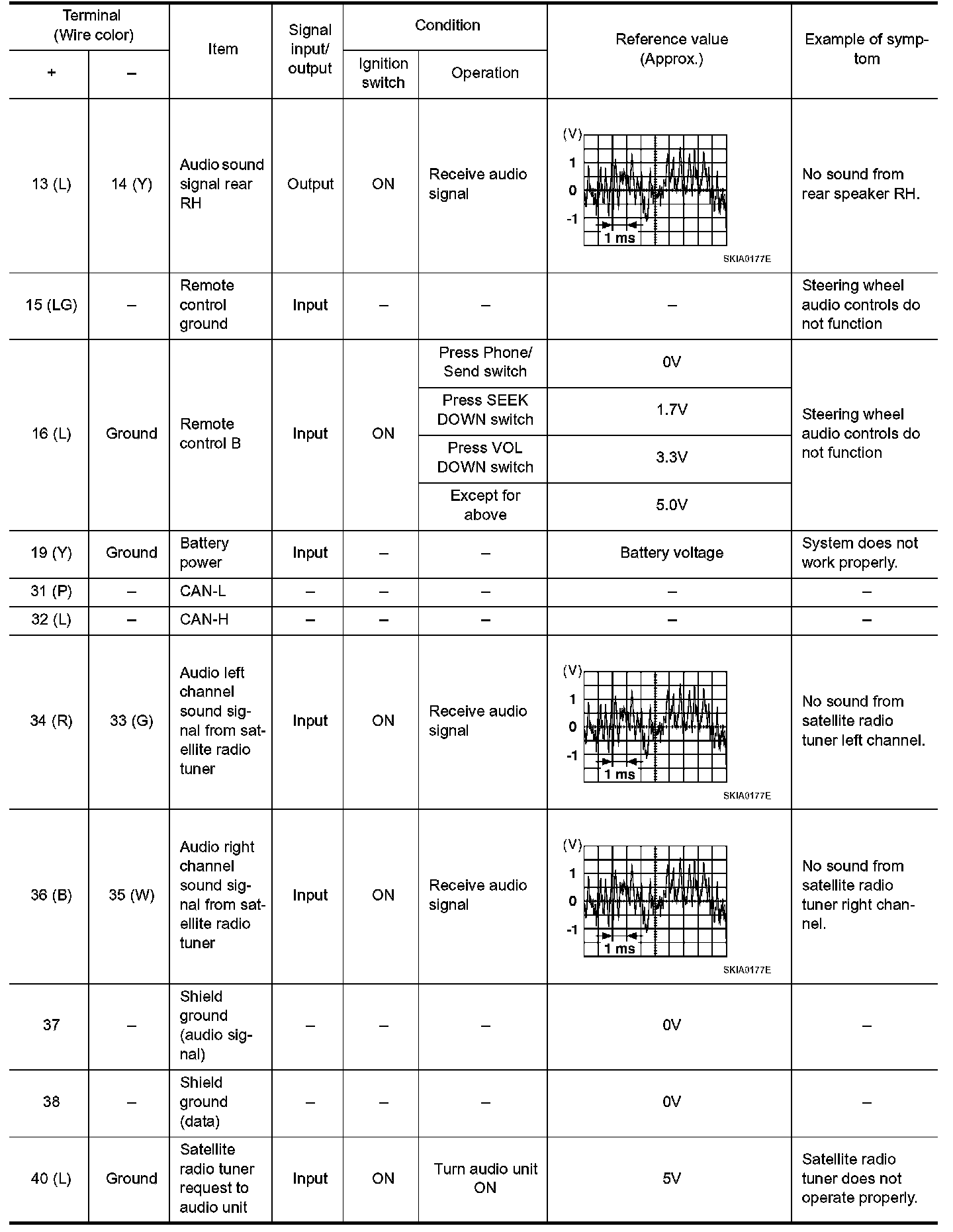

Terminals And Reference Values For Audio Unit (Mid System) (Part 1):

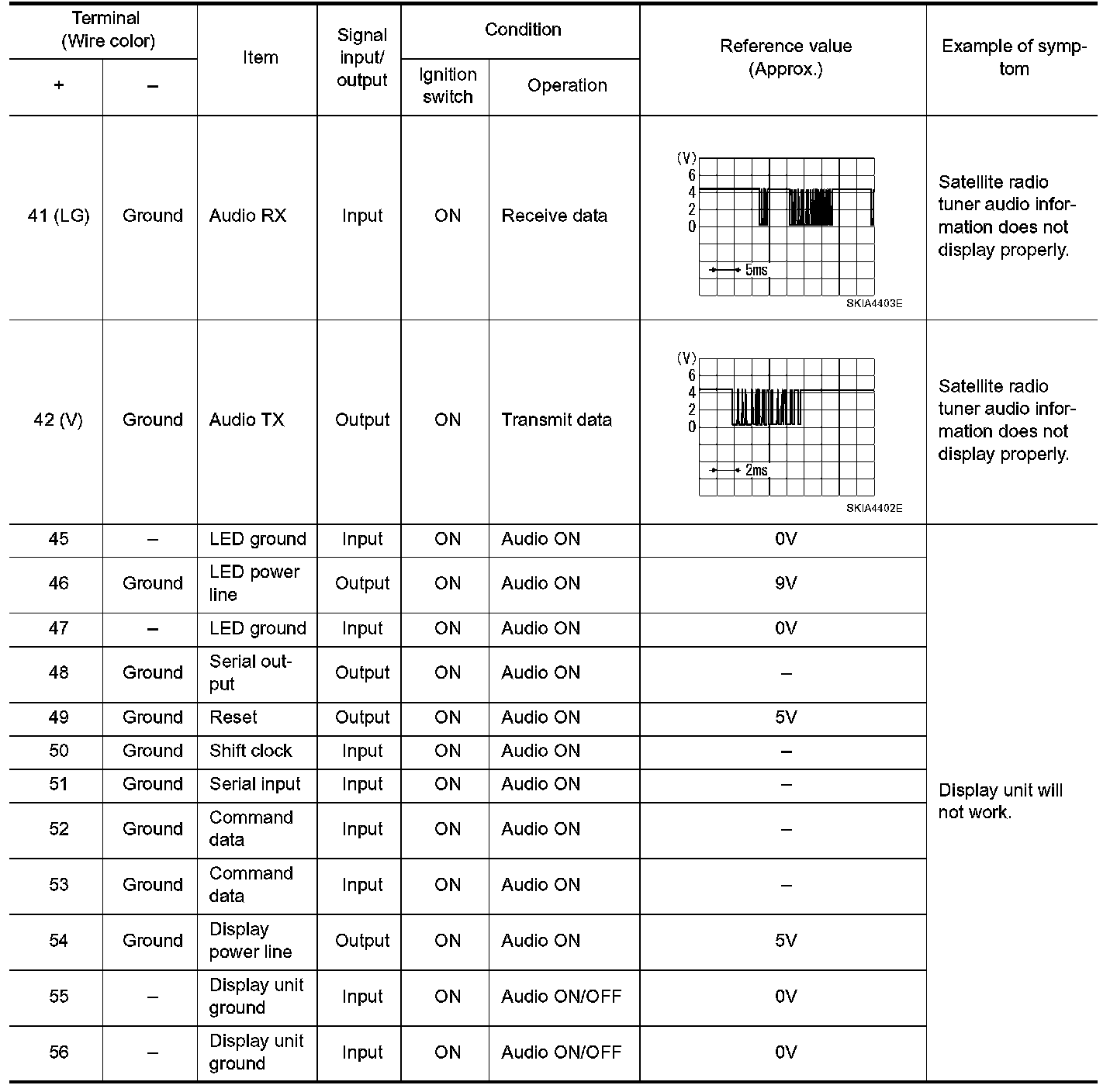

Terminals And Reference Values For Audio Unit (Mid System) (Part 2):



Terminals And Reference Values For Audio Unit (Mid System) (Part 3):
