Terminals and Reference Values For Audio Amplifier (Premium System)

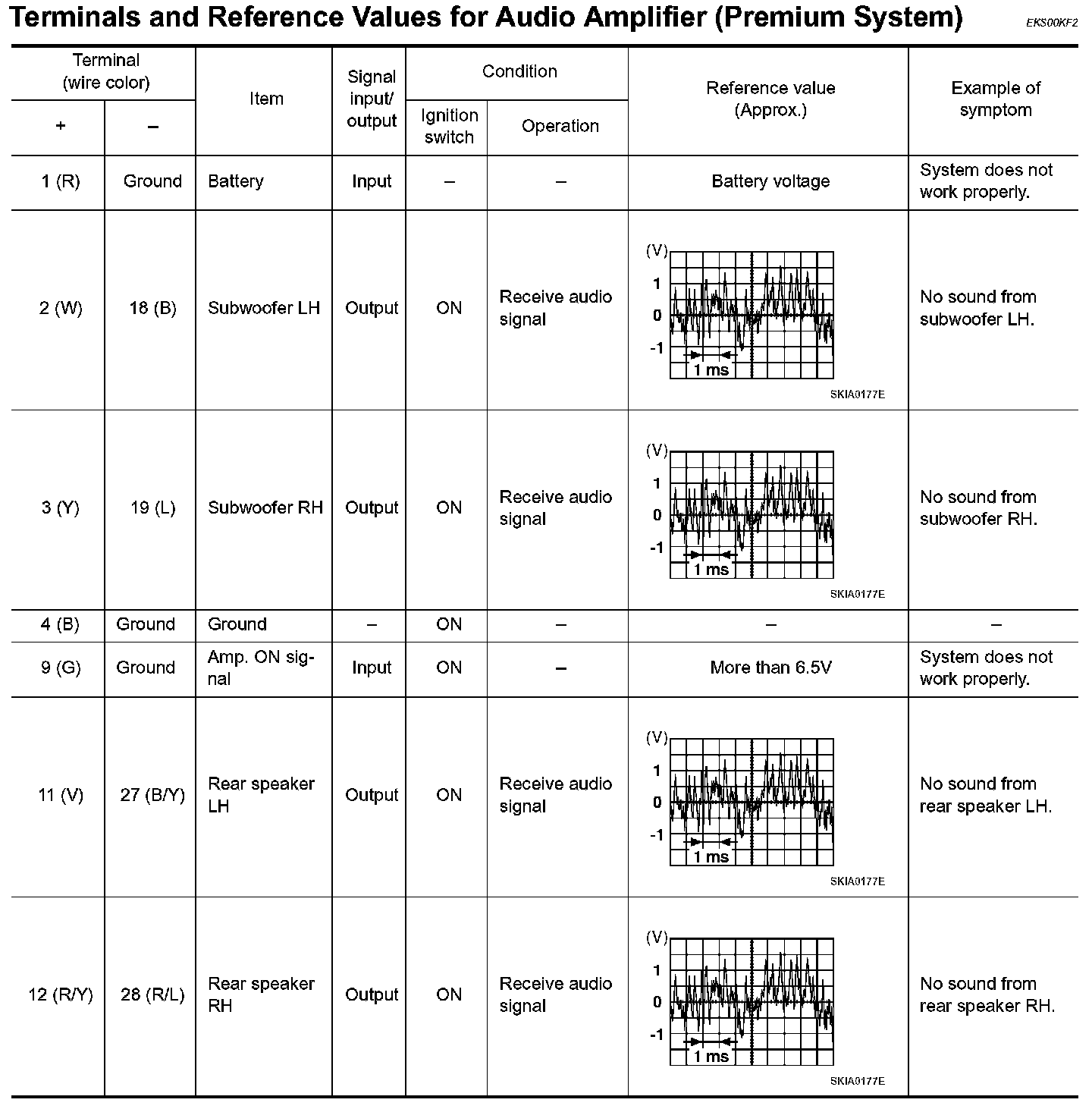

Terminals And Reference Values For Audio Amplifier (Premium System) (Part 1):

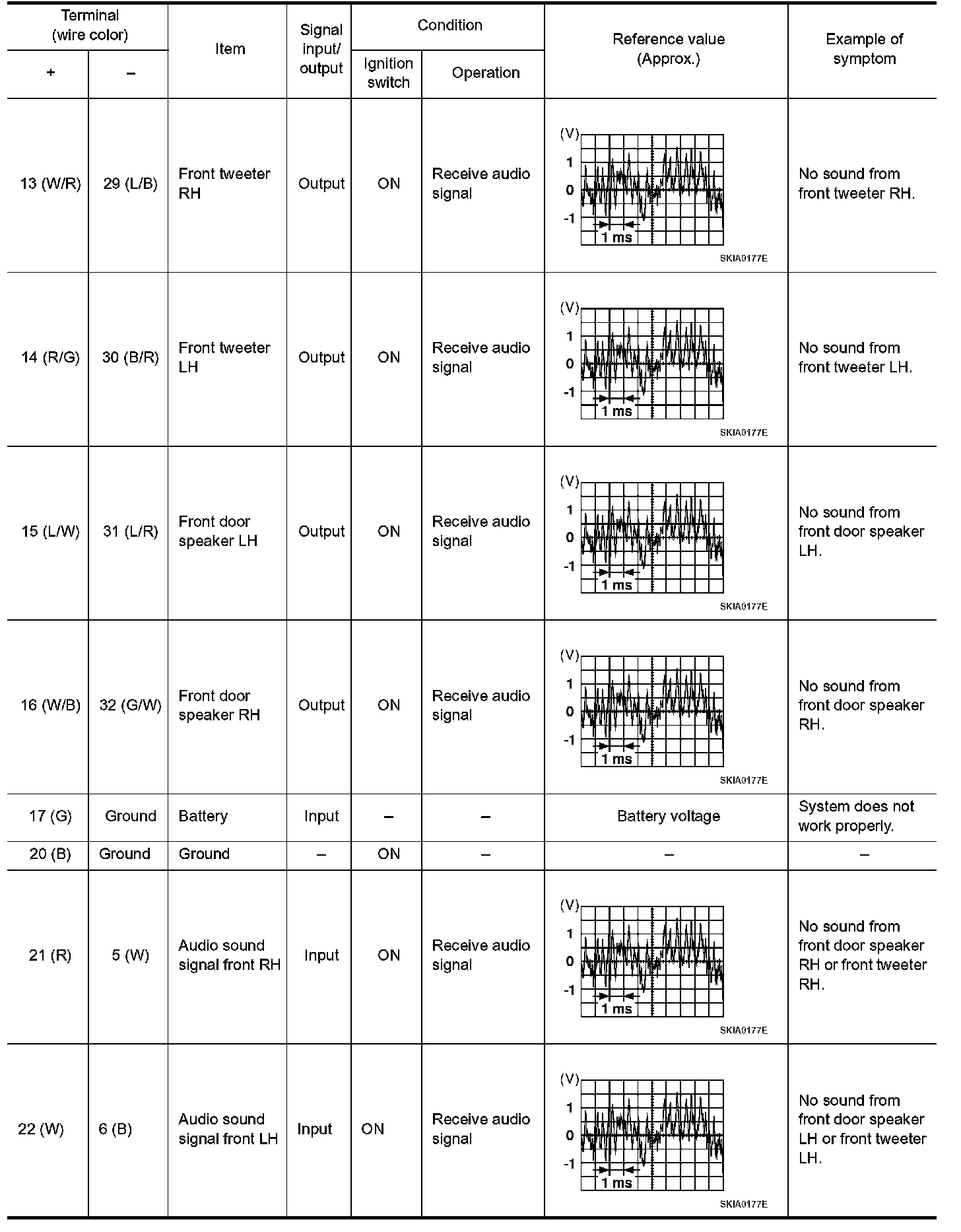

Terminals And Reference Values For Audio Amplifier (Premium System) (Part 2):

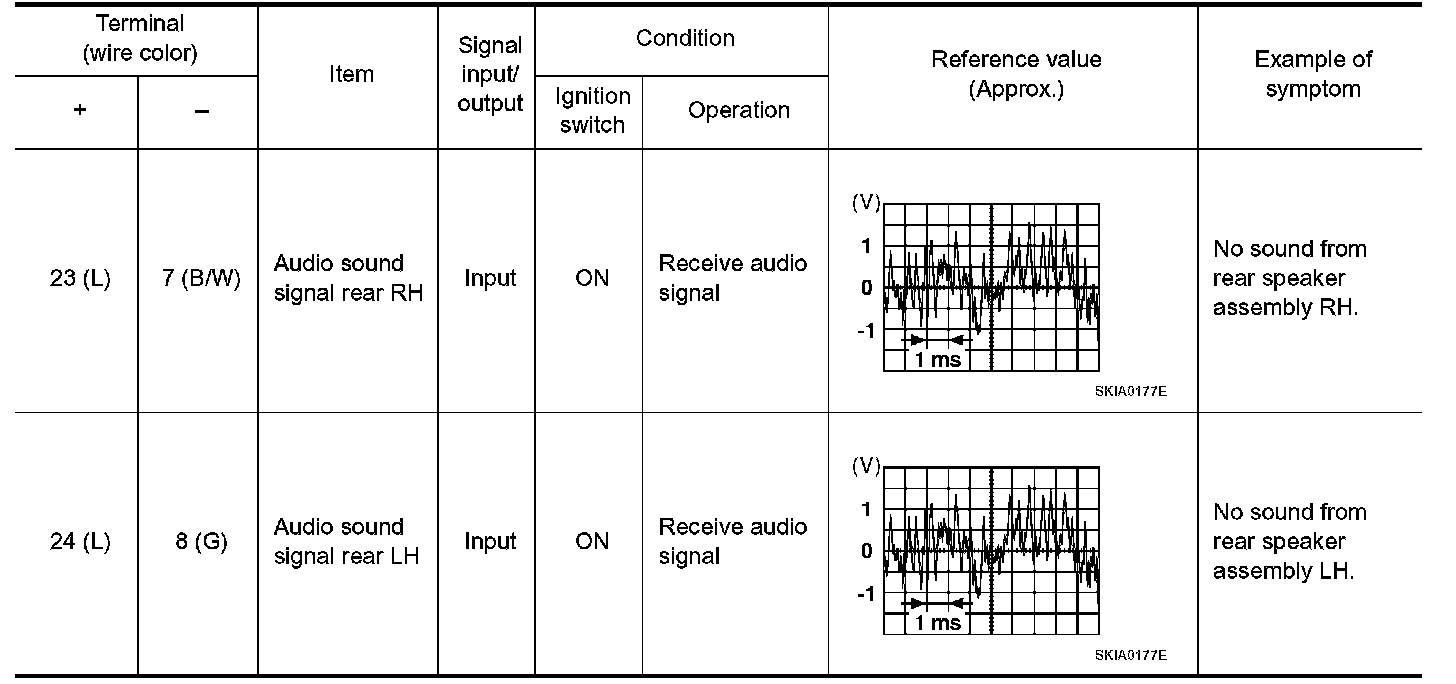

Terminals And Reference Values For Audio Amplifier (Premium System) (Part 3):
