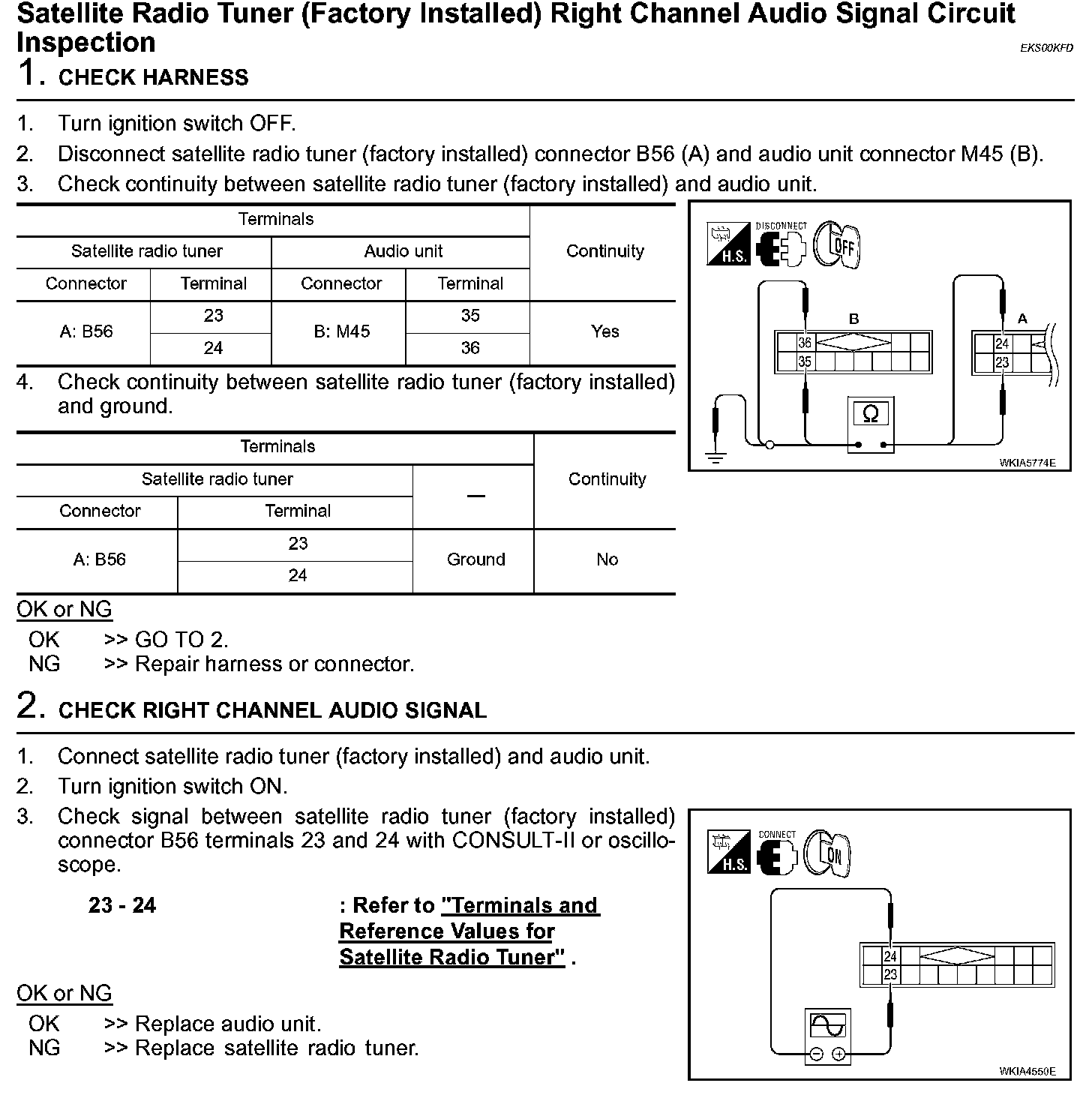

Satellite Radio Tuner (Factory Installed) Right Channel Audio Signal Circuit Inspection
Satellite Radio Tuner (Factory Installed) Right Channel Audio Signal Circuit Inspection
Satellite Radio Tuner (Factory Installed) Right Channel Audio Signal Circuit Inspection:
