Satellite Radio Tuner (Factory Installed) Communication Circuit Inspection

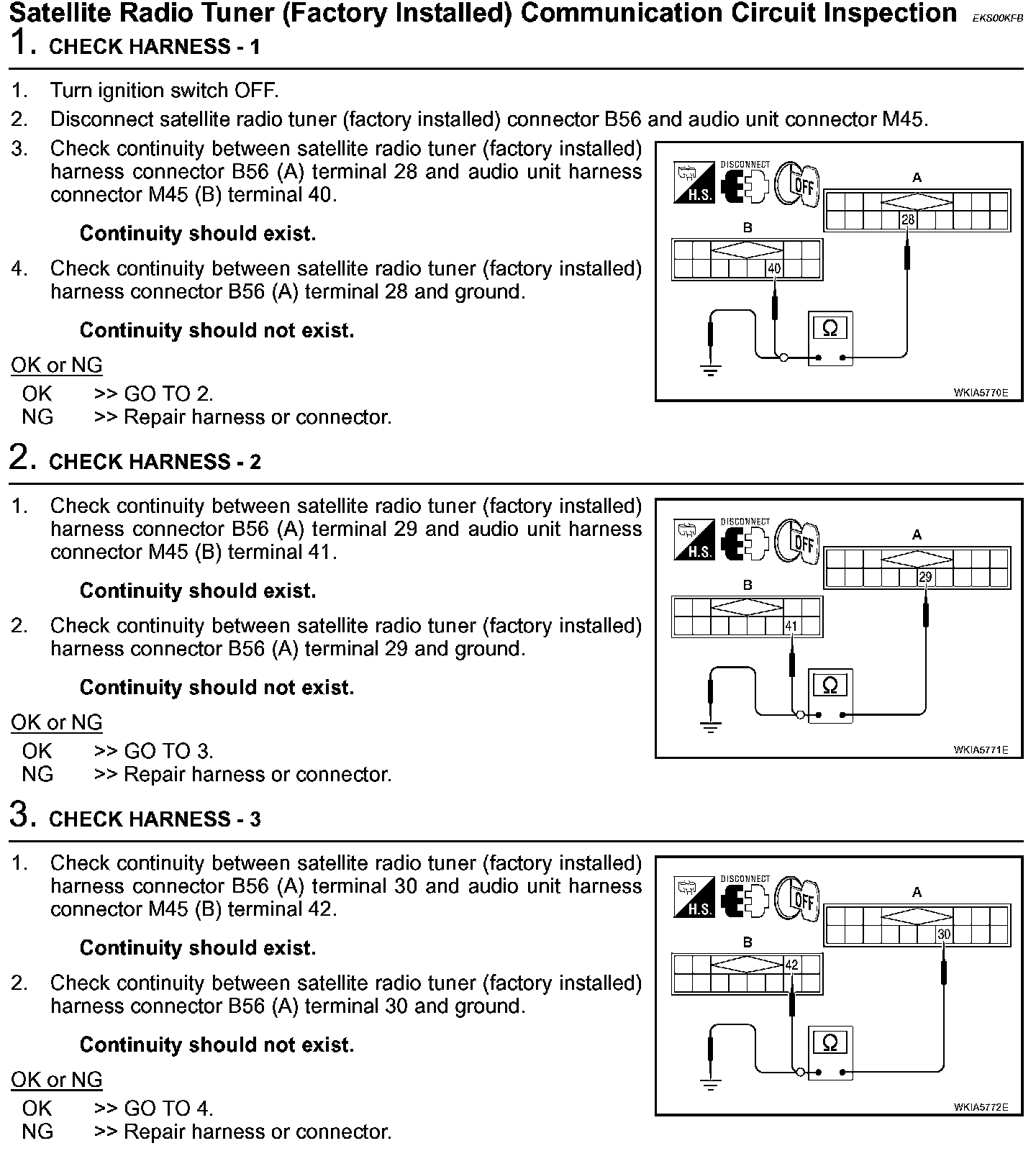

Satellite Radio Tuner (Factory Installed) Communication Circuit Inspection (Steps 1 - 3):

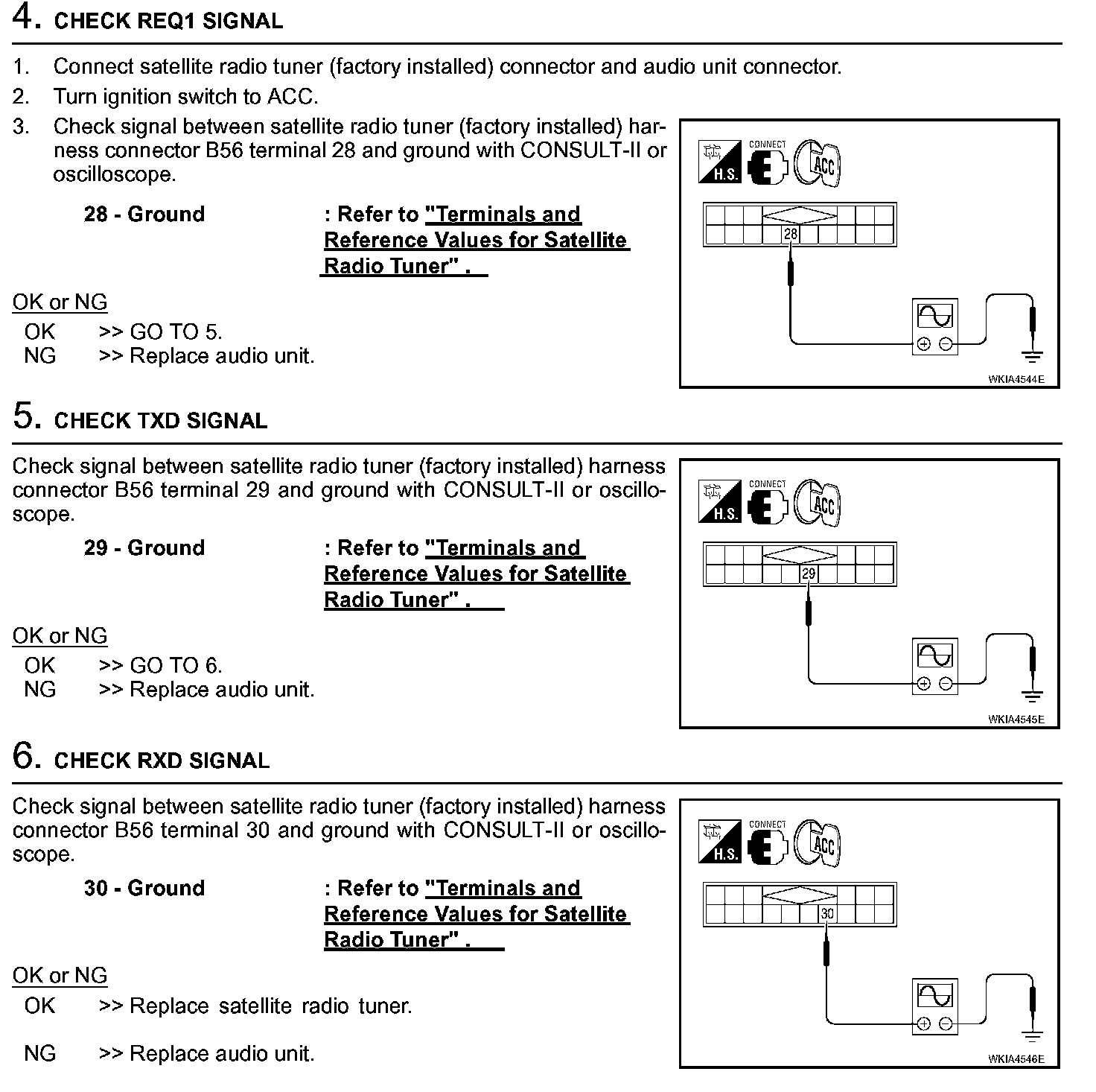

Satellite Radio Tuner (Factory Installed) Communication Circuit Inspection (Steps 4 - 6):
