Rear Speaker

REAR SPEAKER

Removal
1. Remove the rear parcel shelf finisher.

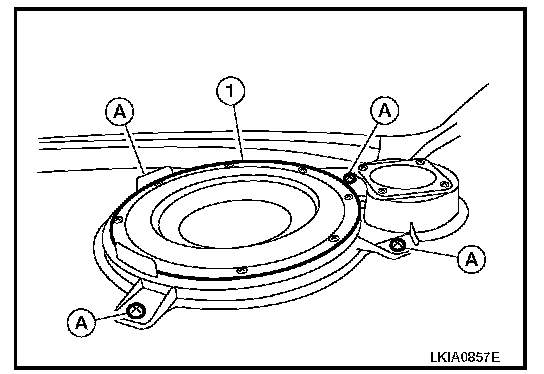

2. Remove the rear speaker screws (A), disconnect the rear speaker connector and remove the rear speaker (1).

Installation
Installation is in the reverse order of removal.
