Front Door Speaker

FRONT DOOR SPEAKER

Removal
1. Remove the front door finisher.

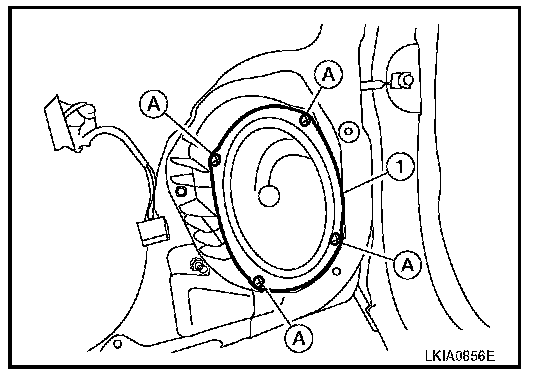

2. Remove the front door speaker screws (A), disconnect the front door connector and remove the front door speaker (1).

Installation
Installation is in the reverse order of removal.
