Steering Wheel Audio Control Switches

STEERING WHEEL AUDIO CONTROL SWITCHES

Removal
1. Remove the driver air bag module.

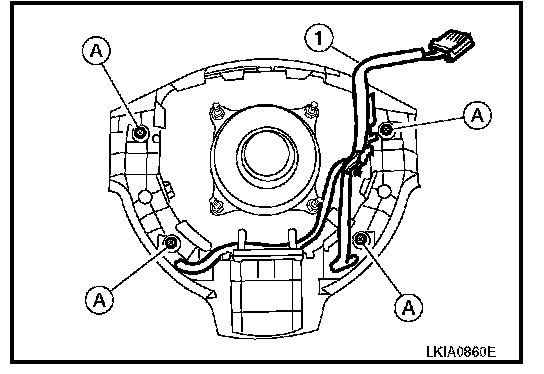

2. Remove the steering wheel audio control switch screws (A) and remove the steering wheel audio control switches (1).

Installation
Installation is in the reverse order of removal.
