Satellite Radio Tuner




SATELLITE RADIO TUNER

Removal

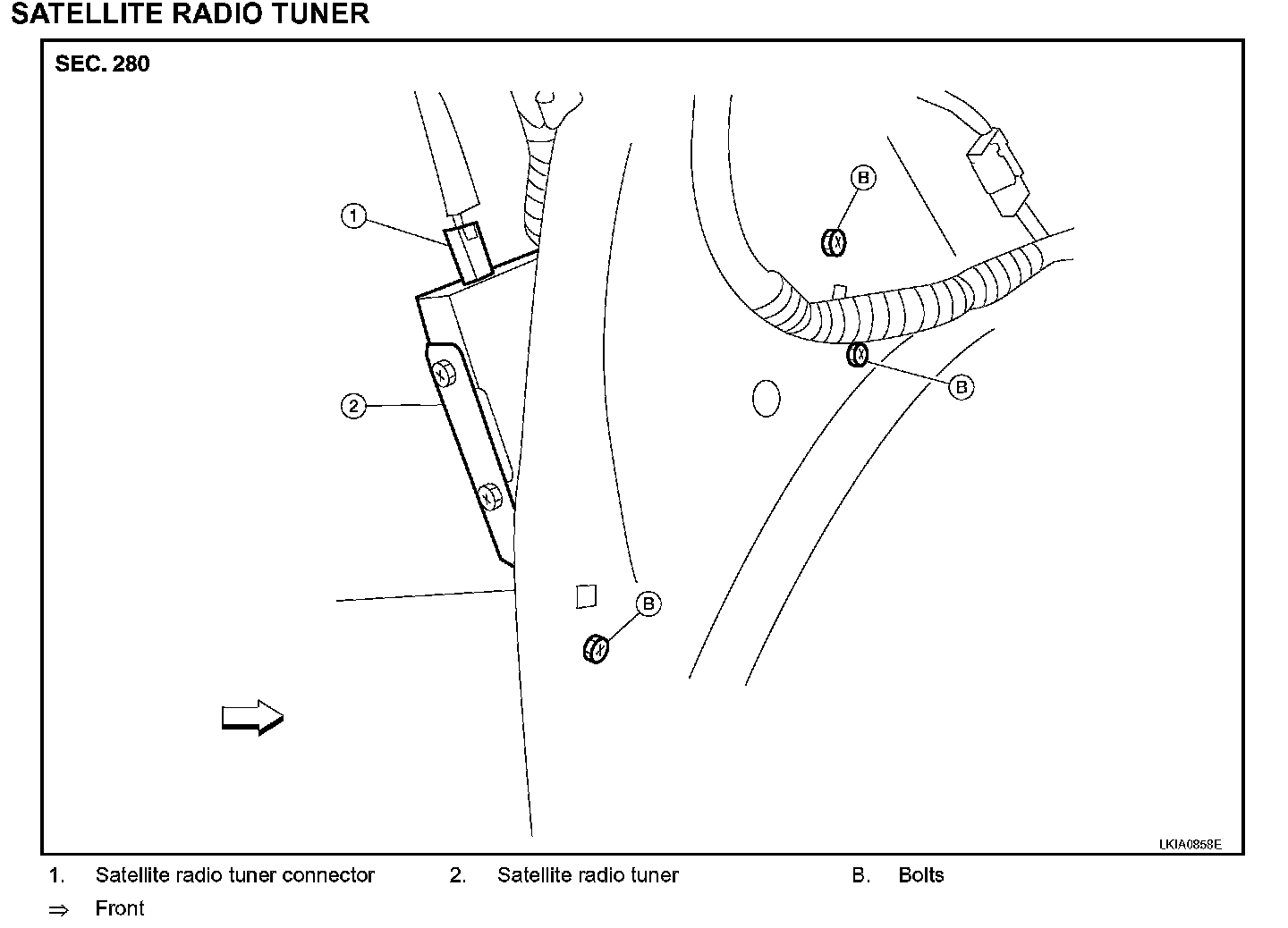

1. Remove the luggage side finisher (LH).
2. Remove the satellite radio tuner bolts.
3. Disconnect the satellite radio tuner connector and remove the satellite radio tuner.

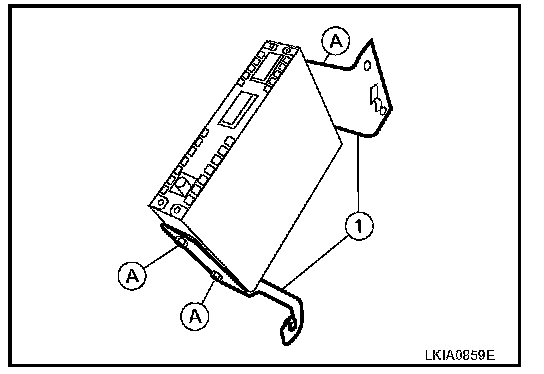

4. If necessary, remove the satellite radio tuner bracket bolts (A) and remove the satellite radio tuner brackets (1).

Installation
Installation is in the reverse order of removal.
