Audio Unit

Removal and Installation

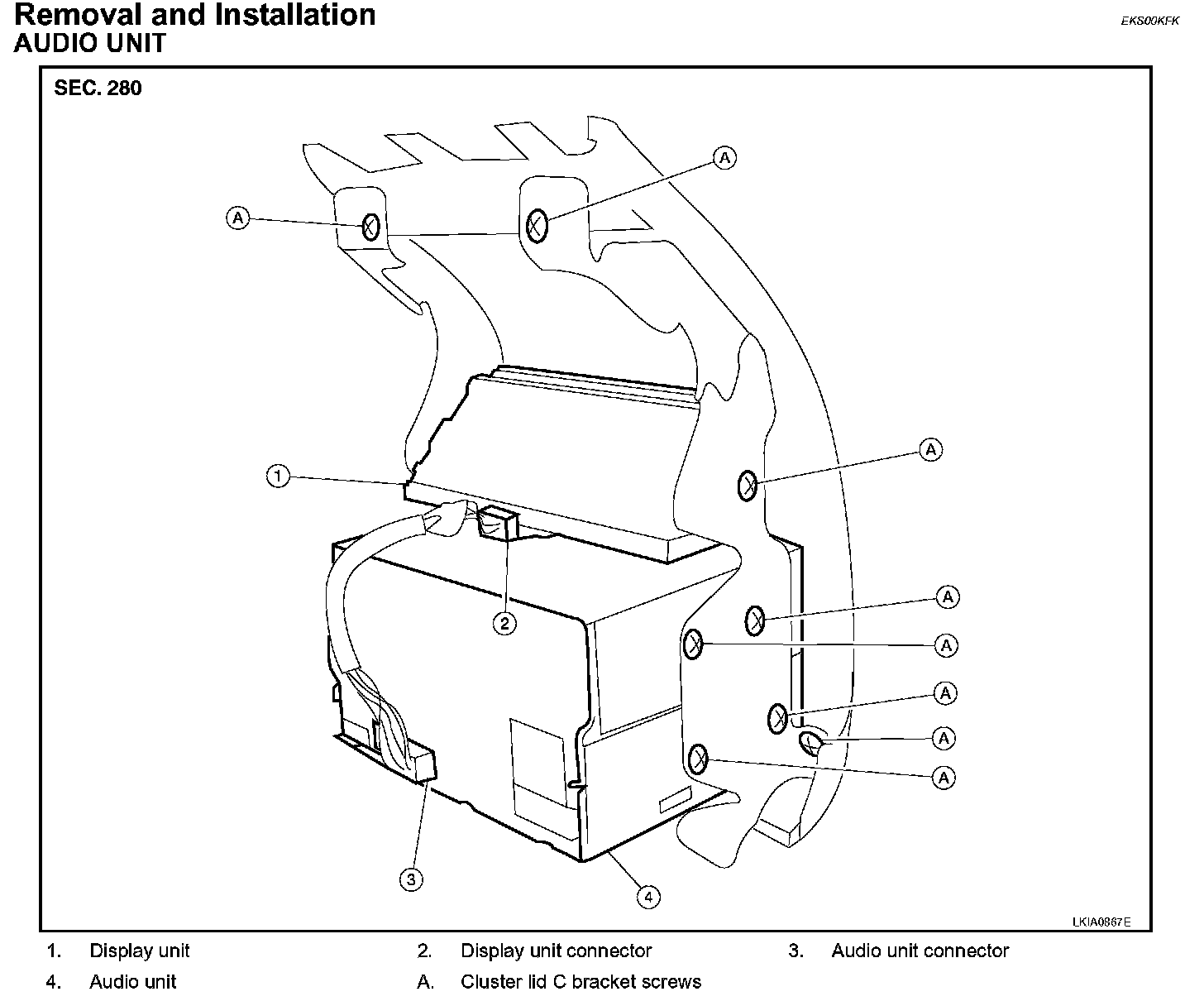

AUDIO UNIT

Removal
1. Remove the cluster lid C.
2. Remove the display unit to audio unit harness.
3. Remove the cluster lid C bracket screws.
4. Remove the audio unit and display unit (if equipped).

Installation
Installation is in the reverse order of removal.
