Terminals and Reference Values For Bluetooth Control Unit

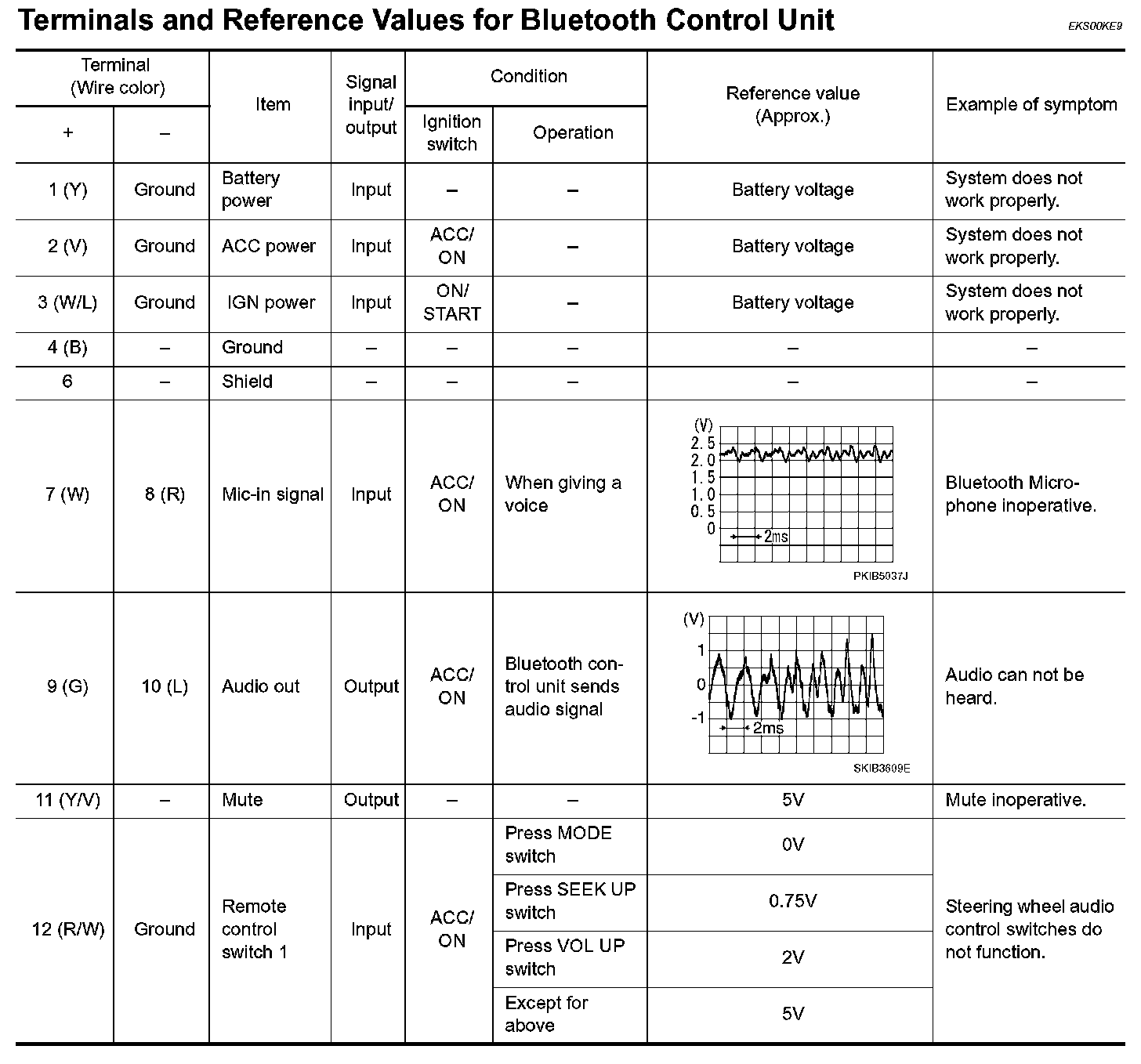

Terminals And Reference Values For Bluetooth Control Unit (Part 1):

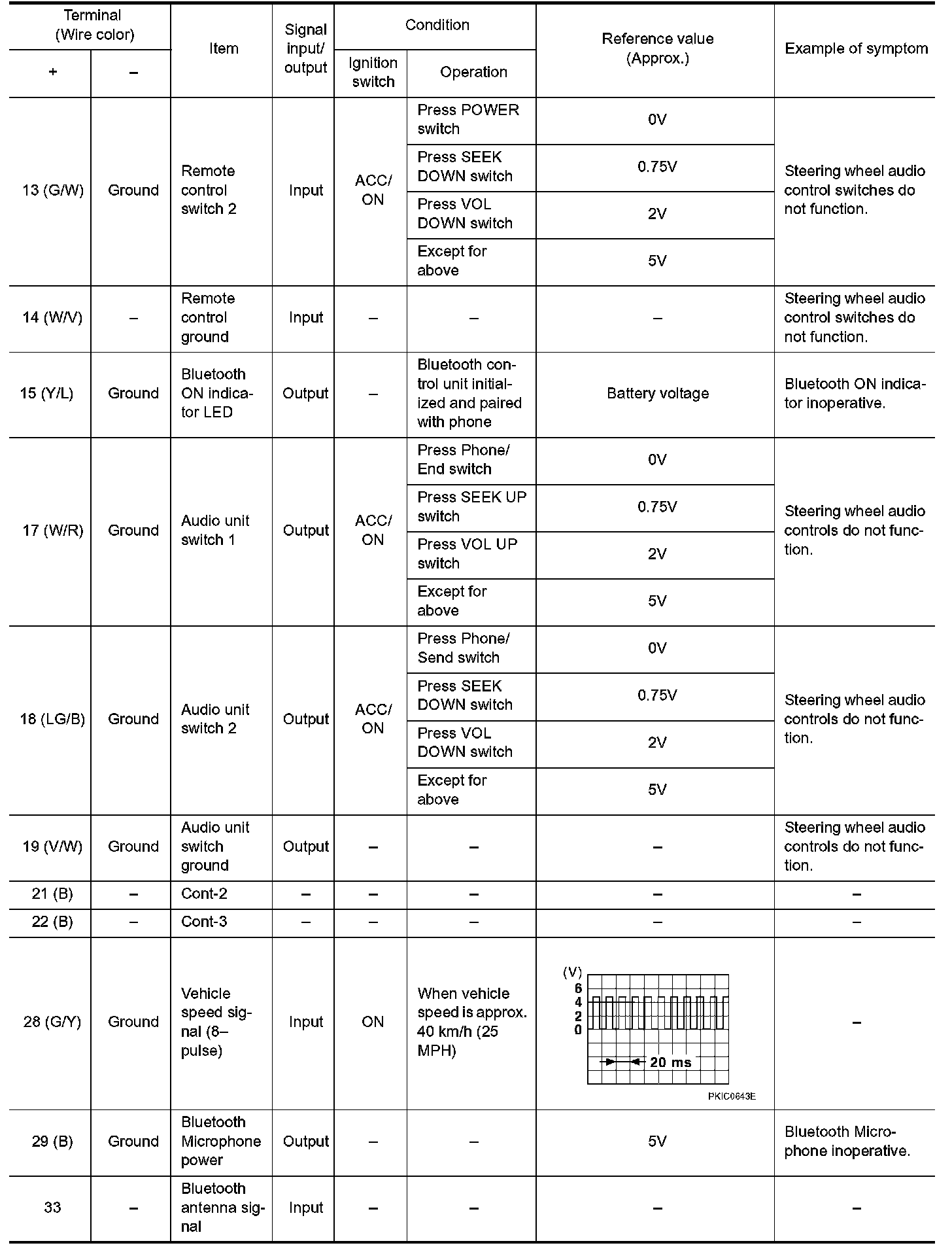

Terminals And Reference Values For Bluetooth Control Unit (Part 2):
