Cellular Phone: Service and Repair

Removal and Installation

BLUETOOTH CONTROL UNIT

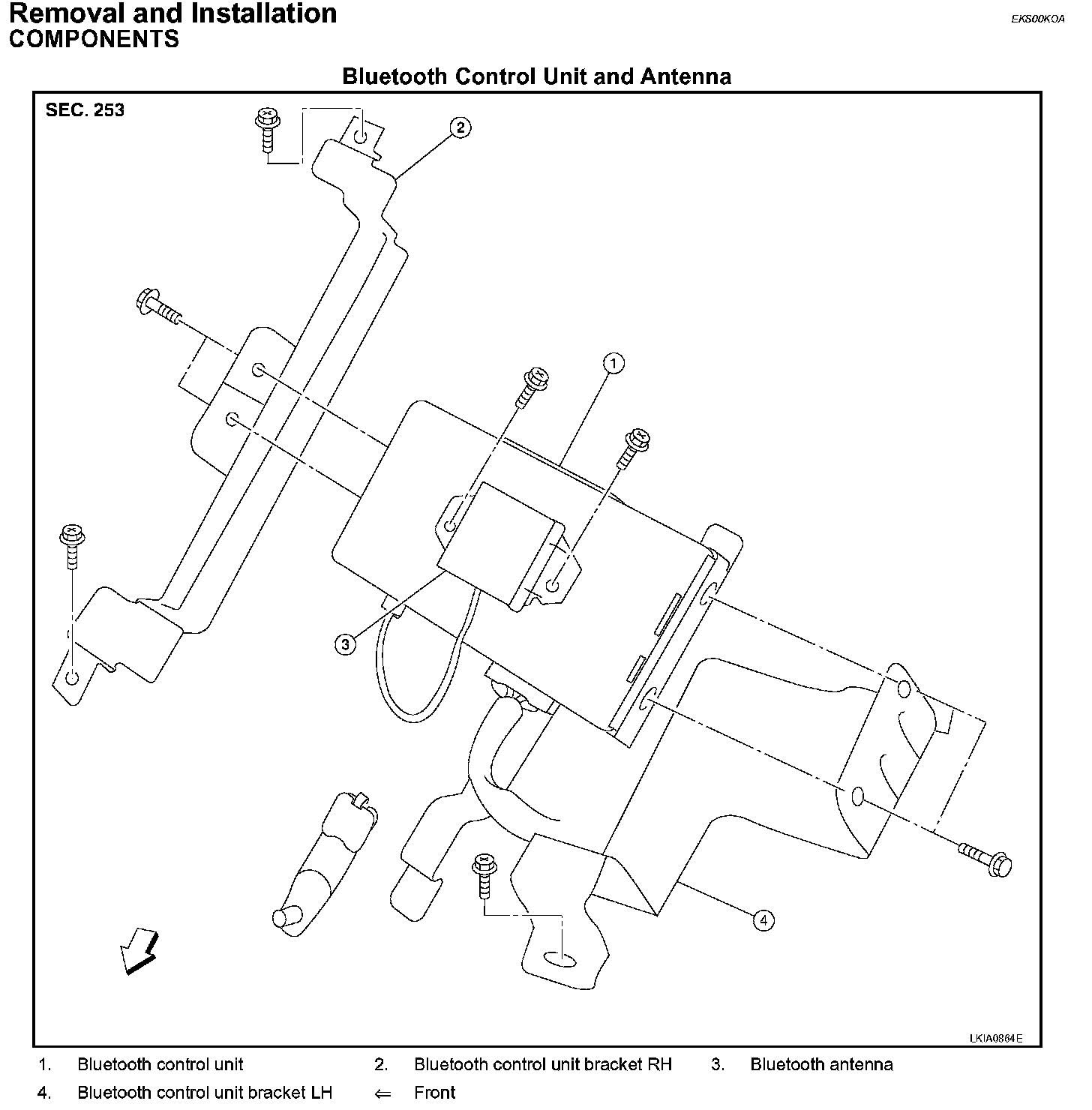

Components:

Removal
1. Slide the LH front seat toward the front to remove the bluetooth control unit bracket rear bolt.
2. Slide the LH front seat toward the rear to remove the bluetooth control unit bracket front bolts.
3. Disconnect Bluetooth control unit harness connector.
4. Remove Bluetooth control unit and bracket assembly.
5. Remove Bluetooth control unit bracket screws and remove the brackets.

Installation
Installation is in the reverse order of removal.
