Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Vehicle Security (Theft Warning) System >> Diagnostic Procedure 7

Diagnostic Procedure 7

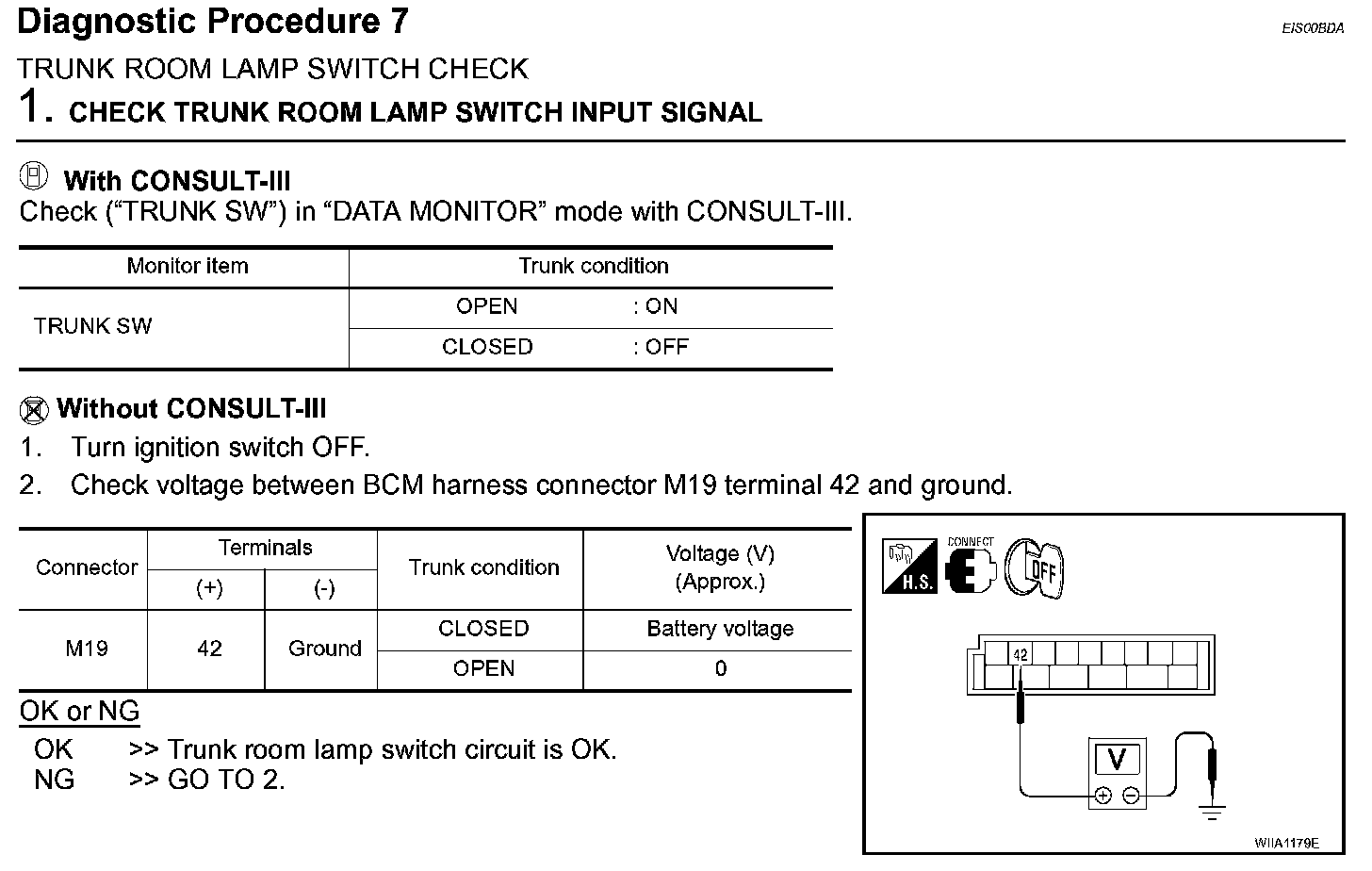

Diagnostic Procedure 7 (Step 1):

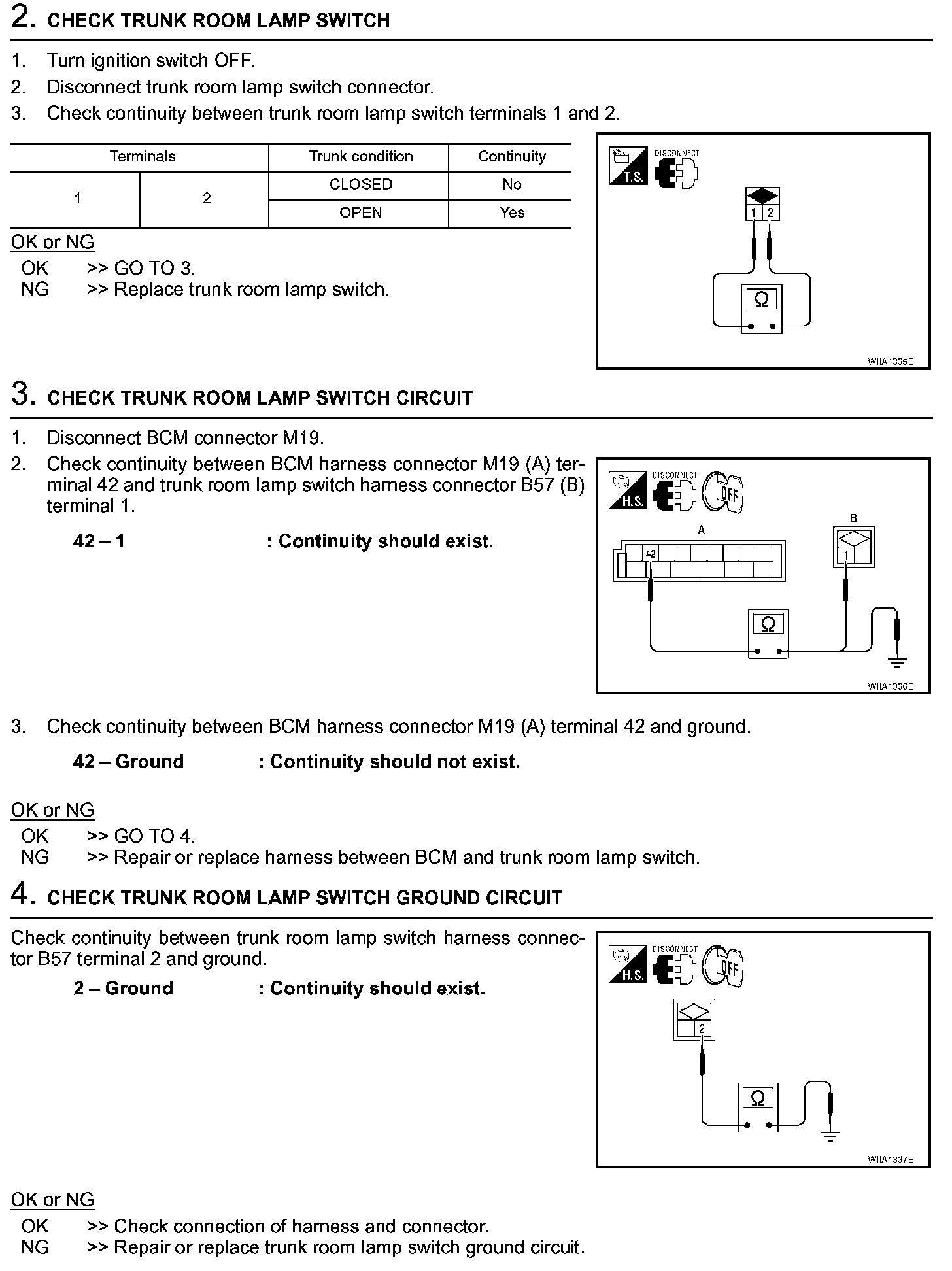

Diagnostic Procedure 7 (Steps 2 - 4):
