Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NATS (Nissan Anti-Theft System) >> Symptom Matrix Chart

Symptom Matrix Chart

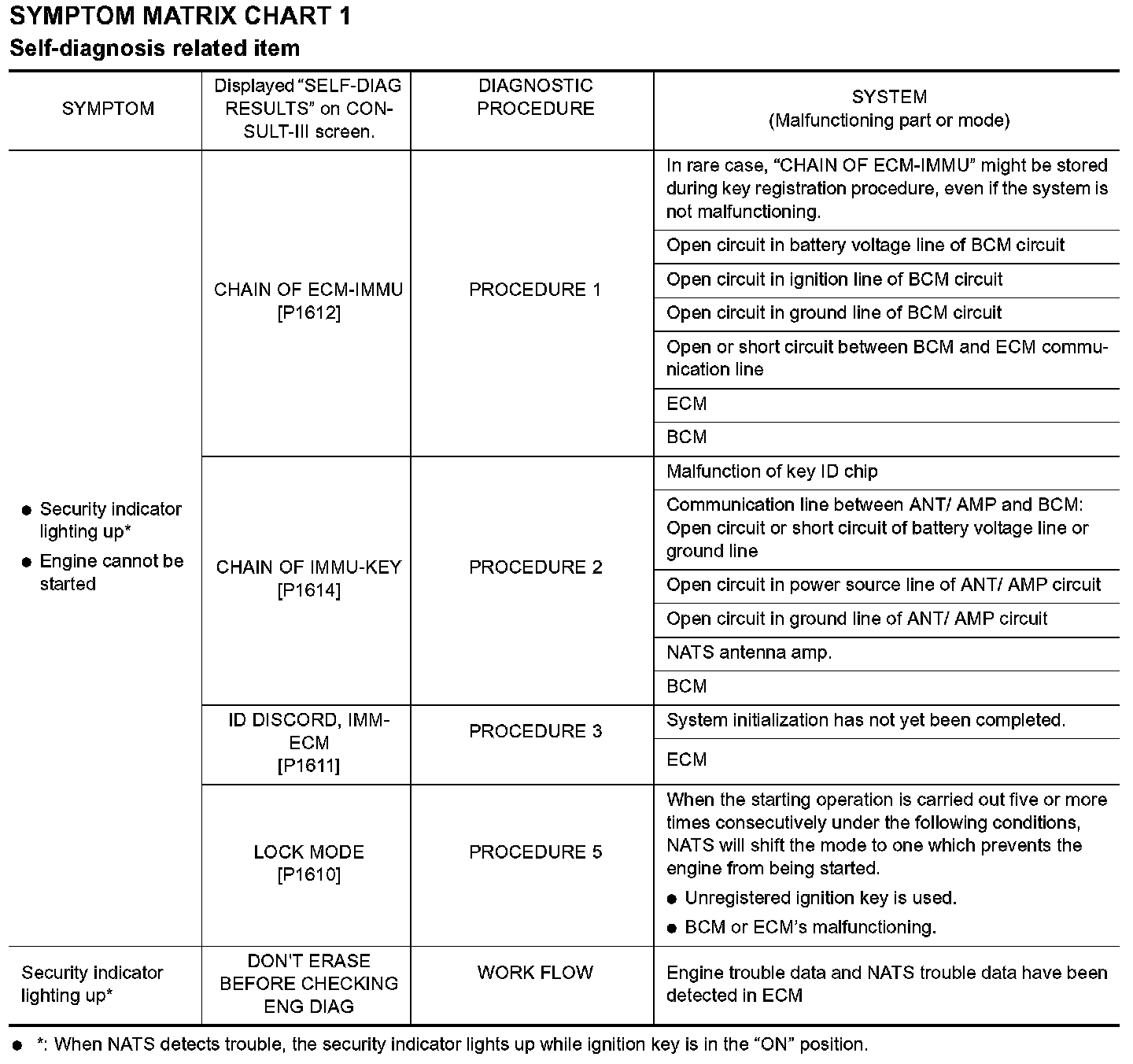

Symptom Matrix Chart 1:

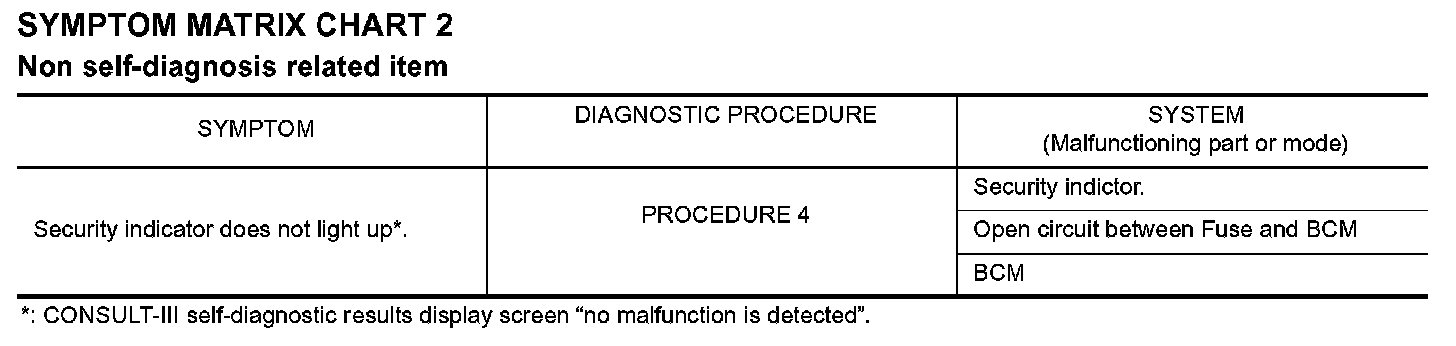

Symptom Matrix Chart 2:
