Diagnostic Strategies

Trouble Diagnosis

Work Flow:

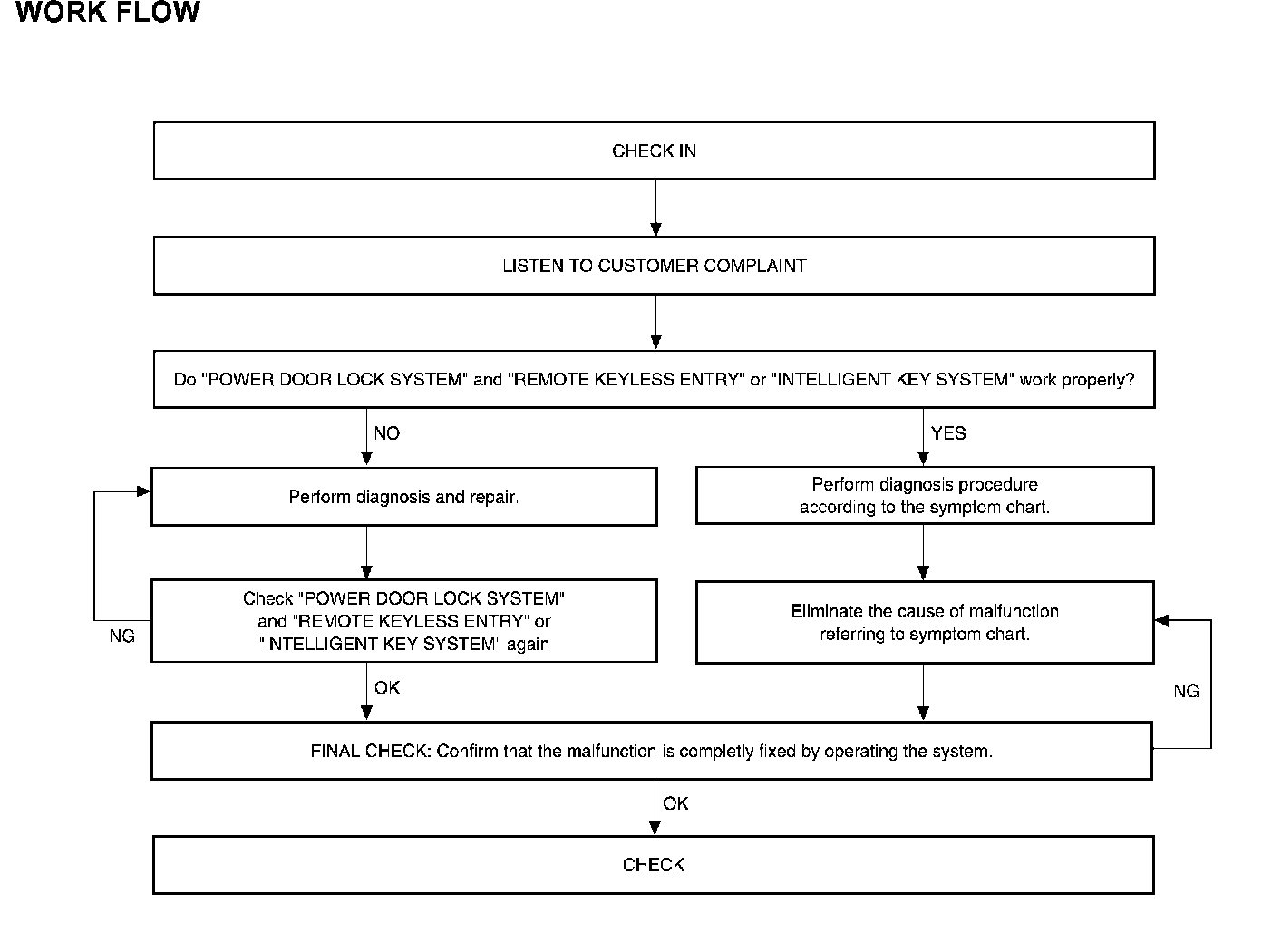

WORK FLOW
- For "POWER DOOR LOCK SYSTEM" diagnosis, refer to "POWER DOOR LOCK SYSTEM". Testing and Inspection
- For "INTELLIGENT KEY SYSTEM" diagnosis, refer to "INTELLIGENT KEY SYSTEM". Intelligent Key System
- For "REMOTE KEYLESS ENTRY SYSTEM" diagnosis, refer to "REMOTE KEYLESS ENTRY SYSTEM". Remote Keyless Entry
